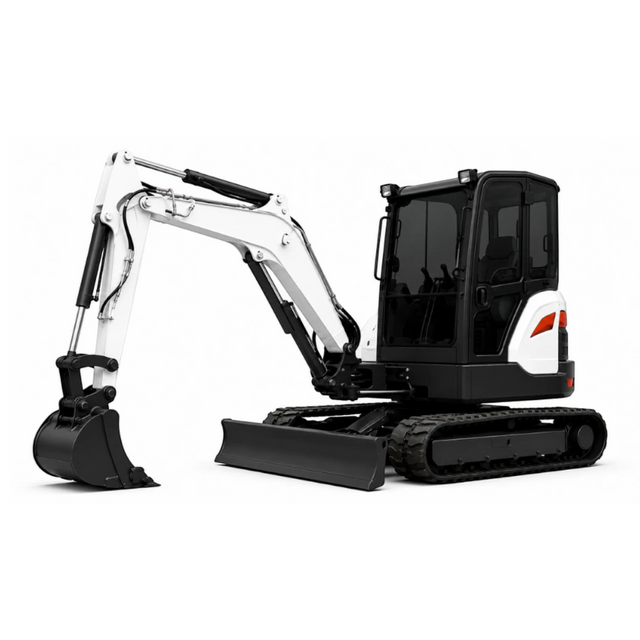

Bobcat X320D
Shop rubber tracks and available undercarriage parts for the Bobcat X320D Mini Excavator at low direct prices. Free shipping, fast nationwide delivery and 24-month rubber-track warranty protection make replacement simple and high value. Explore 1 tread option built around traction, ride quality, surface control and long-wear performance.
Shop compatible products
Sizing, tread and buying guide
The Bobcat X320D is cataloged in more than one track width — 230 / 250 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.
Which width fits your Bobcat X320D
- 250x72x45 — 250 mm (10") wide, 72 mm pitch, 45 links
- 230x48x66 — 230 mm (9") wide, 48 mm pitch, 66 links
These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.
Tread choice for the Bobcat X320D
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- MX — mixed and hard surfaces. A durable general-duty excavator tread
Undercarriage parts for the Bobcat X320D
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
- Drive sprocket — 6816203

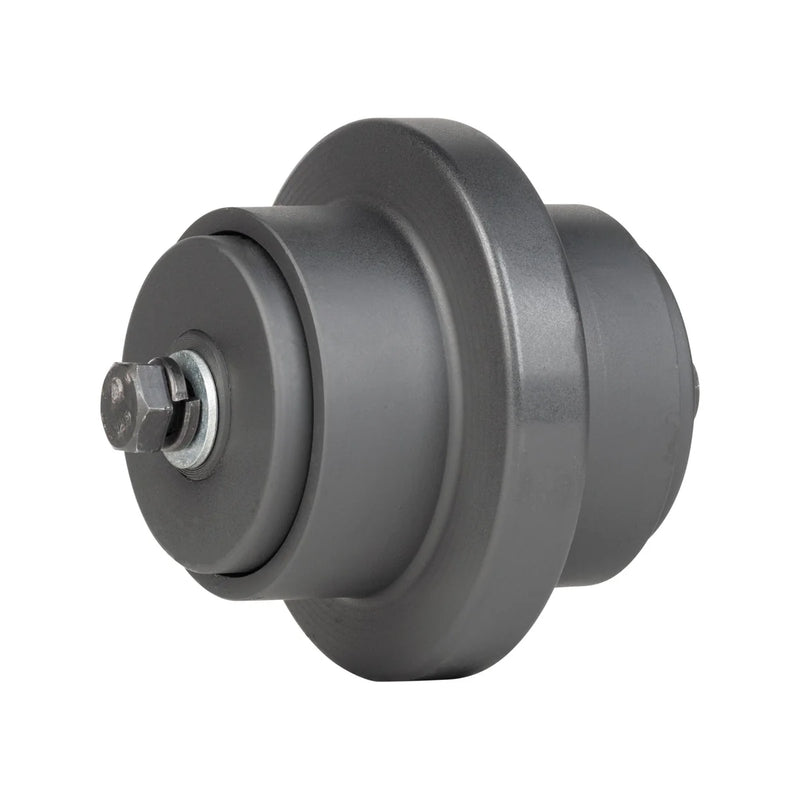

- Bottom roller — 7136983
How these wear
Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Bobcat X320D, it is the same belt:
- Bobcat 320
- Bobcat 320L
- Bobcat 321
- Bobcat 322D
- Bobcat 322G
- Bobcat 323
- Bobcat 324
- Bobcat E16
- Bobcat E17
- Bobcat E19
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
