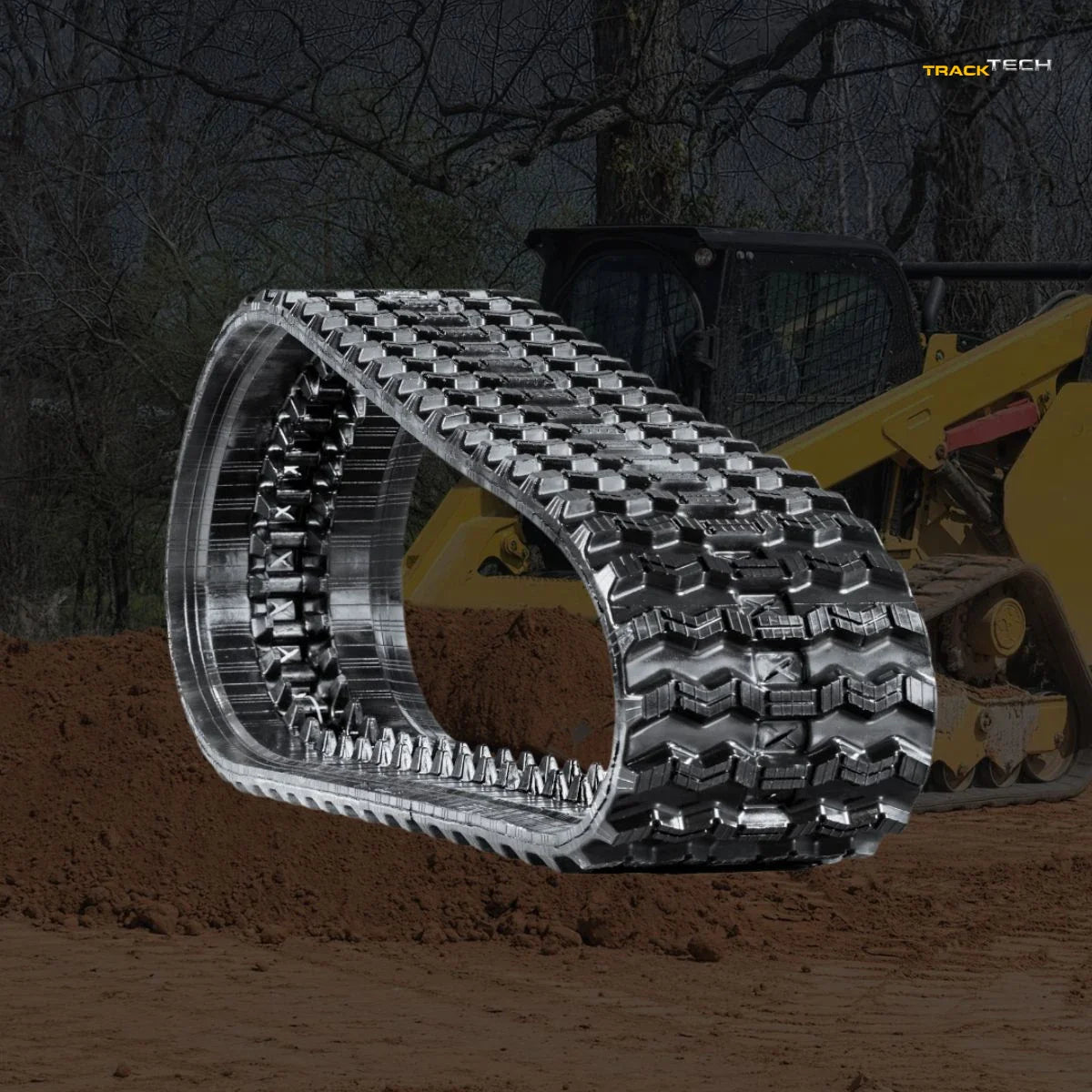

Cat 299D Rubber Tracks & Parts

The CAT 299D is cataloged in more than one track width — 400 / 450 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.

Which width fits your CAT 299D

450x86x60 — 450 mm (18") wide, 86 mm pitch, 60 links
400x86x60 — 400 mm (16") wide, 86 mm pitch, 60 links

These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.

Tread choice for the CAT 299D

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

All-Terrain — everything in between. A compromise tread when the machine moves between surfaces
Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces
Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
X-Terrain — the worst ground you have. Aggressive lugs for mud, slope and loose fill
Z-Max — soft and slippery ground. An aggressive zig-zag with more bite

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

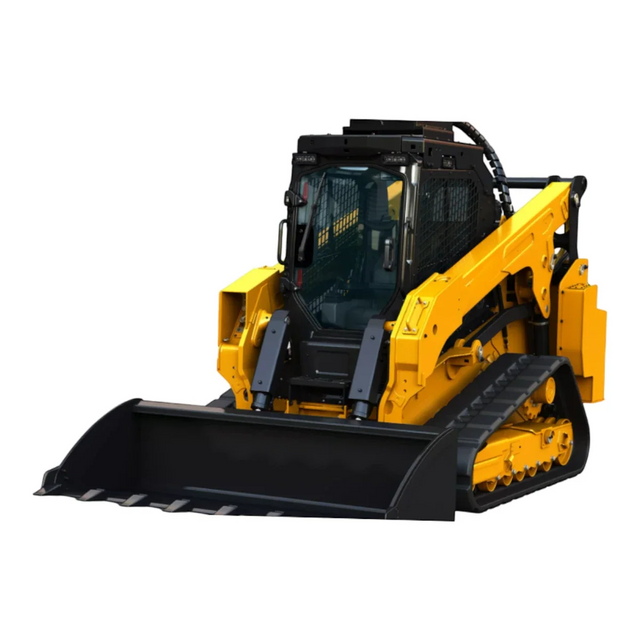

CAT 299D at a glance

Operating weight — 12,880 lb
Engine — 97 hp

Undercarriage parts for the CAT 299D

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

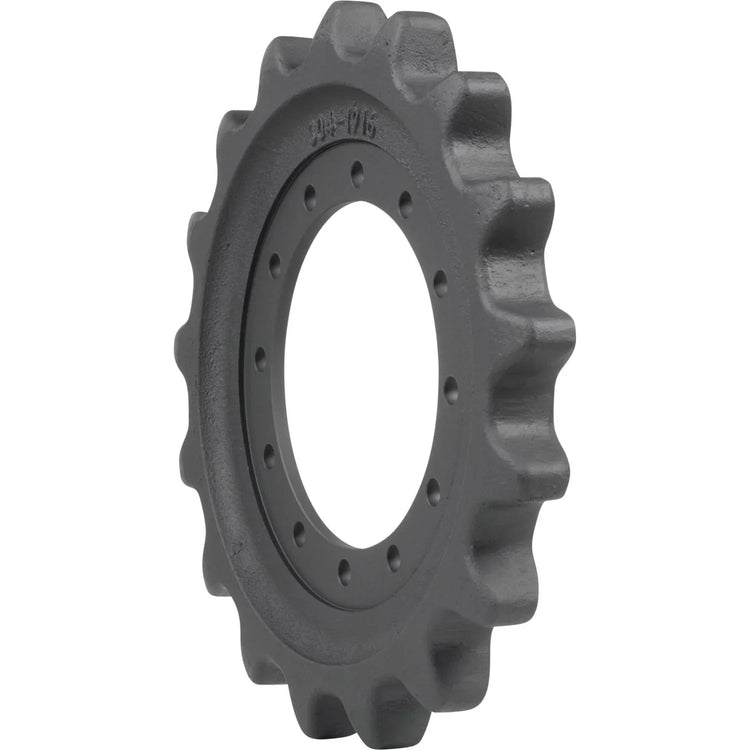

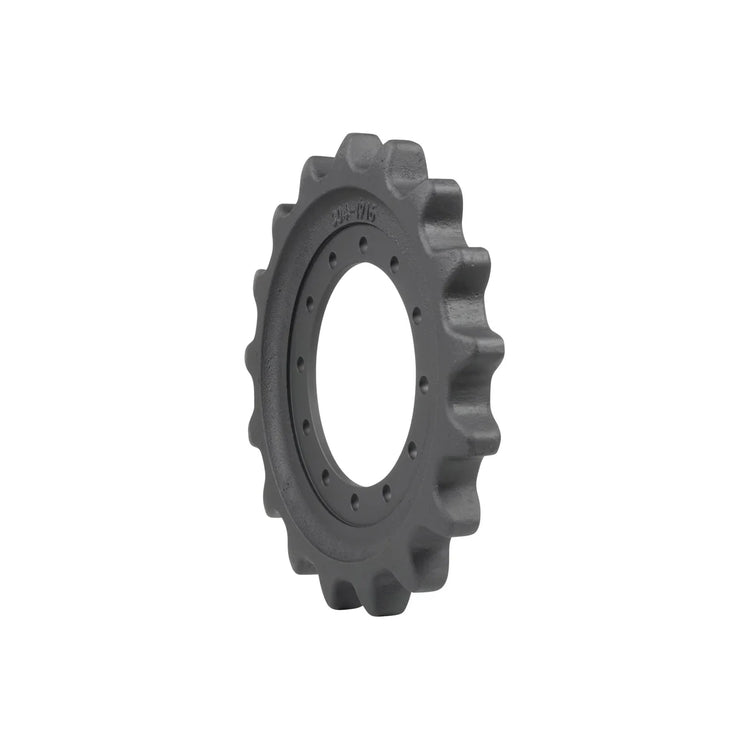

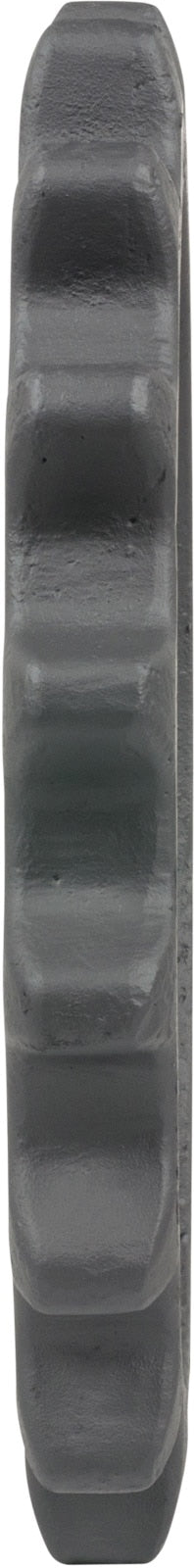

Drive sprocket — 304-1916

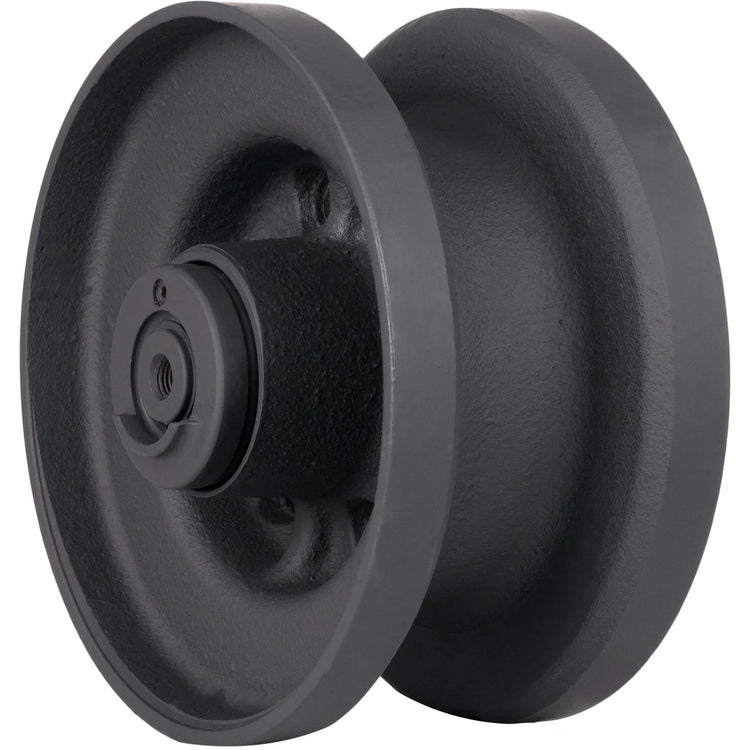

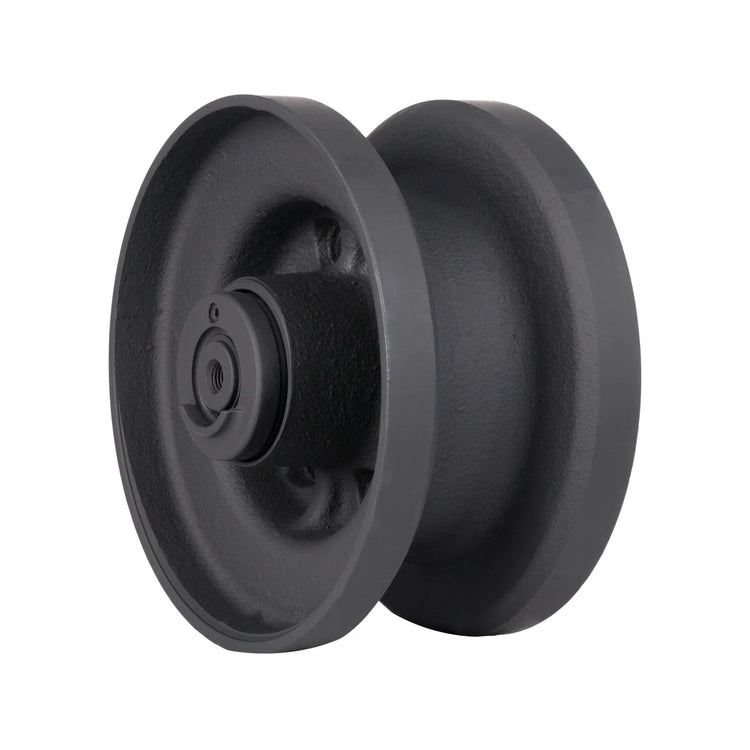

Front idler — 304-1878, 348-9647

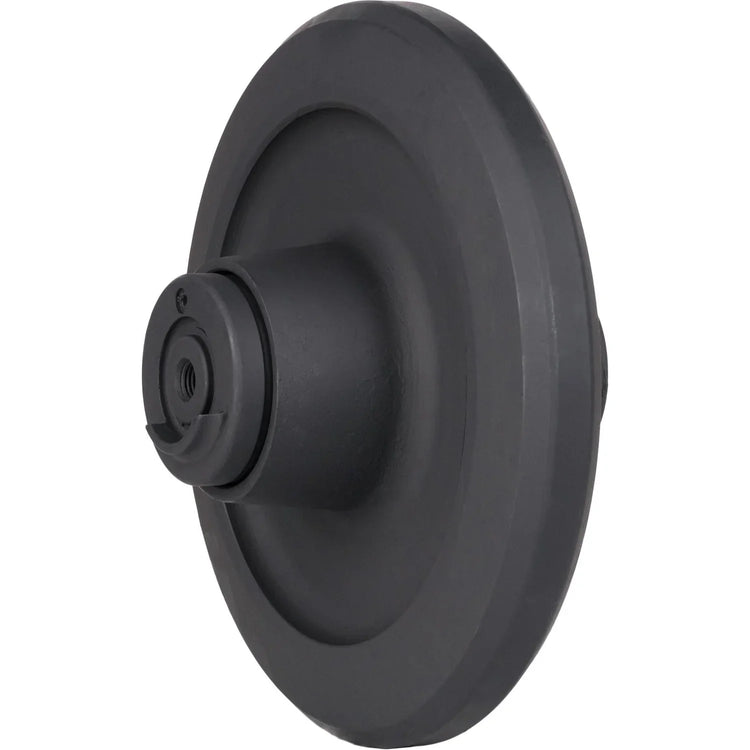

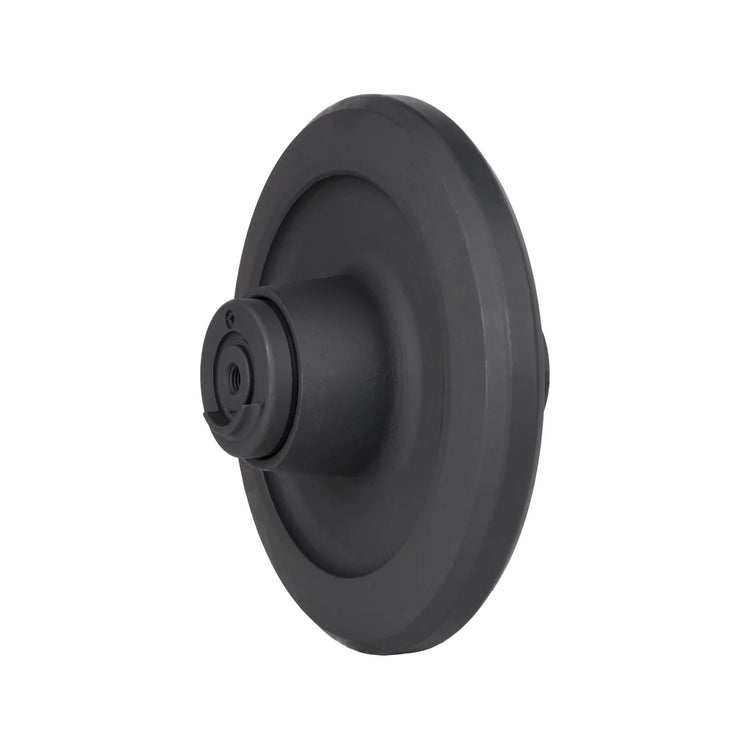

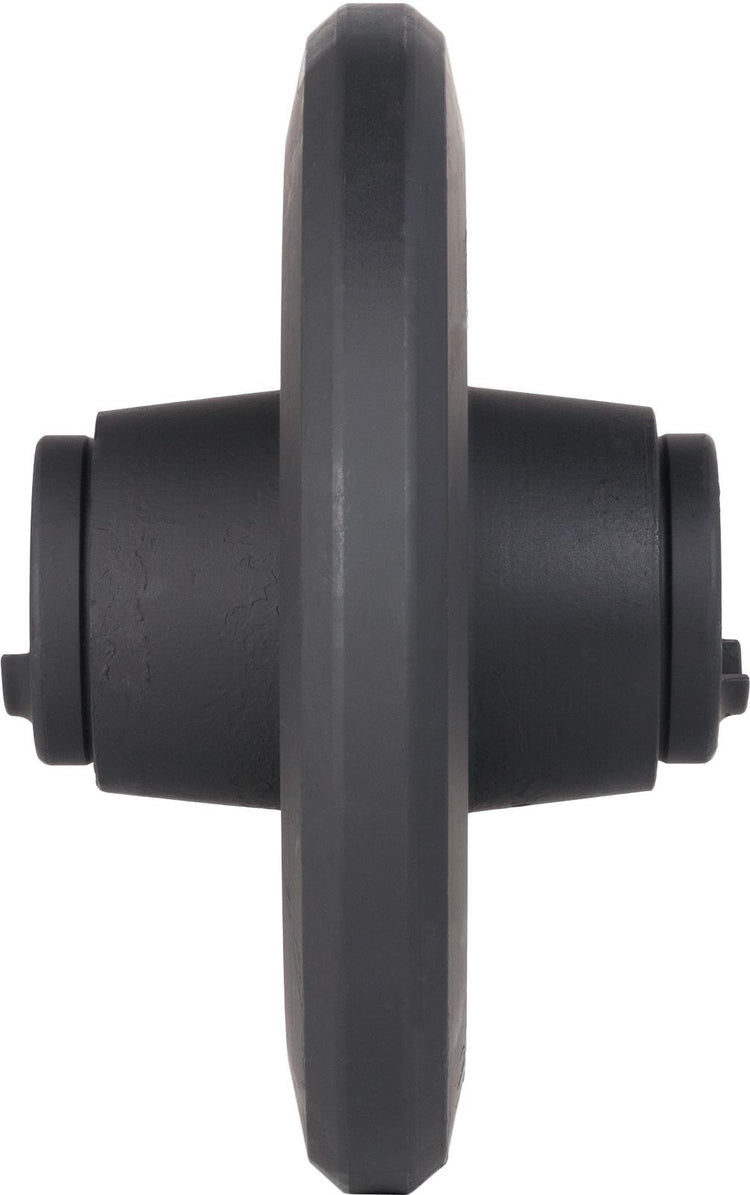

Rear idler — 304-1894

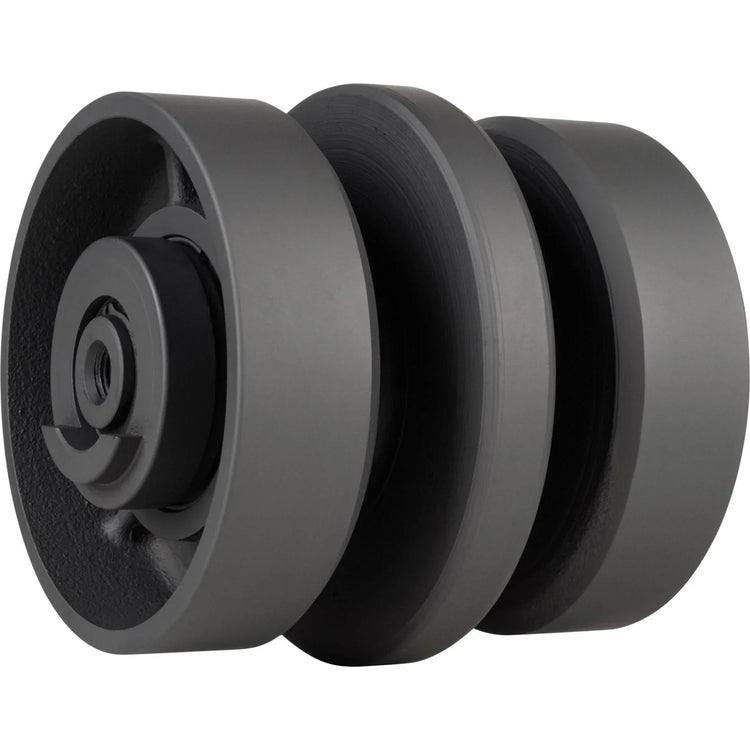

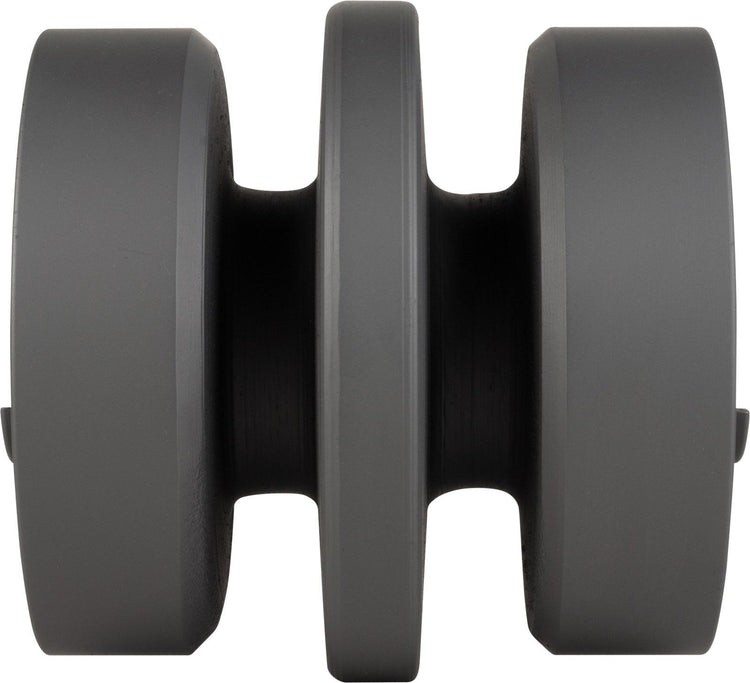

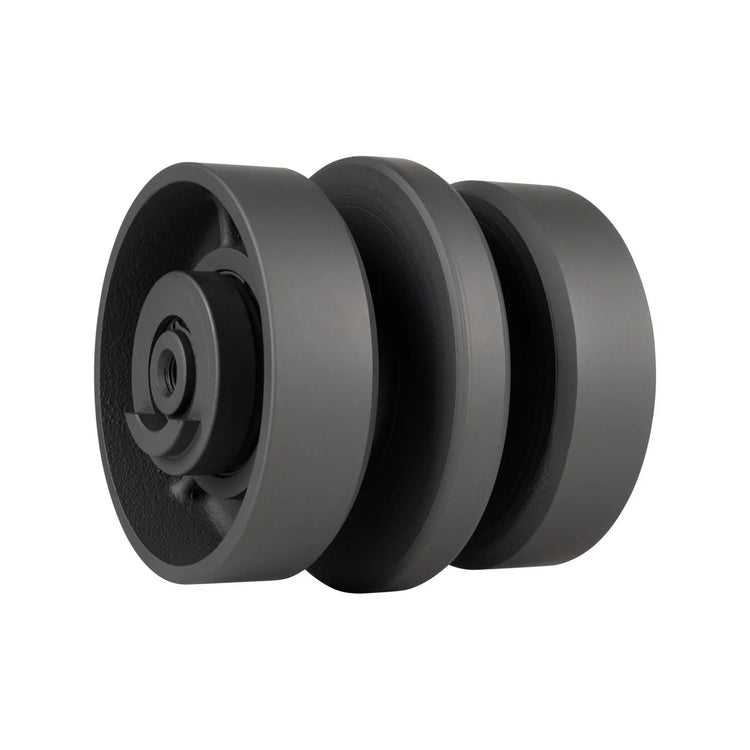

Bottom roller — 304-1890
Undercarriage kit

Where more than one part number is listed, CAT changed that component across serial ranges. Match the number stamped on the part you are replacing, or send us the machine serial and we will pick it.

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the CAT 299D, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More CAT undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

Track sizes

Heavy-Duty Rubber Tracks for 299D

CAT 299D 450x86x60 All-Terrain
- Heavy Duty | 450x86x60
- All-Terrain Grip
- Smooth Ride
- Cut Resistant
$1,800.50$1,782.50
In stock

Add to quote

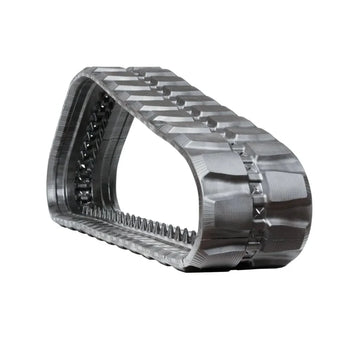

CAT 299D 450x86x60 Staggered-Block
- Heavy Duty | 450x86x60
- Smooth Ride
- Easy Turning
- Cut Resistant
$1,579.50$1,379.00
In stock

Add to quote
CAT 299D 450x86x60
- Heavy Duty | 450x86x60
$1,699.00$1,499.00
In stock

Add to quote
CAT 299D 450x86x60
- Heavy Duty | 450x86x60
$1,699.00$1,499.00
In stock

Add to quote

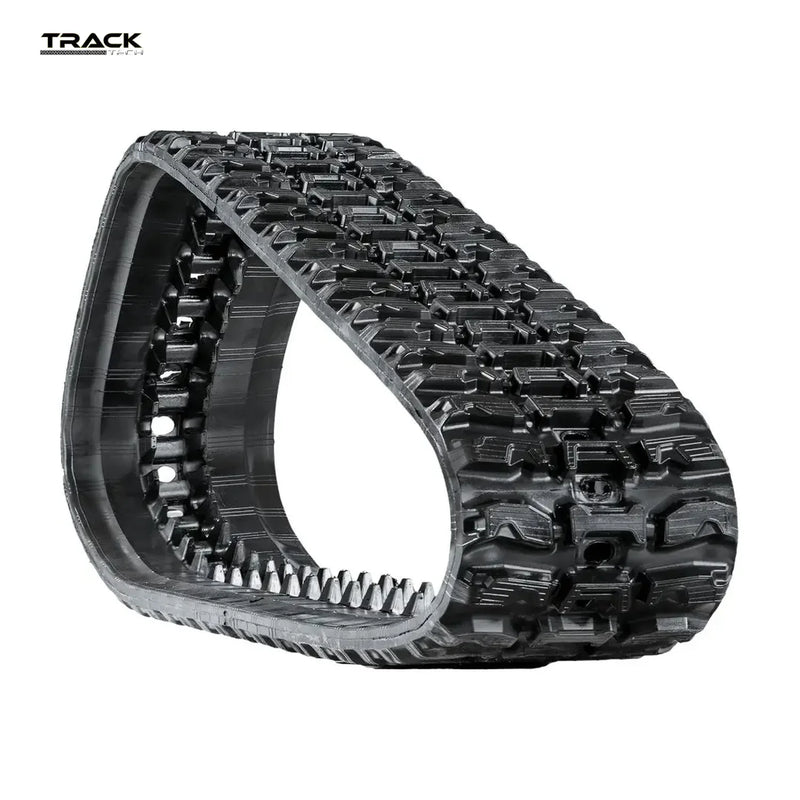

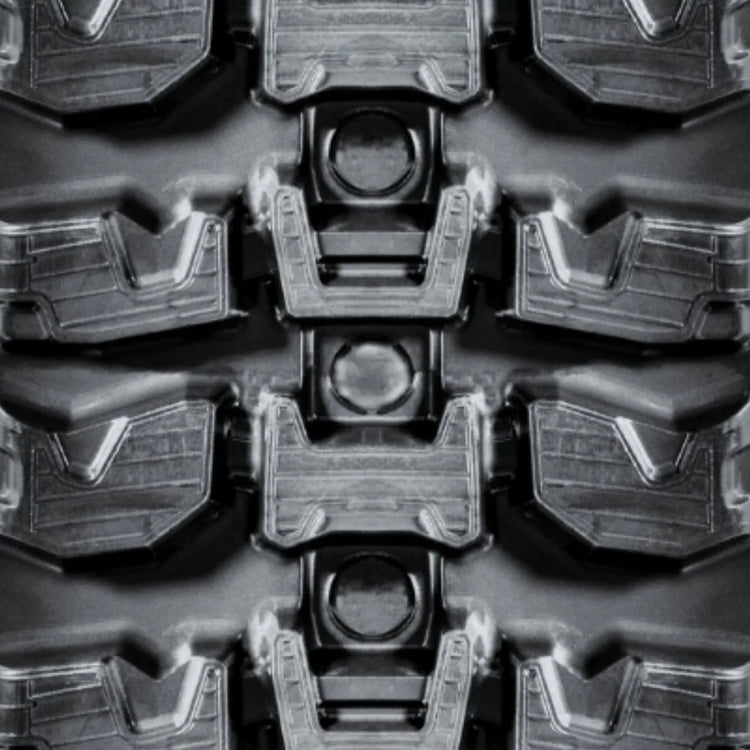

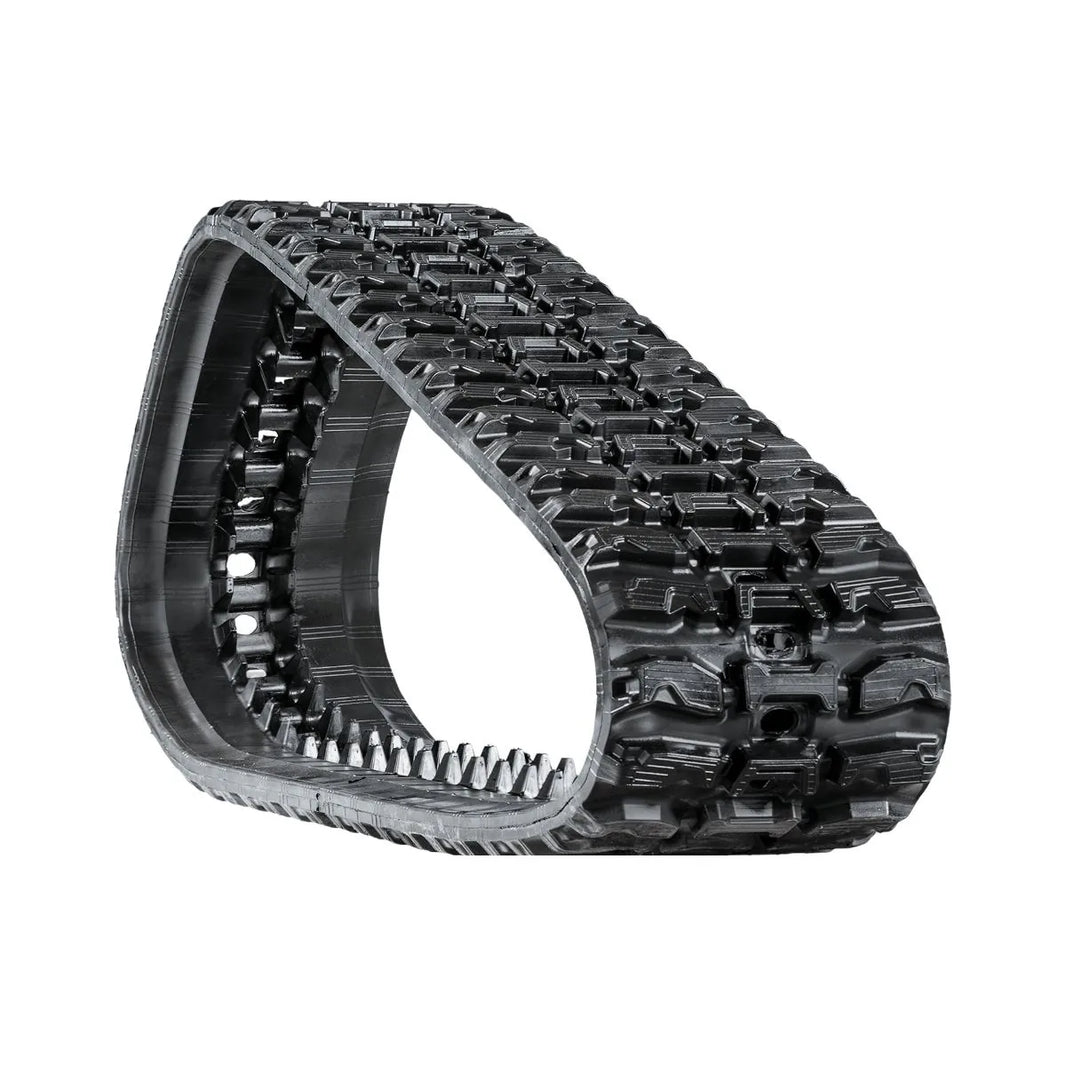

CAT 299D 450x86x60 X-Terrain
- Heavy Duty | 450x86x60
- Forestry Bite
- Core Defense
- Max Traction
$1,605.50$1,589.45
In stock

Add to quote
CAT 299D 450x86x60 Z-Max
- Heavy Duty | 450x86x60
- Extreme Grip
- Side-Hill Stability
- Tear Resistant
$1,625.00$1,608.75
In stock

Add to quote
CAT 299D 450x86x60
- Heavy Duty | 450x86x60
$1,649.00$1,449.00
In stock

Add to quote

CAT 299D 450x86x60 Vortech
- Bridgestone | 450x86x60
Request quote
Add to quote
CAT 299D 450x86x60 Staggered-Block
- Bridgestone | 450x86x60
- Smooth Ride
- Easy Turning
- Cut Resistant
$2,394.60$2,153.15
In stock

Add to quote
CAT 299D 450x86x60 C-Block
- Bridgestone | 450x86x60
- Maximum Durability
- Anti-Vibration
- Cut & Tear Resistant
$2,394.60$2,153.15
In stock

Add to quote

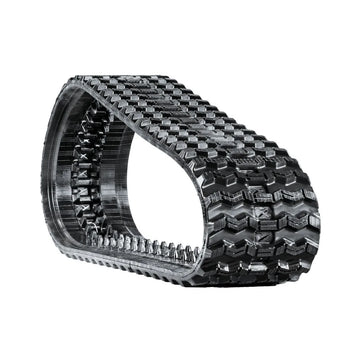

CAT 299D 450x86x60 Zig-Zag
- Bridgestone | 450x86x60
- High Traction
- Self-Cleaning
- Versatile Performance
$2,284.10$2,054.05
In stock

Add to quote
CAT 299D 450x86x60 Multi-Bar
- Bridgestone | 450x86x60
- Max Pushing Power
- Deep Mud Grip
- Self-Cleaning
$2,394.60$2,153.15
In stock

Add to quote

Which tread fits CAT 299D?

Pick a tread for your jobsite — then buy above.

+ Recommended surface- Not the primary use— Application dependent

Pattern	Best Use	Key Traits	Road	Clay	Gravel	Mulch	Mud	Turf	Action
All-TerrainHard-surface control	Precision machine control, easy turning, and extended life on hard surfaces. Preferred by asphalt and concrete contractors working on road and gravel.	Precision Machine Control Easy Turning Extended Life	+	-	+	-	-	-	View
Staggered BlockSmooth turning	A smoother-riding tread option with easier turning and dependable cut resistance on mixed surfaces.	Smooth Ride Easy Turning Cut Resistant	+	-	+	-	-	+	View
C-BlockHeavy-duty durability	Built for maximum durability on abrasive jobsites, hard-pack surfaces, demolition debris, and mixed gravel.	Maximum Durability Anti-Vibration Cut & Tear Resistant	+	+	+	-	-	-	View
Multi-BarPushing power and mud grip	Designed for pushing power, deep mud grip, and clean-out performance when traction matters more than smooth finish.	Max Pushing Power Deep Mud Grip Self-Cleaning	-	+	-	+	+	+	View
X-TerrainMulching / Land Clearing	Forestry, mulching, and extreme land clearing — fortified core defense and maximum bite for severe off-road environments.	Forestry Bite Core Defense Max Traction	-	+	+	+	+	-	View
Z-MaxExtreme grip	Aggressive tread geometry for extreme grip, side-hill stability, and tear resistance in rough conditions.	Extreme Grip Side-Hill Stability Tear Resistant	-	+	+	-	+	-	View
Zig-ZagAll-season traction	A versatile all-season pattern with high traction, self-cleaning channels, and balanced ride quality.	High Traction Self-Cleaning Versatile Performance	+	+	+	+	+	+	View
V VortechMachine-matched track option	Available on this machine hub. Review the track option above for current price and availability.	Governed Fitment Machine-Matched Current Commerce Data	—	—	—	—	—	—	View

100% Virgin Rubber
Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.
Continuous Steel Cords
Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.
Drop-Forged Links
Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.
Corrosion Resistant
The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.
Reinforced Sidewalls
Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.
Low-Vibration Tread
Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.
