Kubota U25

Shop rubber tracks and available undercarriage parts for the Kubota U25 Mini Excavator at low direct prices. Free shipping, fast nationwide delivery and 24-month rubber-track warranty protection make replacement simple and high value. Explore 1 tread option built around traction, ride quality, surface control and long-wear performance.

Shop compatible products

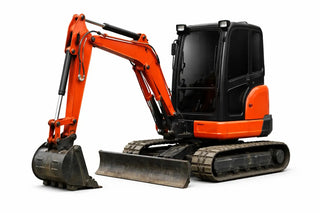

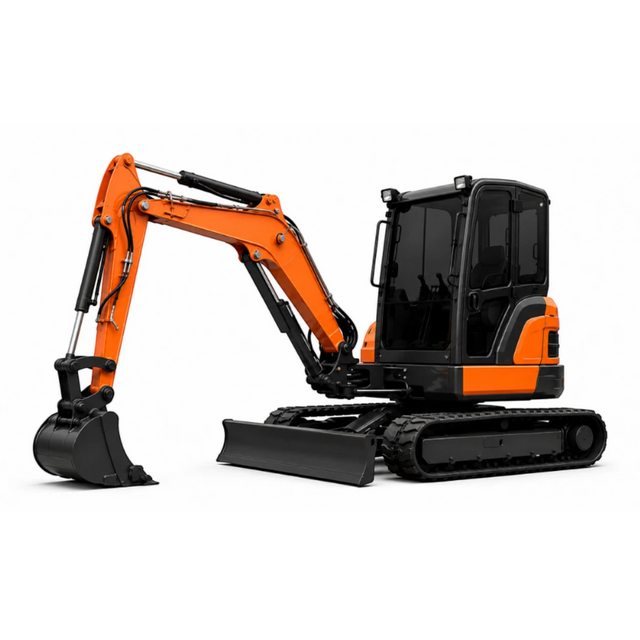

Kubota U25 mini excavator

All compatible parts for Kubota U25

10 products

Showing 1 - 10 of 10 products

10 compatible products
Save $151.05
300x52.5Nx80 Directional Rubber Track300x52.5Nx80 Directional Rubber Track – tread close-up
300x52.5x80 Rubber Track | Directional
Sale price$1,006.95 Regular price$1,158.00
$1,006.95 each
In stock
Save $220.00
bridgestone-300x53x80-mx hero12" Bridgestone Extreme Duty MX Pattern Rubber Track (300x53x80)
300x53x80 Bridgestone Rubber Track | MX
Sale price$1,409.00 Regular price$1,629.00
$1,409.00 each
In stock
Save $200.00
300x52.5Nx80 Bridgestone Rubber Track | MX300x52.5Nx80 Bridgestone Rubber Track | MX – view 2
300x52.5x80 Bridgestone Rubber Track | MX
Sale price$1,329.00 Regular price$1,529.00
$1,329.00 each
In stock
Save $153.67
300x53x80 Mx Rubber Track300x53x80 Mx Rubber Track – tread close-up
300x53x80 Rubber Track | MX
Sale price$1,013.00 Regular price$1,166.67
$1,013.00 each
In stock
Heavy Duty Carrier Roller | Part #RC411-21903Heavy Duty Carrier Roller | Part #RC411-21903 – view 2
Heavy Duty Front Idler | Part #RC348-21302Heavy Duty Front Idler | Part #RC348-21302 – view 2
Save $6.60
Kubota U25 Sprocket Part #RB511-14432 undercarriage replacement part for compact construction equipment
Heavy Duty Sprocket | Part #RB511-14432
Sale price$165.00 Regular price$171.60
Sold out
Request a quote
Save $6.90
Heavy Duty Sprocket | SPRC417-14430Heavy Duty Sprocket | SPRC417-14430 – view 2
Heavy Duty Sprocket | Part #RC417-14430
Sale price$172.50 Regular price$179.40
Sold out
Request a quote

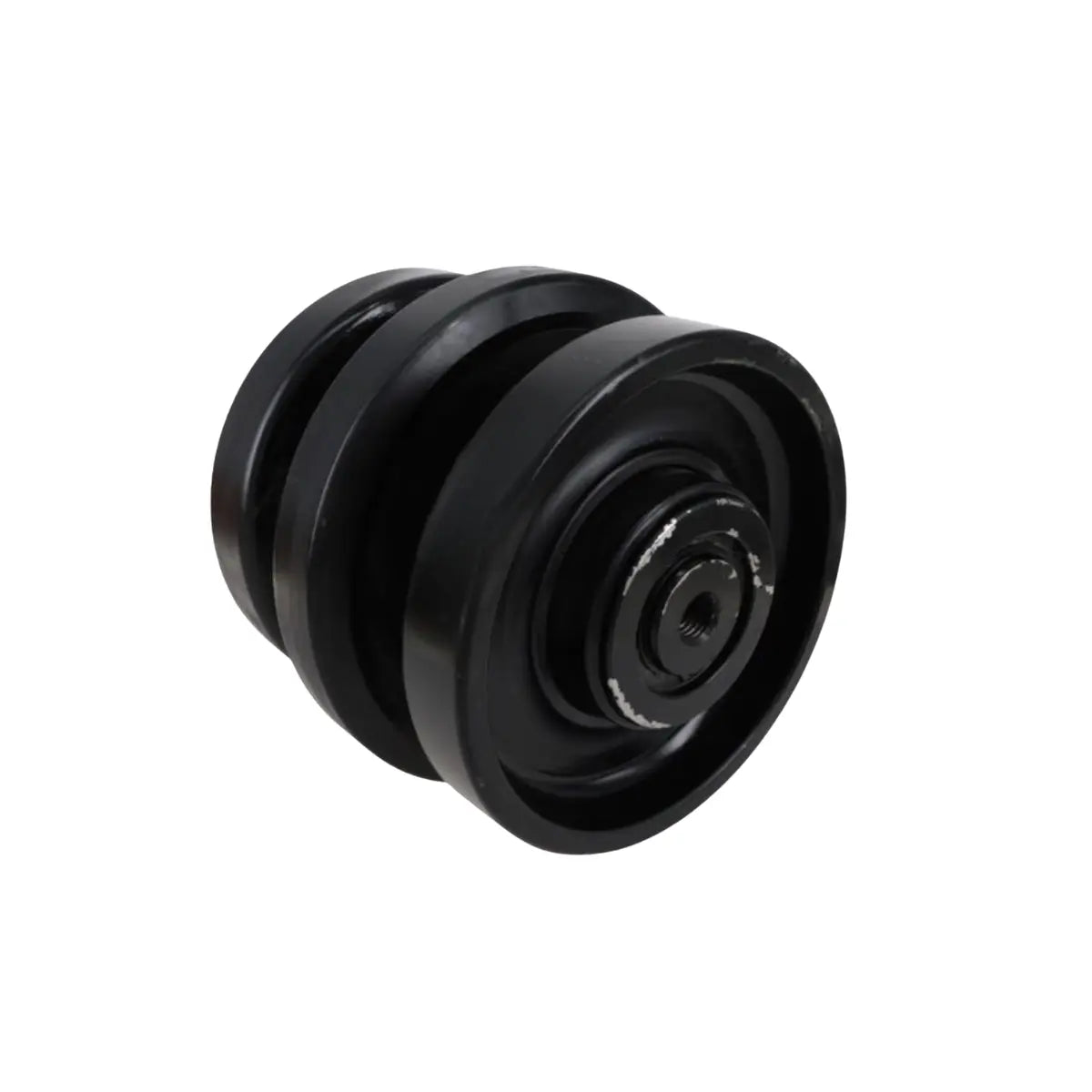

Heavy Duty Track Roller | TRRB511-21702Heavy Duty Track Roller | TRRB511-21702 – view 2
Save $8.27
300mm Bolt-On Track Pad – 101 Series300mm Bolt-On Track Pad – 101 Series – view 2
300mm Bolt-On Track Pad – 101 Series
Sale price$16.73 Regular price$25.00
In stock
Sizing, tread and buying guide

The Kubota U25 takes a 300 mm track, but it was built with more than one pitch — 52.5 and 53 mm. Same width, different drive-lug spacing, and they do not swap. Check the old track or the sprocket before ordering. Free freight to the lower 48, 24-month warranty.

Kubota U25 track options

  • 300x53x80 — 300 mm (12") wide, 53 mm pitch, 80 links
  • 300x52.5Nx80 — 300 mm (12") wide, 52.5 mm pitch, 80 links, narrow guide lugs

Same tread width on all of them — what changes is pitch and link count, which is set by the sprocket and roller frame. Read the numbers off the inside of the old track rather than going by model year; these were built across more than one undercarriage spec.

Tread choice for the Kubota U25

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • MX — mixed and hard surfaces. A durable general-duty excavator tread
  • Directional — digging, trenching and slope work. The standard excavator tread

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Kubota U25 at a glance

  • Operating weight — 5,625 lb
  • Engine — 20 hp

Undercarriage parts for the Kubota U25

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

Where more than one part number is listed, Kubota changed that component across serial ranges. Match the number stamped on the part you are replacing, or send us the machine serial and we will pick it.

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Kubota U25, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
