Volvo EC55B

Shop rubber tracks for the Volvo EC55B Mini Excavator at low direct prices. Free shipping, fast nationwide delivery and 24-month rubber-track warranty protection make replacement simple and high value. Explore 1 tread option built around traction, ride quality, surface control and long-wear performance.

Shop compatible products
Volvo EC55B mini excavator

All compatible parts for Volvo EC55B

3 products

Showing 1 - 3 of 3 products

3 compatible products
Save $281.25
400x72.5Wx74 Directional Rubber Track400x72.5Wx74 Directional Rubber Track – tread close-up
400x72.5x74 Rubber Track | MX
Sale price$1,875.00 Regular price$2,156.25
$1,875.00 each
In stock
Save $360.00
400x72.5Wx74 Bridgestone Rubber Track | MX400x72.5Wx74 Bridgestone Rubber Track | MX – view 2
400x72.5x74 Bridgestone Rubber Track | MX
Sale price$2,339.00 Regular price$2,699.00
$2,339.00 each
Sold out
Request a quote
Save $5.65

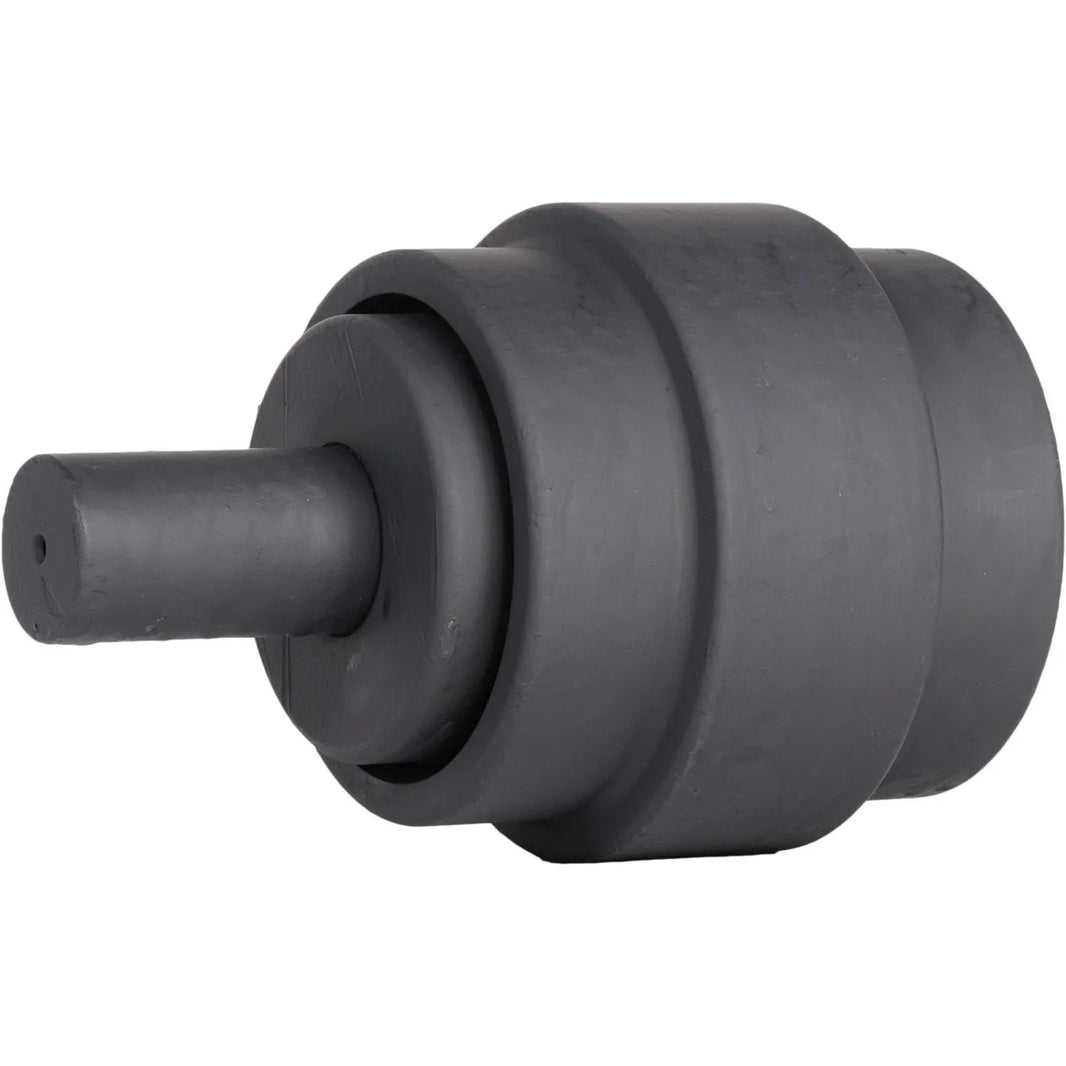

Heavy Duty Carrier Roller | Part #1181-00430Heavy Duty Carrier Roller | Part #1181-00430 – view 2
Heavy Duty Carrier Roller for Volvo & CAT | Part #CR1181-00430
Sale price$141.25 Regular price$146.90
Sold out
Request a quote
Sizing, tread and buying guide

The Volvo EC55B runs a 400x72.5Wx74 track: 400 mm across the tread, 72.5 mm between links, 74 links around. Cut for digging, trenching, backfill and tight-quarters work and shipped free to the lower 48.

What the numbers mean on a Volvo EC55B

  • 400x72.5Wx74 — 400 mm tread width (about 16"), 72.5 mm pitch, 74 links, wide guide lugs

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the Volvo EC55B

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • MX — mixed and hard surfaces. A durable general-duty excavator tread

Undercarriage parts for the Volvo EC55B

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 400x72.5Wx74 shows up on machines from several makers. If you run any of these alongside the Volvo EC55B, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
