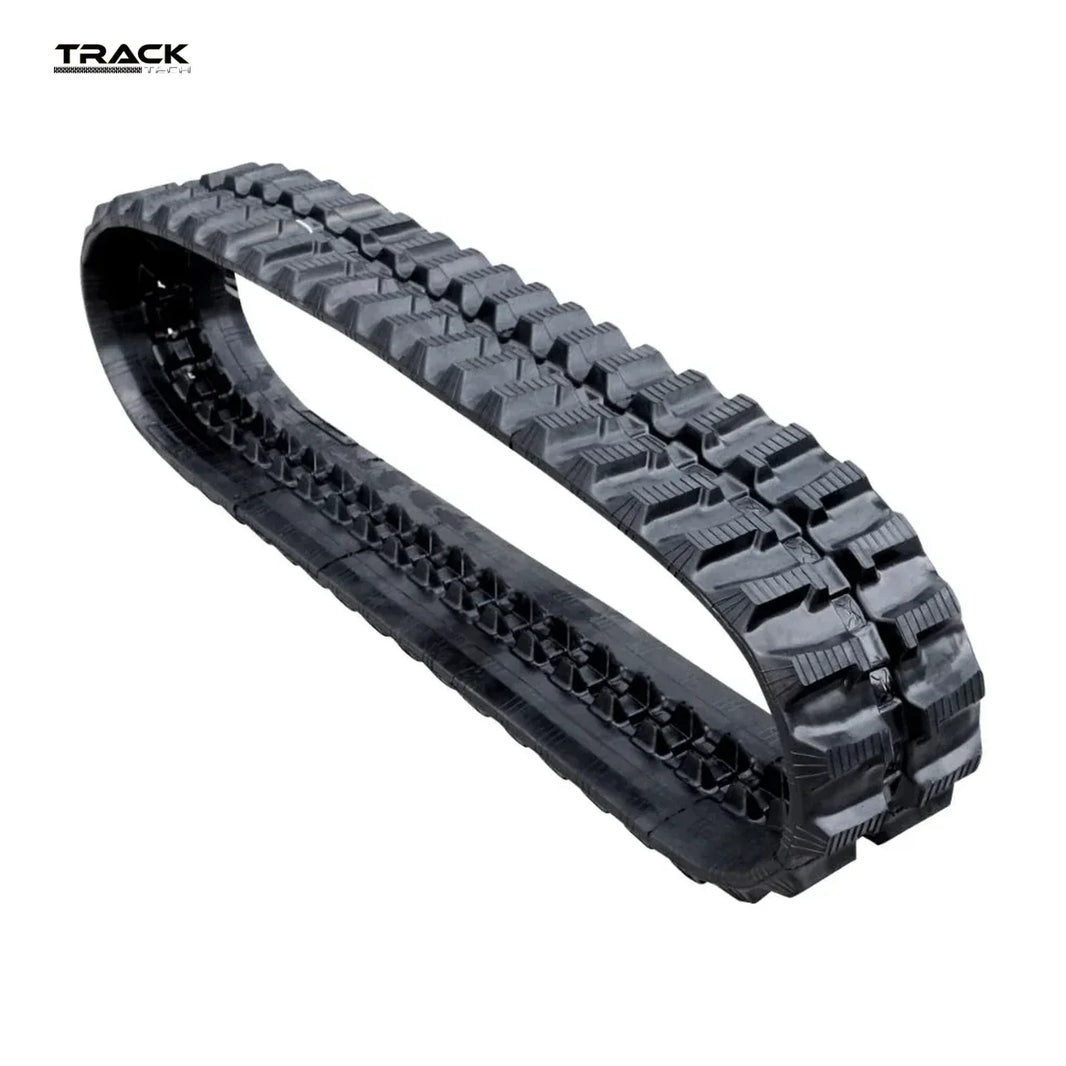

The Boxer 322D runs a 180x72x36 track: 180 mm across the tread, 72 mm between links, 36 links around. Cut for hardscape, landscape and tight-access work and shipped free to the lower 48.
What the numbers mean on a Boxer 322D
- 180x72x36 — 180 mm tread width (about 7"), 72 mm pitch, 36 links
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the Boxer 322D
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- Directional — digging, trenching and slope work. The standard excavator tread
Undercarriage parts for the Boxer 322D
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
How these wear
Stand-on loaders spend their life on curbs, trailers and hard surfaces, so abrasion is the usual failure mode, not cracking. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 180x72x36 shows up on machines from several makers. If you run any of these alongside the Boxer 322D, it is the same belt:
- 118
- Boxer 320
- Boxer TL224
- CAT ME08
- CAT ME08B
- CAT MM08B
- Ditch Witch C16X
- Ditch Witch XT1600
- Hitachi EX7
- Kobelco SK005
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
