CAT 304E2CR

Shop rubber tracks and available undercarriage parts for the CAT 304E2CR Mini Excavator at low direct prices. Free shipping, fast nationwide delivery and 24-month rubber-track warranty protection make replacement simple and high value. Explore 1 tread option built around traction, ride quality, surface control and long-wear performance.

Shop compatible products

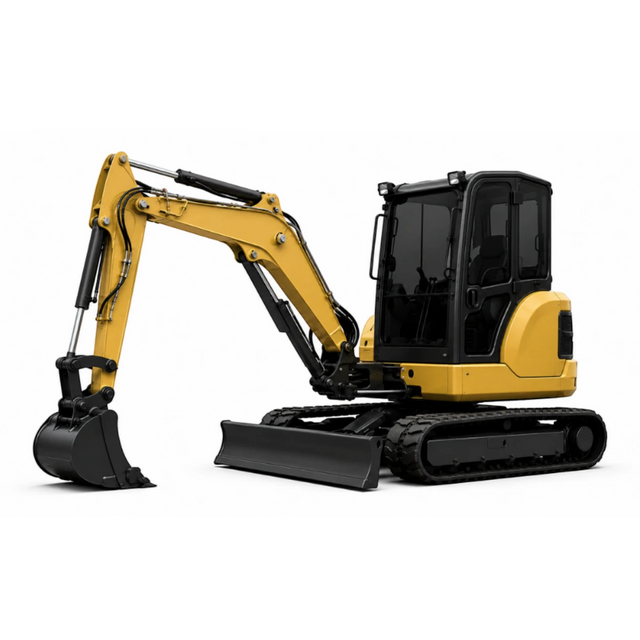

CAT 304E2CR mini excavator

All compatible parts for CAT 304E2CR

1 product

Showing 1 - 1 of 1 product

1 compatible products
Save $98.42
350x52.5Wx90 Heavy Duty Rubber Track | Directional350x52.5Wx90 Heavy Duty Rubber Track | Directional – view 2
350x52.5x90 Rubber Track | Directional
Sale price$1,255.20 Regular price$1,353.62
$1,255.20 each
In stock
Sizing, tread and buying guide

Replacement rubber tracks for the CAT 304E2CR mini excavator in 350x52.5x90 — 350 mm wide, 52.5 mm pitch, 90 links. Built for digging, trenching, backfill and tight-quarters work, with free freight to the lower 48.

What the numbers mean on a CAT 304E2CR

  • 350x52.5x90 — 350 mm tread width (about 14"), 52.5 mm pitch, 90 links

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the CAT 304E2CR

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • Directional — digging, trenching and slope work. The standard excavator tread

Undercarriage parts for the CAT 304E2CR

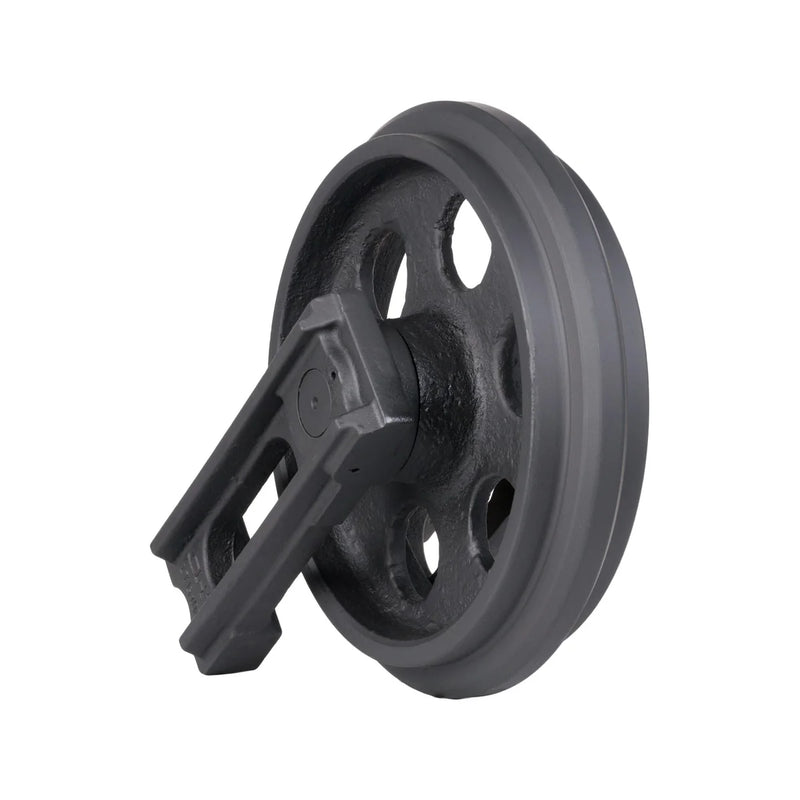

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

Where more than one part number is listed, CAT changed that component across serial ranges. Match the number stamped on the part you are replacing, or send us the machine serial and we will pick it.

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 350x52.5x90 shows up on machines from several makers. If you run any of these alongside the CAT 304E2CR, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
