Kubota U55

Shop rubber tracks and available undercarriage parts for the Kubota U55 Mini Excavator at low direct prices. Free shipping, fast nationwide delivery and 24-month rubber-track warranty protection make replacement simple and high value. Explore 1 tread option built around traction, ride quality, surface control and long-wear performance.

Shop compatible products

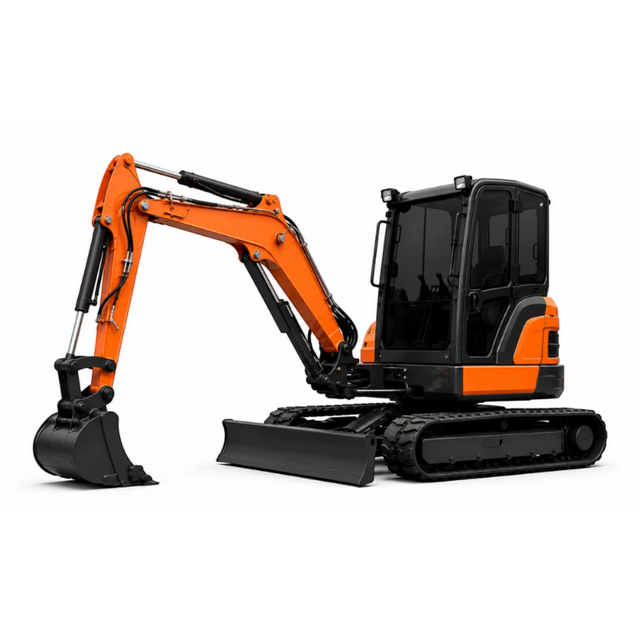

Kubota U55 mini excavator

All compatible parts for Kubota U55

6 products

Showing 1 - 6 of 6 products

6 compatible products
Save $360.00

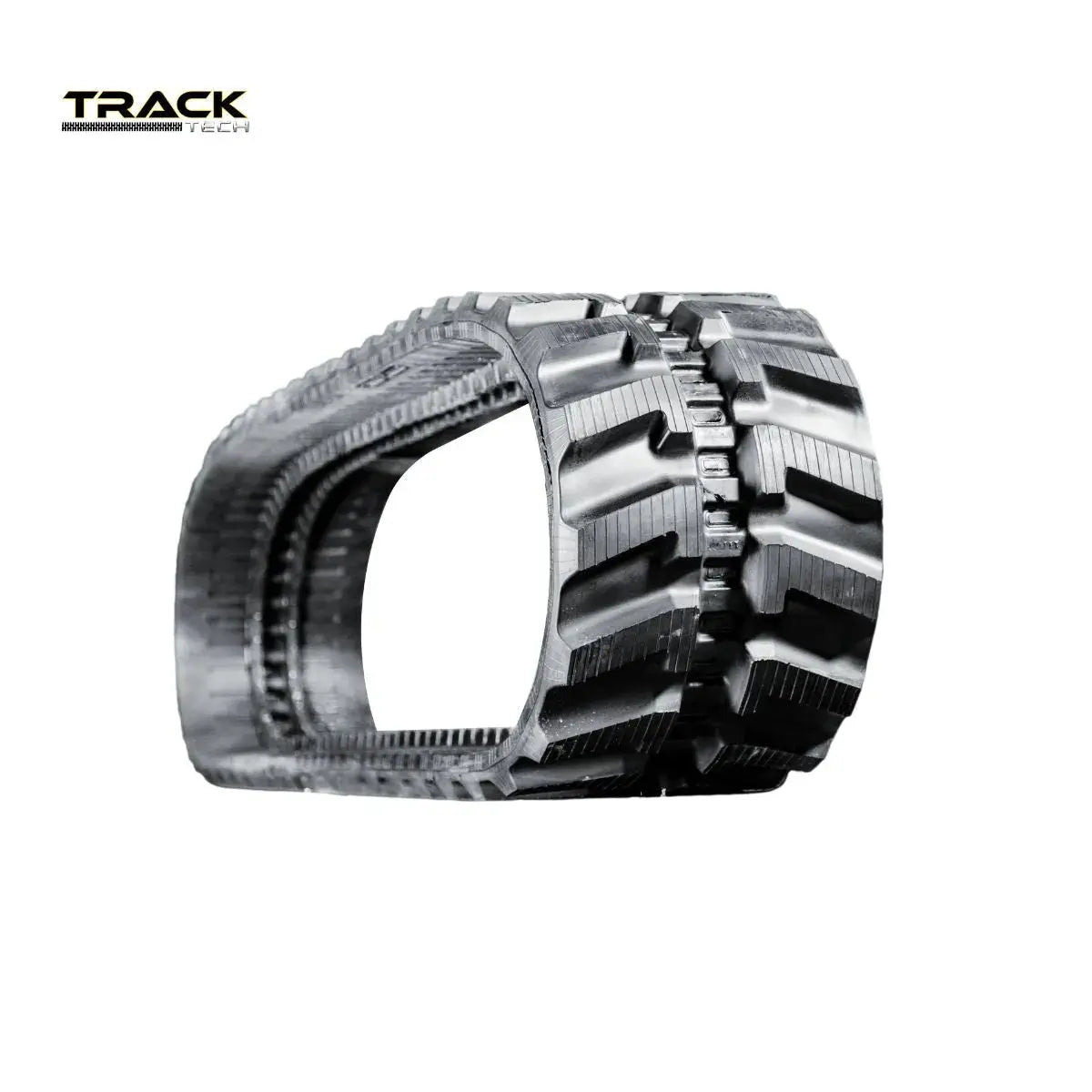

400x72.5Wx74 Bridgestone Rubber Track | MX400x72.5Wx74 Bridgestone Rubber Track | MX – view 2
400x72.5x74 Bridgestone Rubber Track | MX
Sale price$2,339.00 Regular price$2,699.00
$2,339.00 each
Sold out
Request a quote
Save $281.25
400x72.5Wx74 Directional Rubber Track400x72.5Wx74 Directional Rubber Track – tread close-up
400x72.5x74 Rubber Track | MX
Sale price$1,875.00 Regular price$2,156.25
$1,875.00 each
In stock
Heavy Duty Sprocket | SPRD411-14432Heavy Duty Sprocket | SPRD411-14432 – view 2
Heavy Duty Sprocket | Part #RD411-14432
Sale price$255.56
In stock

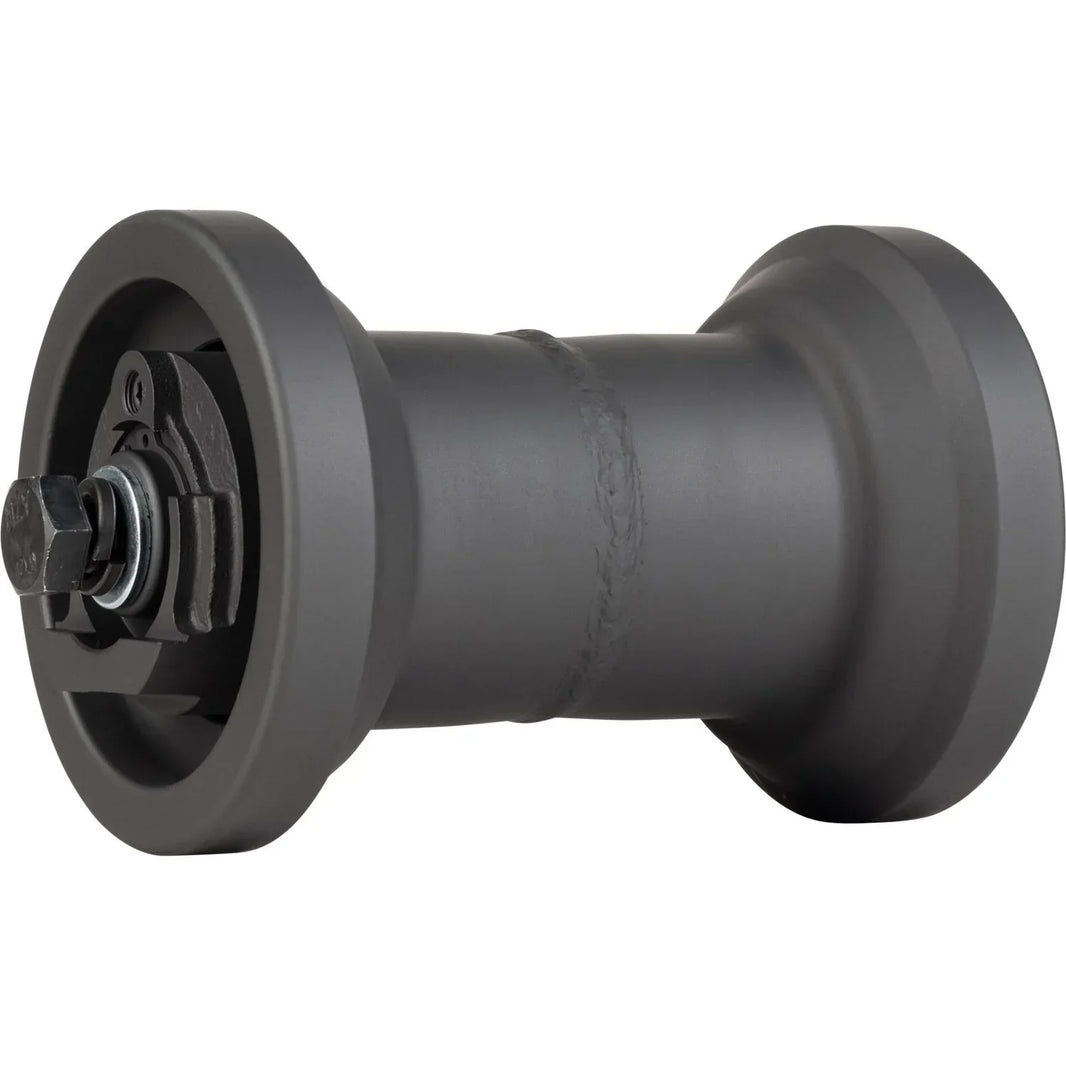

Heavy Duty Track Roller | TRRD411-21703Heavy Duty Track Roller | TRRD411-21703 – view 2
Heavy Duty Carrier Roller | Part #RD411-22900Heavy Duty Carrier Roller | Part #RD411-22900 – view 2
16" Hybrid Track with Rubber Track Pads (400x72.5Wx74)16" Hybrid Track with Rubber Track Pads (400x72.5Wx74)
Sizing, tread and buying guide

Replacement rubber tracks for the Kubota U55 mini excavator in 400x72.5Wx74 — 400 mm wide, 72.5 mm pitch, 74 links. Built for digging, trenching, backfill and tight-quarters work, with free freight to the lower 48.

What the numbers mean on a Kubota U55

  • 400x72.5Wx74 — 400 mm tread width (about 16"), 72.5 mm pitch, 74 links, wide guide lugs

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the Kubota U55

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • MX — mixed and hard surfaces. A durable general-duty excavator tread

Kubota U55 at a glance

  • Engine — 49 hp

Undercarriage parts for the Kubota U55

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 400x72.5Wx74 shows up on machines from several makers. If you run any of these alongside the Kubota U55, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
