New Holland E25SR tracks and undercarriage, sized 300x52.5x76 (300 mm wide × 52.5 mm pitch × 76 links). Made for digging, trenching, backfill and tight-quarters work. Free freight, 24-month warranty.
What the numbers mean on a New Holland E25SR
- 300x52.5x76 — 300 mm tread width (about 12"), 52.5 mm pitch, 76 links
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the New Holland E25SR
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- MX — mixed and hard surfaces. A durable general-duty excavator tread

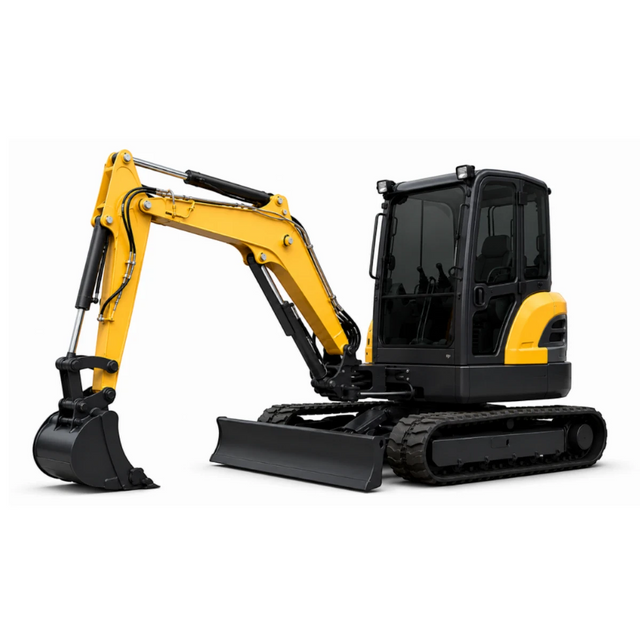

New Holland E25SR at a glance
- Operating weight — 5,842 lb
- Engine — 17 hp
Undercarriage parts for the New Holland E25SR
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
- Bottom roller — 7257870
How these wear
Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 300x52.5x76 shows up on machines from several makers. If you run any of these alongside the New Holland E25SR, it is the same belt:
- Airman AX20-3
- Airman AX20UR
- Airman AX25-2
- Bobcat E25
- CAT MM25T
- Case CX20B
- Case CX20BMR
- Case CX22B
- Case CX22BMC
- Case CX22BZTS
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
