Volvo EC20B
Shop rubber tracks for the Volvo EC20B Mini Excavator at low direct prices. Free shipping, fast nationwide delivery and 24-month rubber-track warranty protection make replacement simple and high value. Explore 1 tread option built around traction, ride quality, surface control and long-wear performance.
Shop compatible products
Sizing, tread and buying guide
The Volvo EC20B runs a 230x48x72 track: 230 mm across the tread, 48 mm between links, 72 links around. Cut for digging, trenching, backfill and tight-quarters work and shipped free to the lower 48.
What the numbers mean on a Volvo EC20B
- 230x48x72 — 230 mm tread width (about 9"), 48 mm pitch, 72 links
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

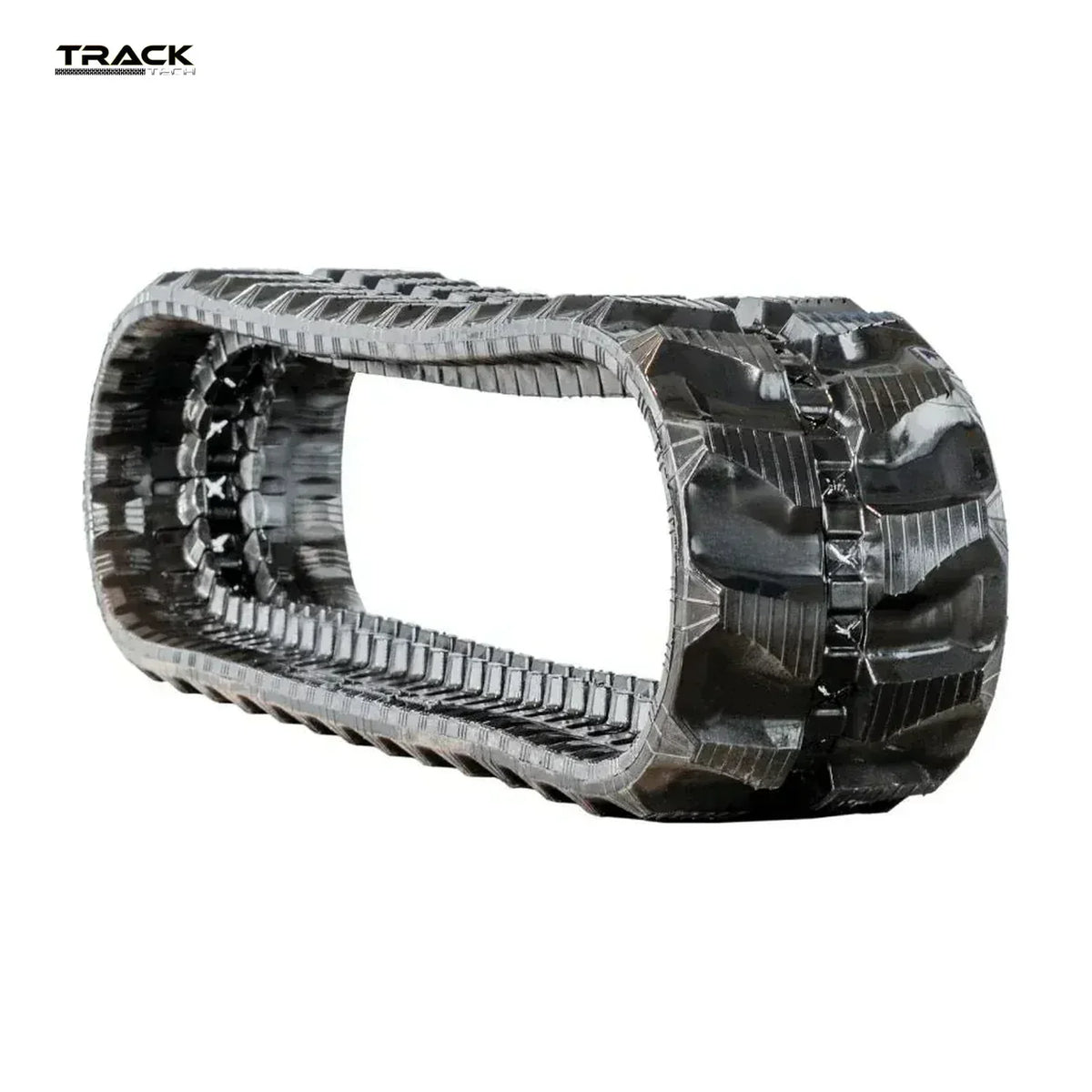

Tread choice for the Volvo EC20B
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- Directional — digging, trenching and slope work. The standard excavator tread
Parts we carry for the Volvo EC20B
Tracks. Call for anything not shown online — we can usually source it.
How these wear
Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 230x48x72 shows up on machines from several makers. If you run any of these alongside the Volvo EC20B, it is the same belt:
- Bobcat E20
- CAT 301.7D
- CAT 301.7DCR
- EC 20B XTV
- Gehl 153
- Gehl GE192
- Gehl GE222
- Kobelco SK015R
- Kobelco SK15R
- Kobelco SK15SR
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
