Bobcat E20 Rubber Tracks & Parts

Q: What size rubber tracks fit a Bobcat E20?

The Bobcat E20 can use 230x48x72 rubber tracks. Match the full size on the track you are replacing before you order. If your machine has more than one track setup, choose the width and guide style that matches the track currently on the machine.

Bobcat E20 tracks and undercarriage, sized 230x48x72 (230 mm wide × 48 mm pitch × 72 links). Made for digging, trenching, backfill and tight-quarters work. Free freight, 24-month warranty.

What the numbers mean on a Bobcat E20

230x48x72 — 230 mm tread width (about 9"), 48 mm pitch, 72 links

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the Bobcat E20

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

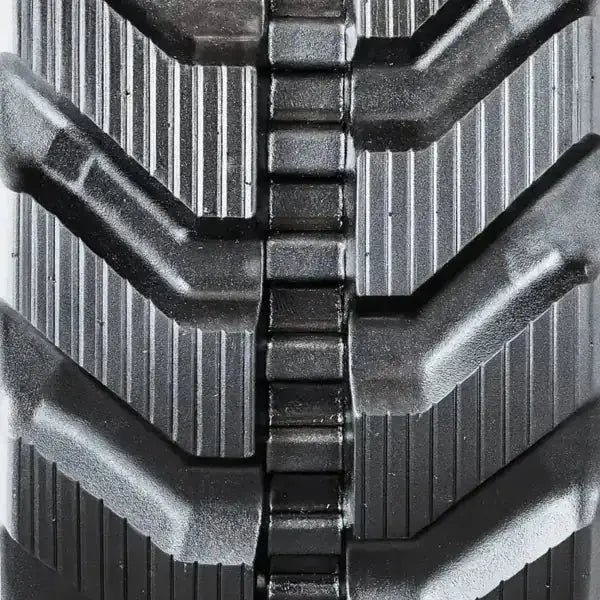

Directional — digging, trenching and slope work. The standard excavator tread

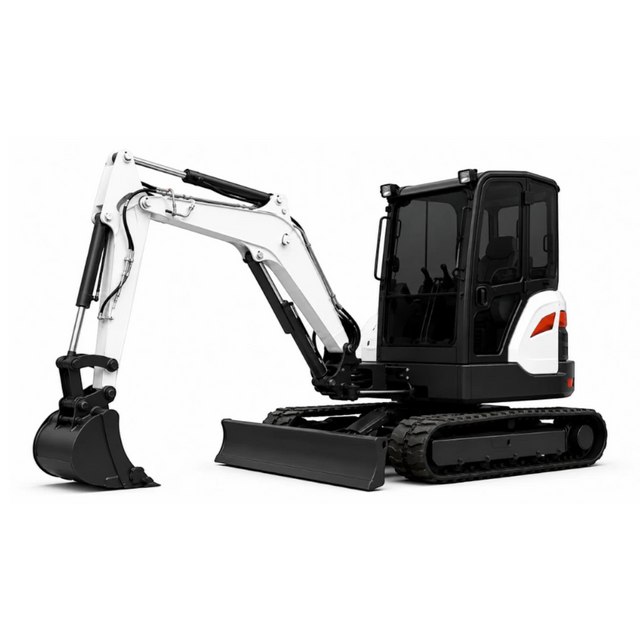

Bobcat E20 at a glance

Operating weight — 4,475 lb
Engine — 18 hp

Parts we carry for the Bobcat E20

Tracks. Call for anything not shown online — we can usually source it.

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 230x48x72 shows up on machines from several makers. If you run any of these alongside the Bobcat E20, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More Bobcat undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

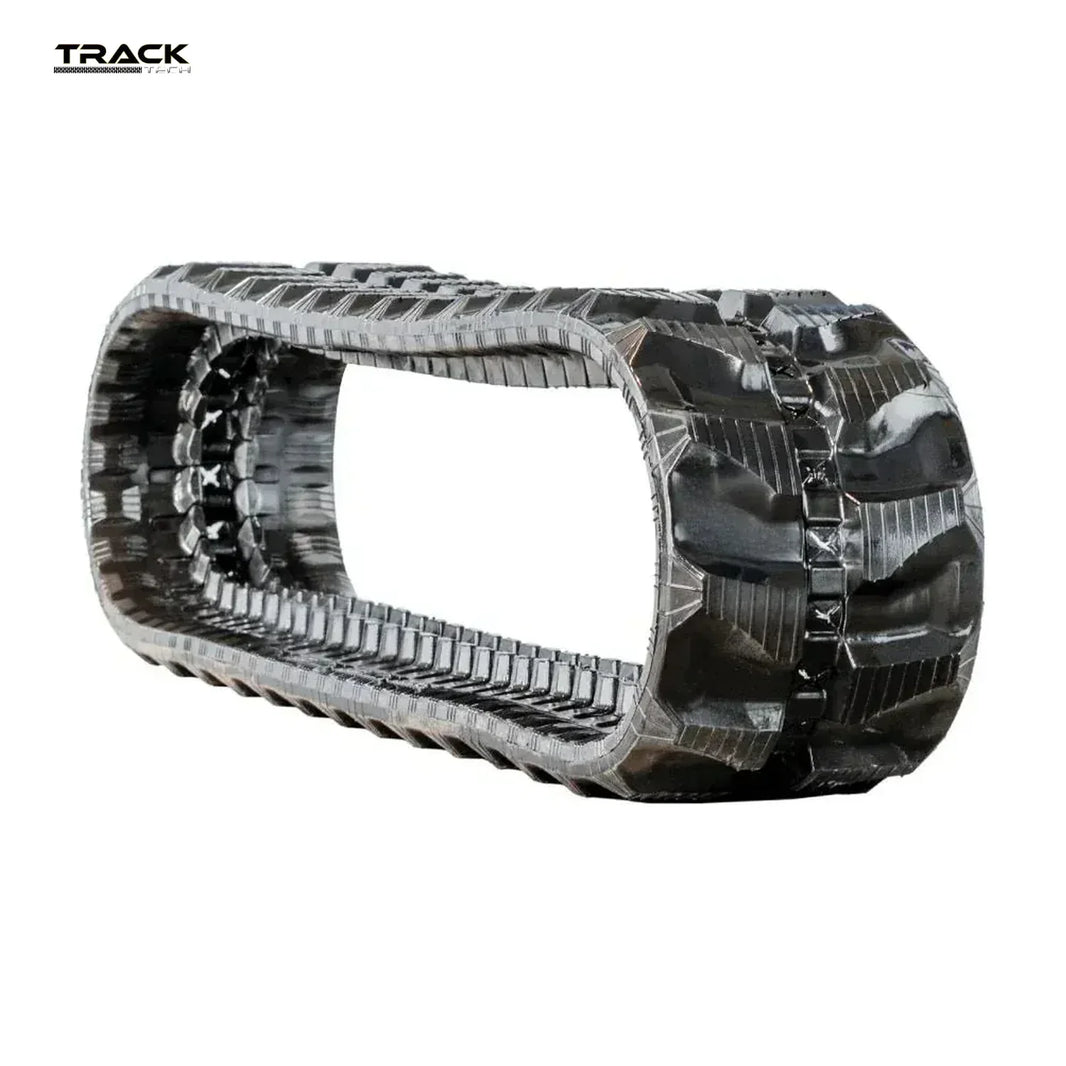

Heavy-Duty Rubber Tracks for E20

Bobcat E20
- Heavy Duty
$519.00
In stock

Add to quote

100% Virgin Rubber
Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.
Continuous Steel Cords
Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.
Drop-Forged Links
Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.
Corrosion Resistant
The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.
Reinforced Sidewalls
Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.
Low-Vibration Tread
Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.
