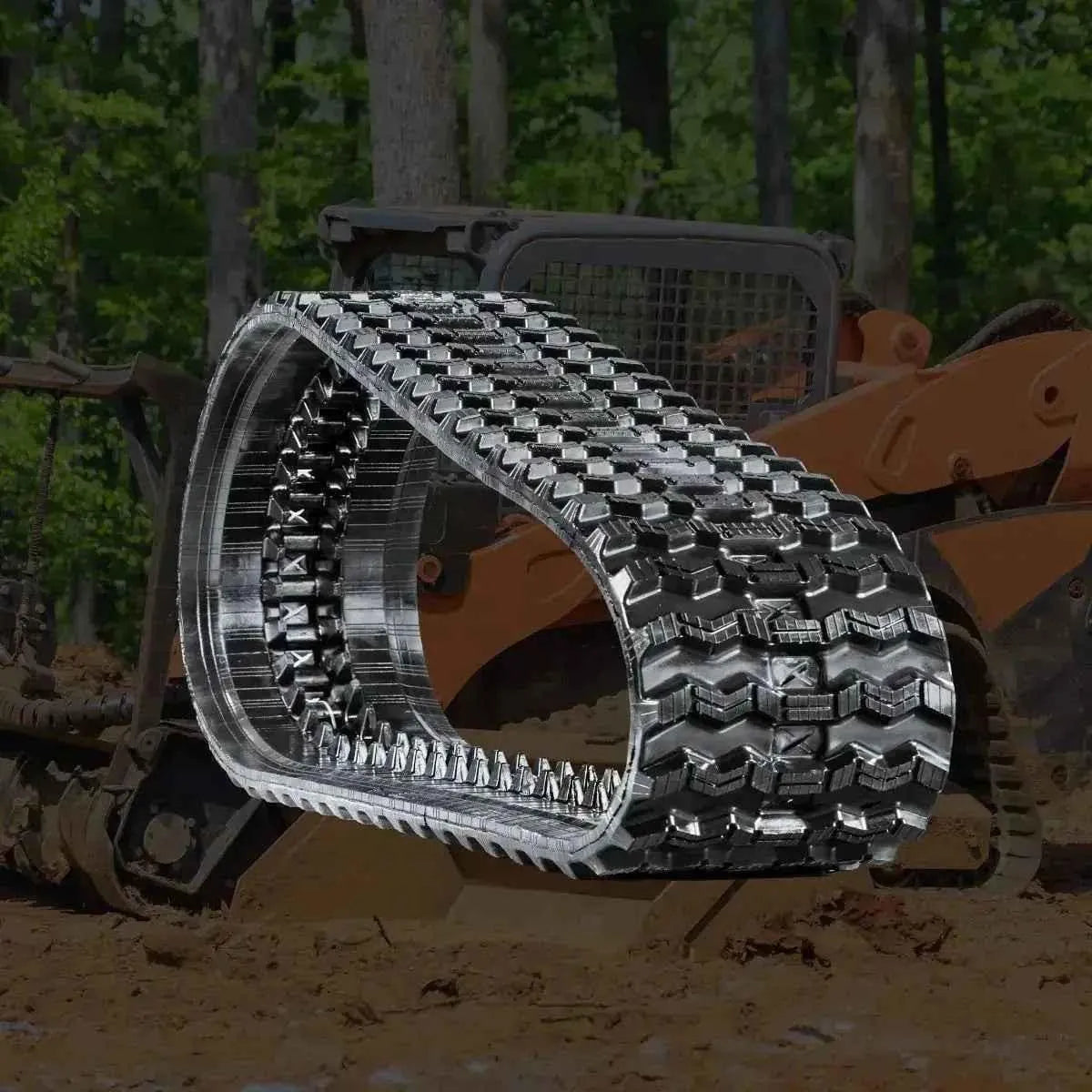

The Kubota SVL90 runs a 450x86x58 track: 450 mm across the tread, 86 mm between links, 58 links around. Cut for grading, loading, pallet work and land clearing and shipped free to the lower 48.
What the numbers mean on a Kubota SVL90
- 450x86x58 — 450 mm tread width (about 18"), 86 mm pitch, 58 links
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the Kubota SVL90
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

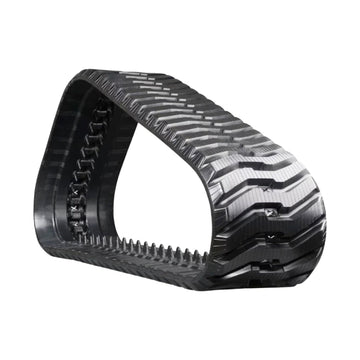

- All-Terrain — everything in between. A compromise tread when the machine moves between surfaces
- Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block

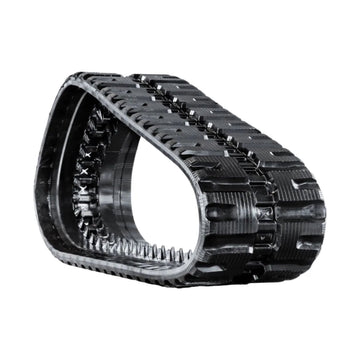

- C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces
- Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up

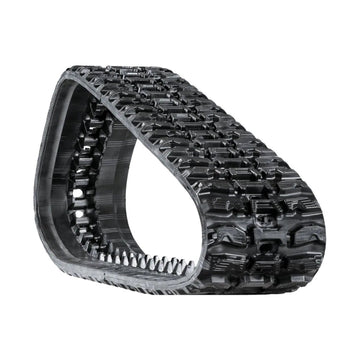

- X-Terrain — the worst ground you have. Aggressive lugs for mud, slope and loose fill

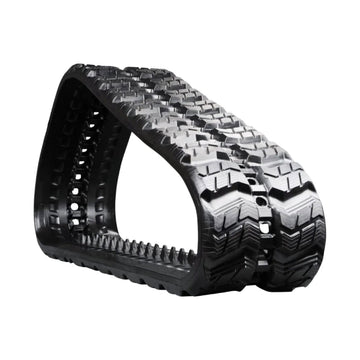

- Z-Max — soft and slippery ground. An aggressive zig-zag with more bite
If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

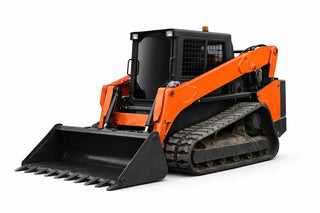

Kubota SVL90 at a glance
- Operating weight — 9,200 lb
Undercarriage parts for the Kubota SVL90
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
- Drive sprocket — SPV0611-21112

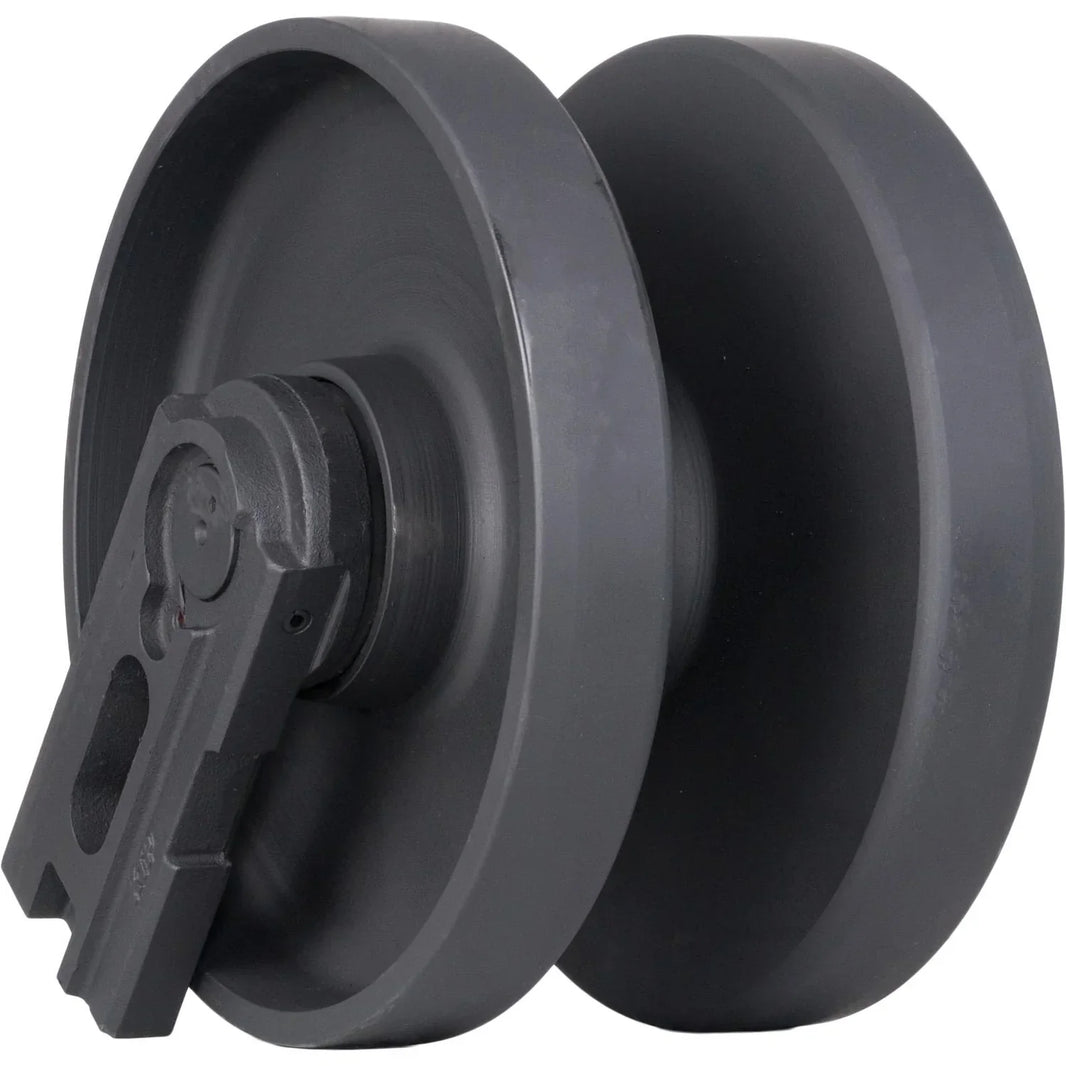

- Front idler — FIV0611-22100
- Rear idler — RRV0511-24103
- Bottom roller — TRV0511-25104
- Undercarriage kit
How these wear
CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 450x86x58 shows up on machines from several makers. If you run any of these alongside the Kubota SVL90, it is the same belt:
- Bobcat T830
- Bobcat T86
- Bobcat T870
- Bobcat T870 Suspension Mount
- Gehl RT250
- Gehl RT255
- Gehl VT320
- John Deere 331G
- John Deere 331P
- John Deere 333G
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
