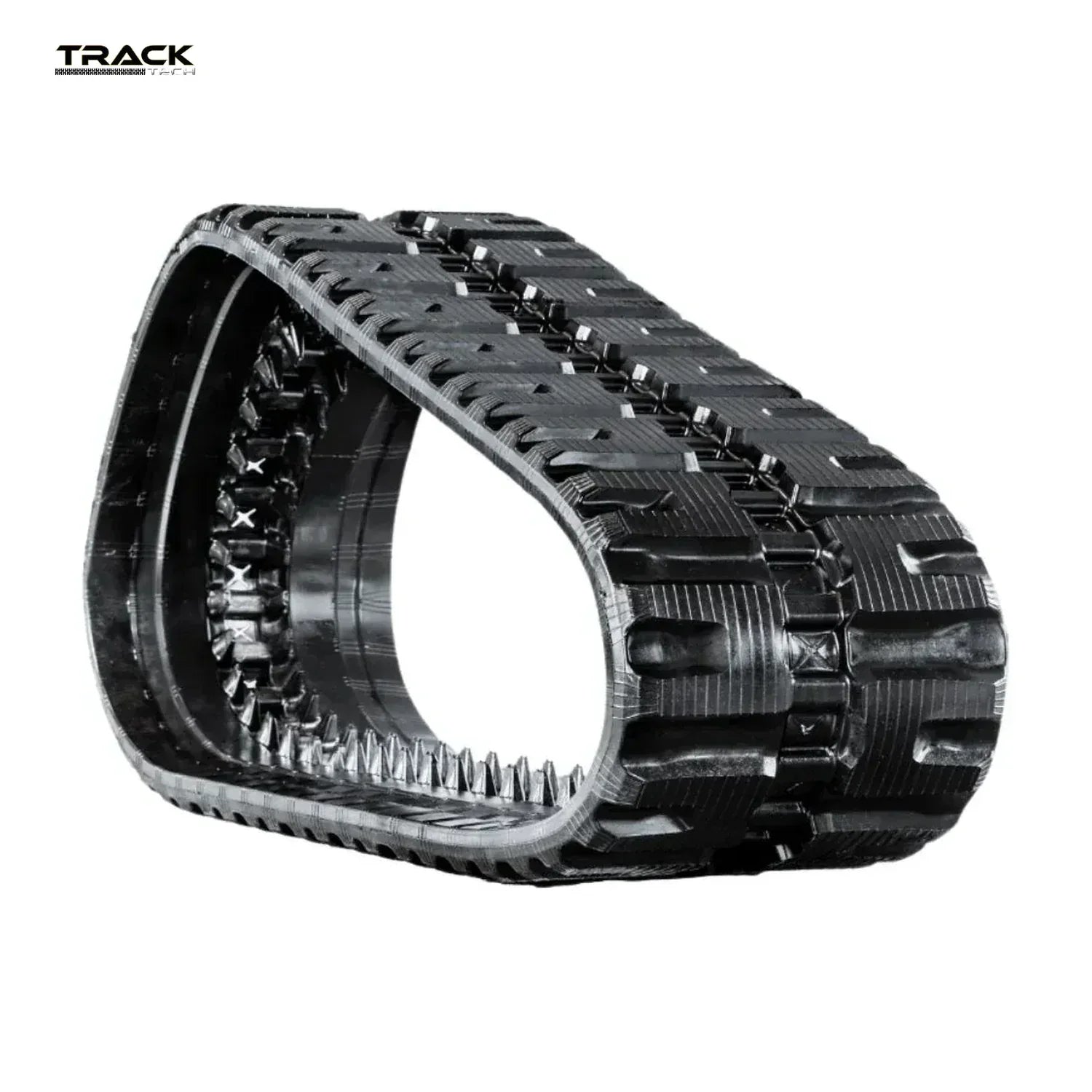

Case TV620B Rubber Tracks & Parts

Replacement rubber tracks for the Case TV620B compact track loader in 450x86x63 — 450 mm wide, 86 mm pitch, 63 links. Built for grading, loading, pallet work and land clearing, with free freight to the lower 48.

What the numbers mean on a Case TV620B

  • 450x86x63 — 450 mm tread width (about 18"), 86 mm pitch, 63 links

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the Case TV620B

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces

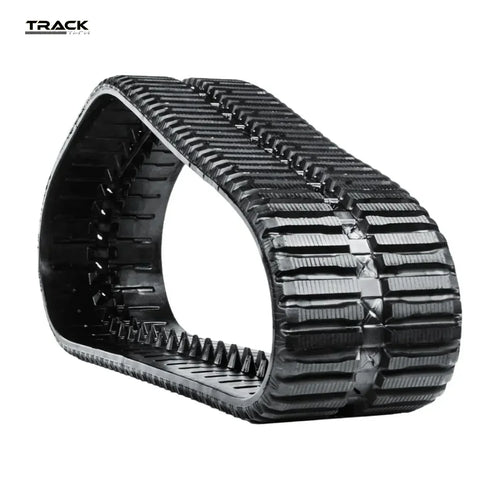

  • Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
  • Z-Max — soft and slippery ground. An aggressive zig-zag with more bite

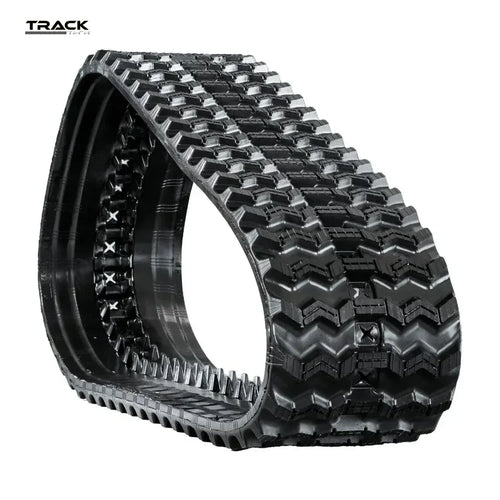

  • Zig-Zag — general mixed ground. Balanced traction with a smoother ride than a bar tread

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Case TV620B at a glance

  • Operating weight — 16,100 lb
  • Engine — 114 hp

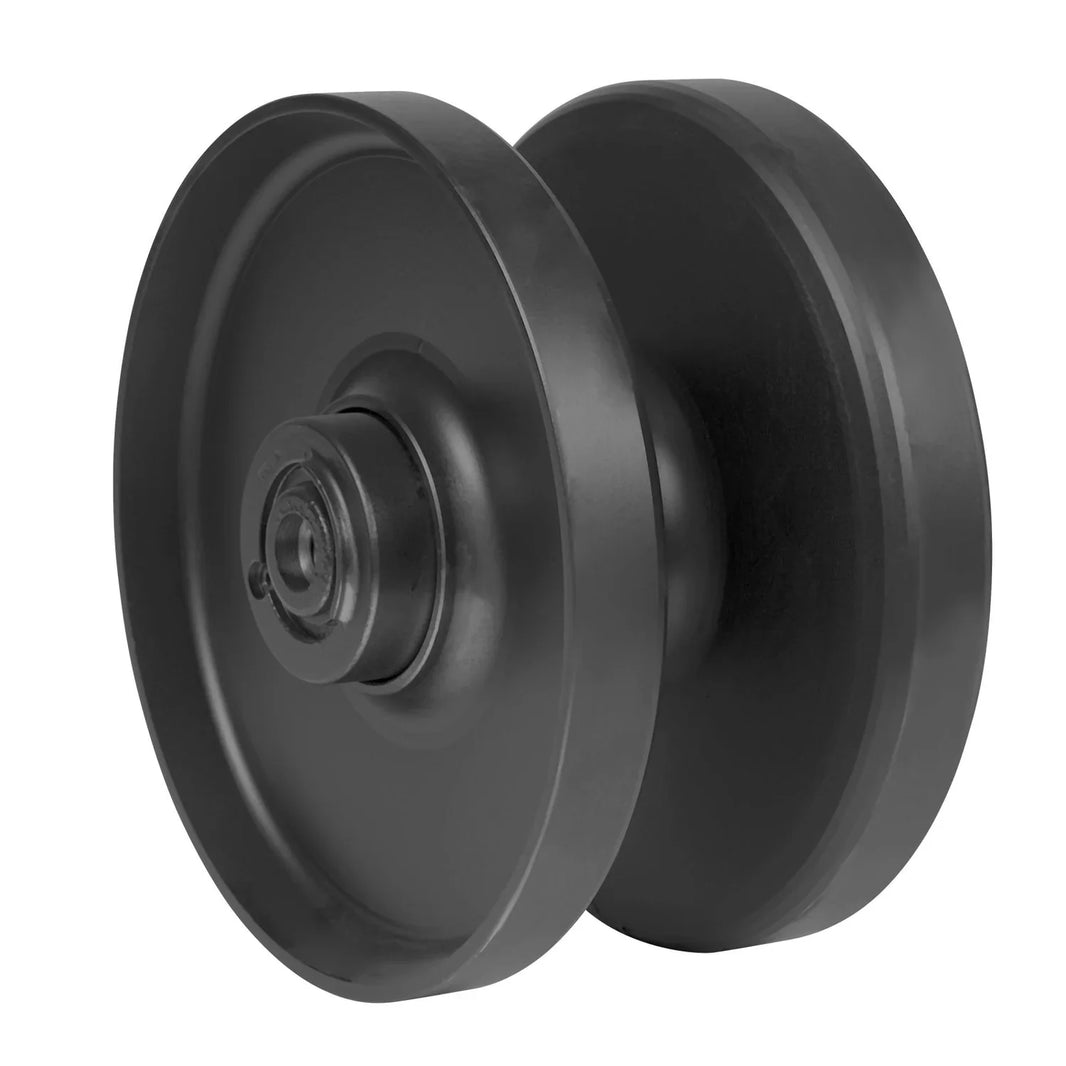

Undercarriage parts for the Case TV620B

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 450x86x63 shows up on machines from several makers. If you run any of these alongside the Case TV620B, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More Case undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

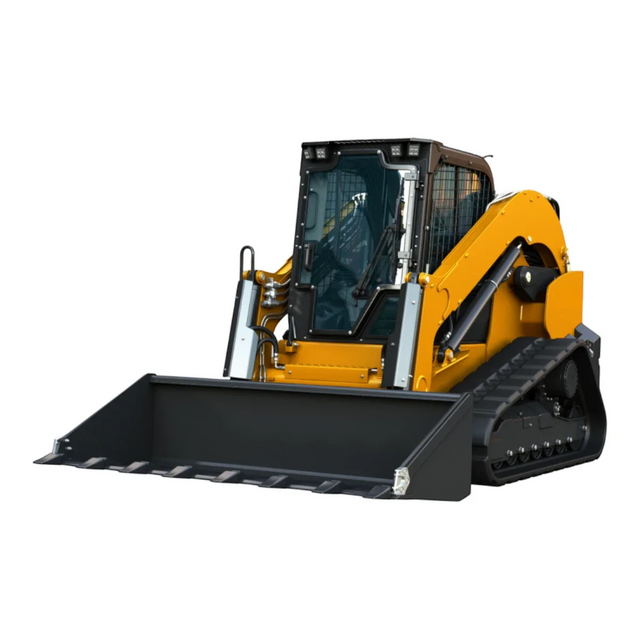

Case TV620B compact track loader

Track sizes

Heavy-Duty Rubber Tracks for TV620B

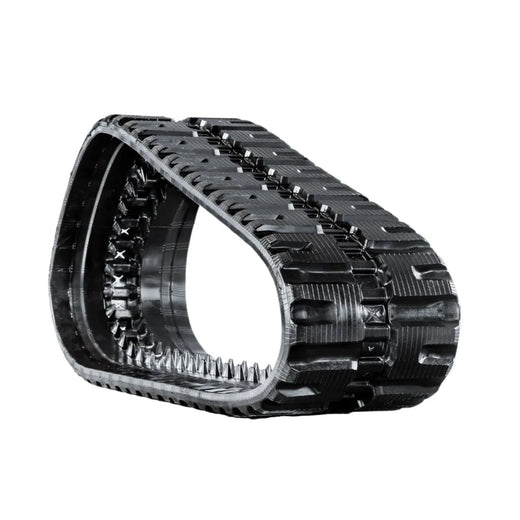

  • 450x86x63 Heavy Duty Rubber Track | C-Block
    Case TV620B 450x86x63 C-Block
    • Heavy Duty | 450x86x63
    • Maximum Durability
    • Anti-Vibration
    • Cut & Tear Resistant
    $1,683.50$1,618.75

    In stock

    Add to quote
  • 450x86x63 Heavy Duty Rubber Track | Multi-Bar

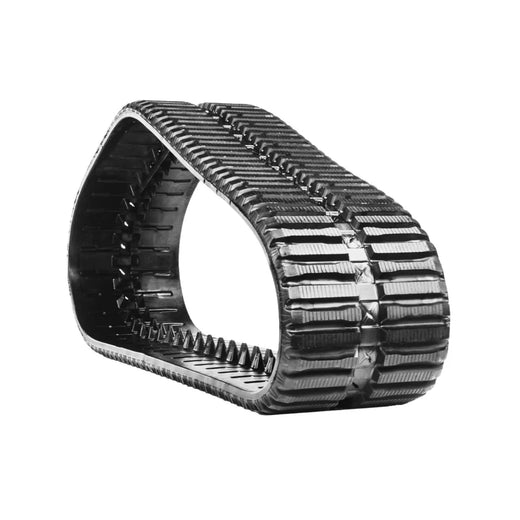

    Case TV620B 450x86x63 Multi-Bar
    • Heavy Duty | 450x86x63
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning
    $1,638.00$1,575.00

    In stock

    Add to quote
  • 450x86x63 Z Max Rubber Track

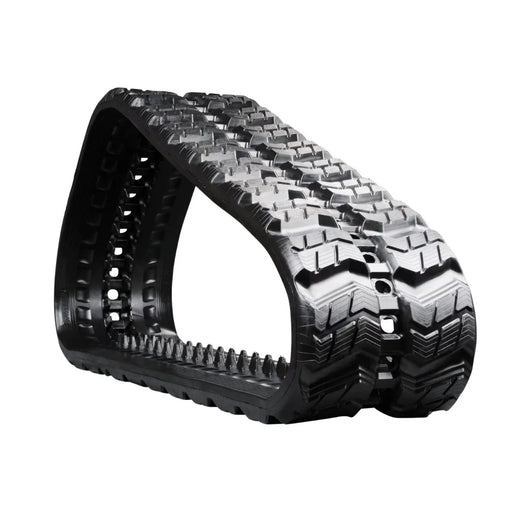

    Case TV620B 450x86x63 Z-Max
    • Heavy Duty | 450x86x63
    • Extreme Grip
    • Side-Hill Stability
    • Tear Resistant
    $1,696.50$1,631.25

    In stock

    Add to quote
  • 450x86x63 Heavy Duty Rubber Track | Zig-Zag

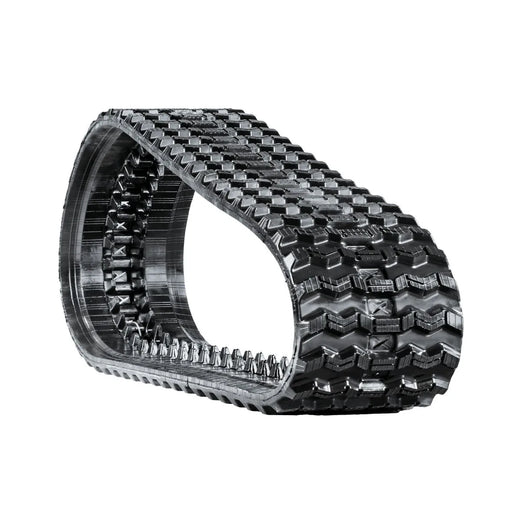

    Case TV620B 450x86x63 Zig-Zag
    • Heavy Duty | 450x86x63
    • High Traction
    • Self-Cleaning
    • Versatile Performance
    $1,735.50$1,668.75

    In stock

    Add to quote

Which tread fits Case TV620B?

Pick a tread for your jobsite — then buy above.
+ Recommended surface- Not the primary use— Application dependent
PatternBest UseKey TraitsRoadClayGravelMulchMudTurfAction
C-Block C-BlockHeavy-duty durability Built for maximum durability on abrasive jobsites, hard-pack surfaces, demolition debris, and mixed gravel.
  • Maximum Durability
  • Anti-Vibration
  • Cut & Tear Resistant
+++---View
Multi-Bar Multi-BarPushing power and mud grip Designed for pushing power, deep mud grip, and clean-out performance when traction matters more than smooth finish.
  • Max Pushing Power
  • Deep Mud Grip
  • Self-Cleaning
-+-+++View
Z-Max Z-MaxExtreme grip Aggressive tread geometry for extreme grip, side-hill stability, and tear resistance in rough conditions.
  • Extreme Grip
  • Side-Hill Stability
  • Tear Resistant
-++-+-View
Zig-Zag Zig-ZagAll-season traction A versatile all-season pattern with high traction, self-cleaning channels, and balanced ride quality.
  • High Traction
  • Self-Cleaning
  • Versatile Performance
++++++View

  • 100% Virgin Rubber

    Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.

  • Continuous Steel Cords

    Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.

  • Drop-Forged Links

    Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.

  • Corrosion Resistant

    The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.

  • Reinforced Sidewalls

    Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.

  • Low-Vibration Tread

    Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.

Case TV620B Rubber Tracks & Parts fitment data

Machine Performance

Operating Weight16100 lb
Horsepower114 HP
ROC / Bucket Force4340 lb

Hydraulics & Lift

Standard Flow24 GPM
High Flow GPM41 GPM

Fitment & Part Numbers

Track Size450x86x63
Idler7
Roller7

Verified-fit rubber tracks and undercarriage parts for the Case TV620B. Confirm size and tread before ordering.

Frequently Asked Questions

What size rubber tracks fit a Case TV620B?
The Case TV620B can use 450x86x63 rubber tracks. Match the full size on the track you are replacing before you order. If your machine has more than one track setup, choose the width and guide style that matches the track currently on the machine.
