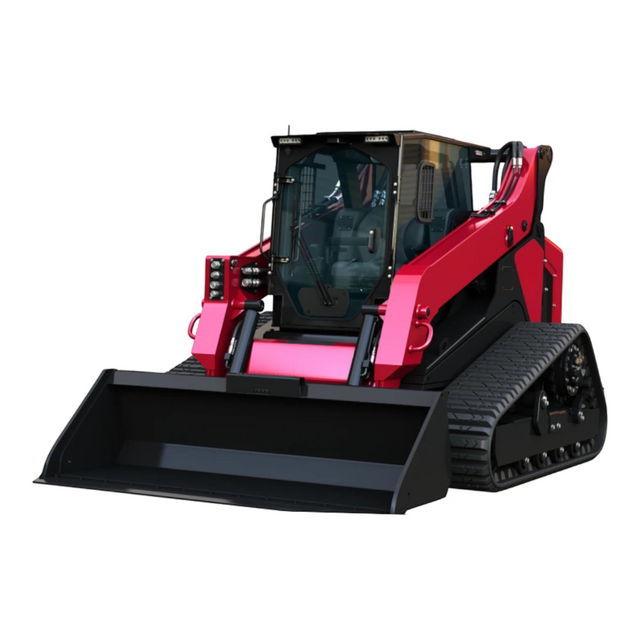

Yanmar T175 Rubber Tracks & Parts

Yanmar T175 tracks and undercarriage, sized 320x86x54 (320 mm wide × 86 mm pitch × 54 links). Made for grading, loading, pallet work and land clearing. Free freight, 24-month warranty.

What the numbers mean on a Yanmar T175

320x86x54 — 320 mm tread width (about 13"), 86 mm pitch, 54 links

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the Yanmar T175

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Undercarriage parts for the Yanmar T175

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

Drive sprocket — ID2711
Front idler — 271005
Rear idler — 275574
Undercarriage kit

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 320x86x54 shows up on machines from several makers. If you run any of these alongside the Yanmar T175, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More Yanmar undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

Track sizes

Heavy-Duty Rubber Tracks for T175

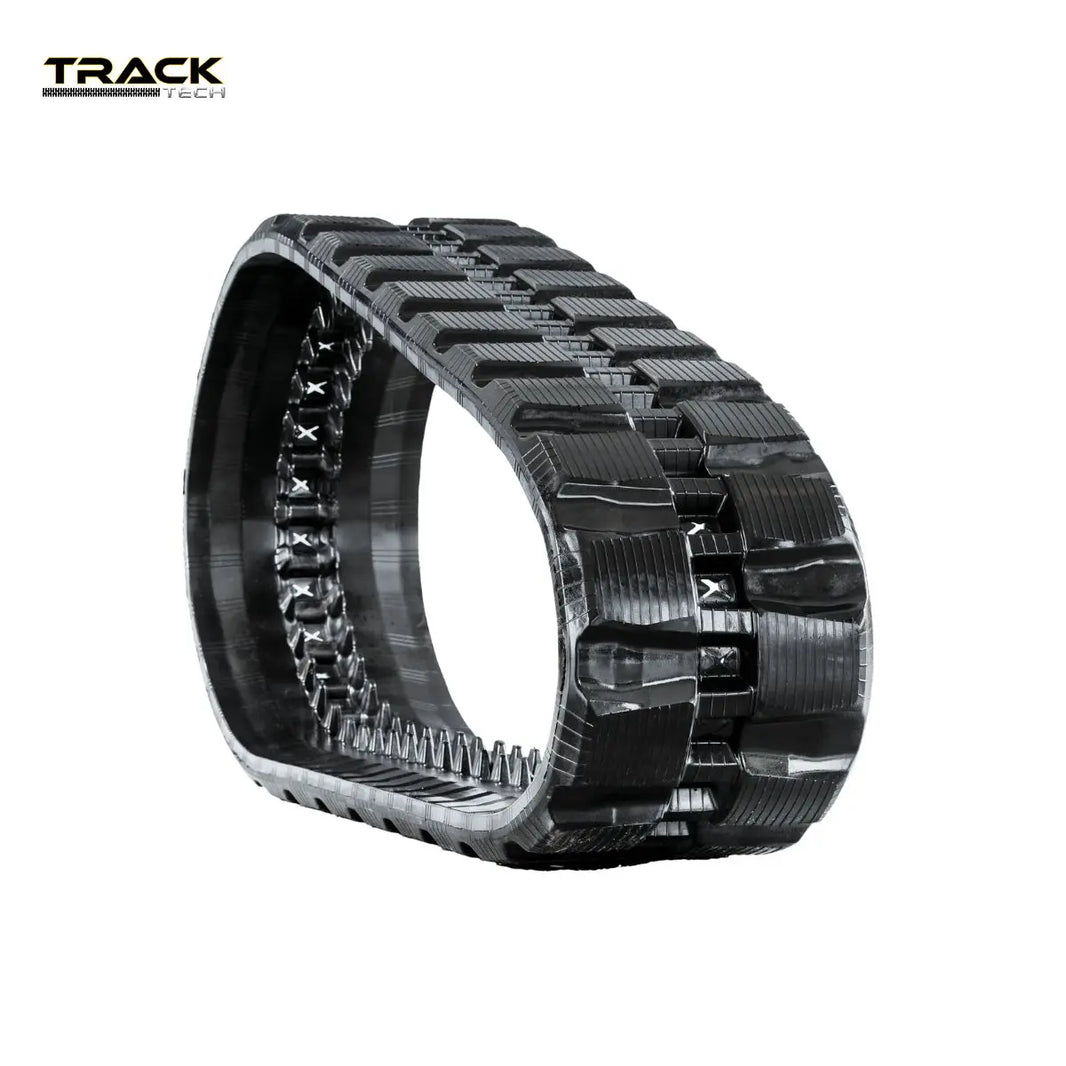

Yanmar T175 320x86x54 Staggered-Block
- Heavy Duty | 320x86x54
- Smooth Ride
- Easy Turning
- Cut Resistant
$1,020.50$981.25
In stock

Add to quote

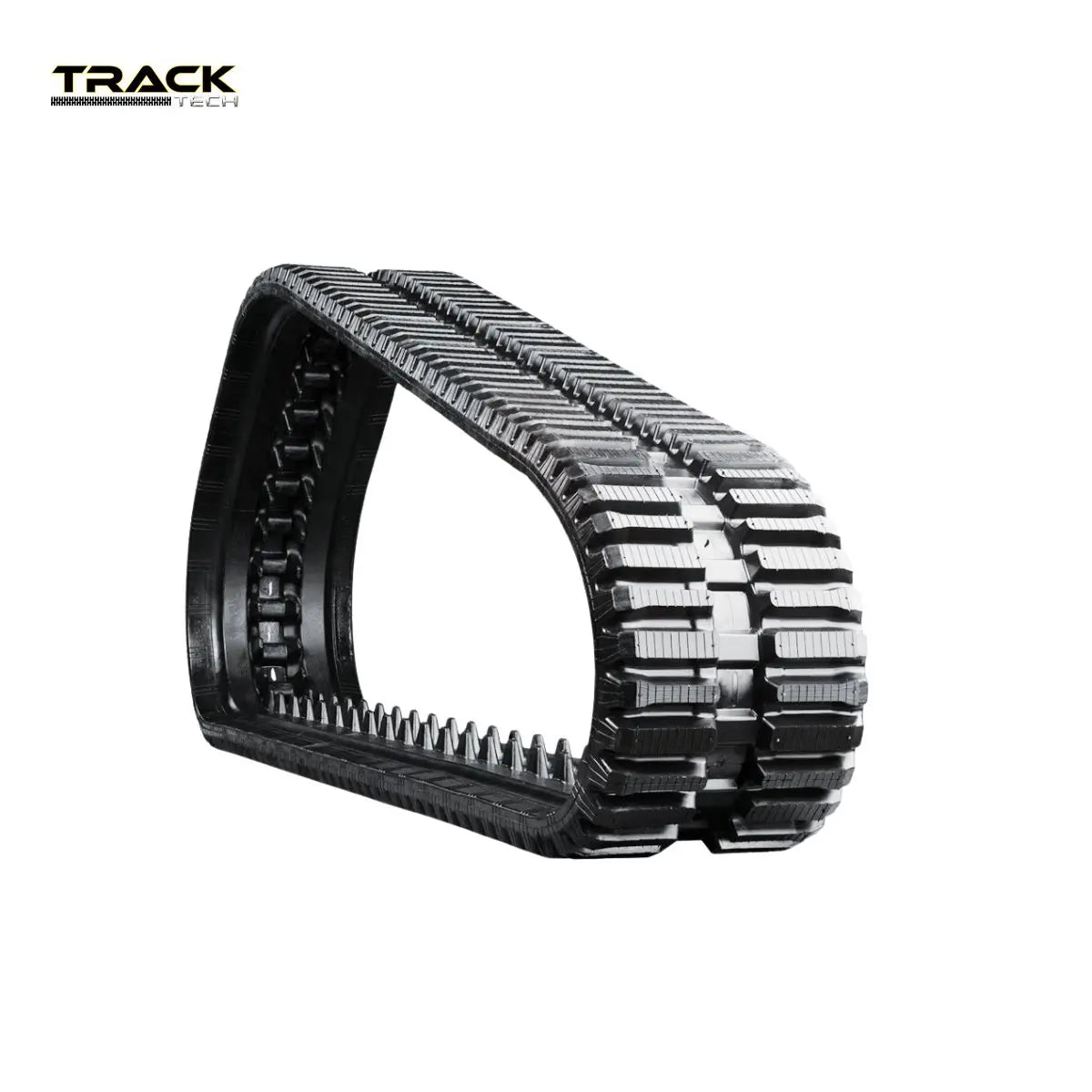

Yanmar T175 320x86x54 Multi-Bar
- Heavy Duty | 320x86x54
- Max Pushing Power
- Deep Mud Grip
- Self-Cleaning
$1,053.00$1,012.50
In stock

Add to quote

Which tread fits Yanmar T175?

Pick a tread for your jobsite — then buy above.

+ Recommended surface- Not the primary use— Application dependent

Pattern	Best Use	Key Traits	Road	Clay	Gravel	Mulch	Mud	Turf	Action
Staggered BlockSmooth turning	A smoother-riding tread option with easier turning and dependable cut resistance on mixed surfaces.	Smooth Ride Easy Turning Cut Resistant	+	-	+	-	-	+	View
Multi-BarPushing power and mud grip	Designed for pushing power, deep mud grip, and clean-out performance when traction matters more than smooth finish.	Max Pushing Power Deep Mud Grip Self-Cleaning	-	+	-	+	+	+	View

100% Virgin Rubber
Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.
Continuous Steel Cords
Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.
Drop-Forged Links
Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.
Corrosion Resistant
The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.
Reinforced Sidewalls
Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.
Low-Vibration Tread
Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.
