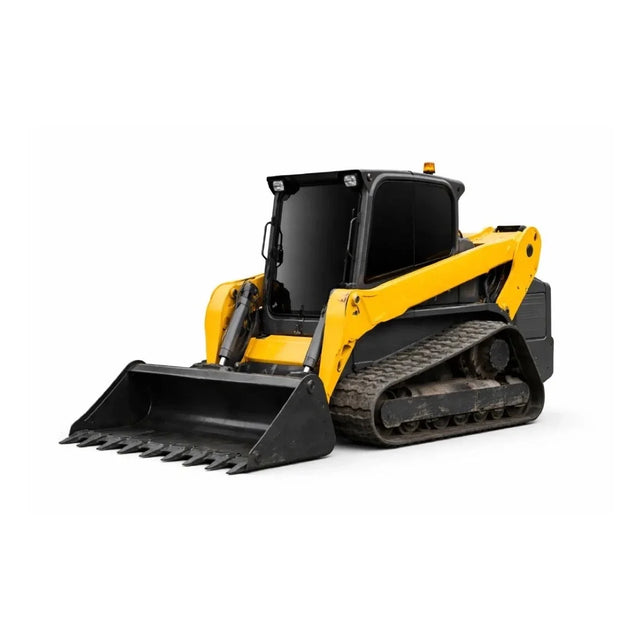

The Mustang 1750RT-2 runs a 320x86x54 track: 320 mm across the tread, 86 mm between links, 54 links around. Cut for grading, loading, pallet work and land clearing and shipped free to the lower 48.
What the numbers mean on a Mustang 1750RT-2
- 320x86x54 — 320 mm tread width (about 13"), 86 mm pitch, 54 links
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the Mustang 1750RT-2
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
- Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.
Undercarriage parts for the Mustang 1750RT-2
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
- Drive sprocket — ID2711
- Rear idler — 275574

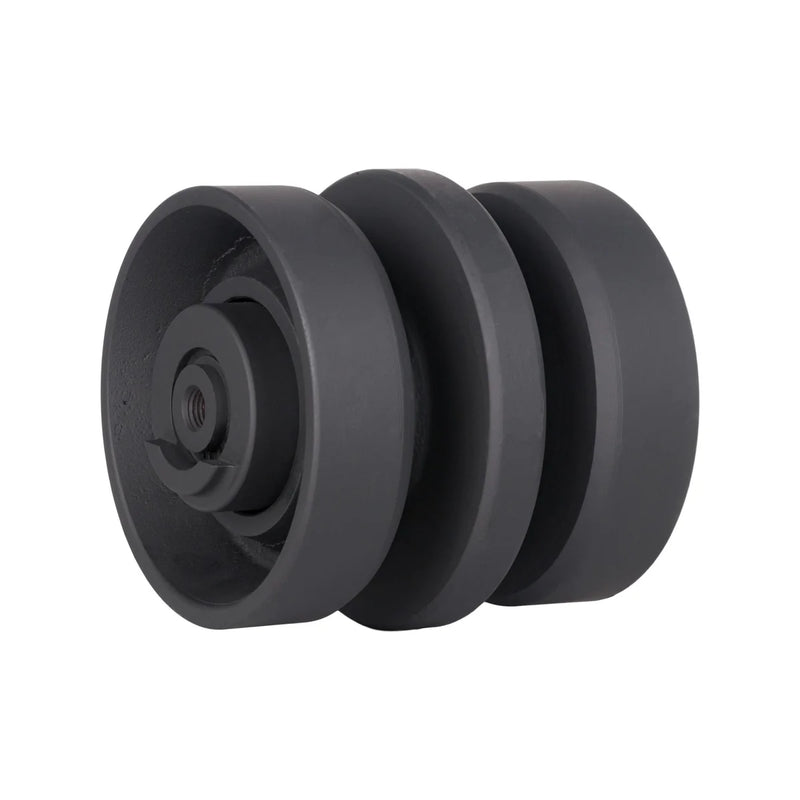

- Bottom roller — ID2802
- Undercarriage kit
How these wear
CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 320x86x54 shows up on machines from several makers. If you run any of these alongside the Mustang 1750RT-2, it is the same belt:
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
