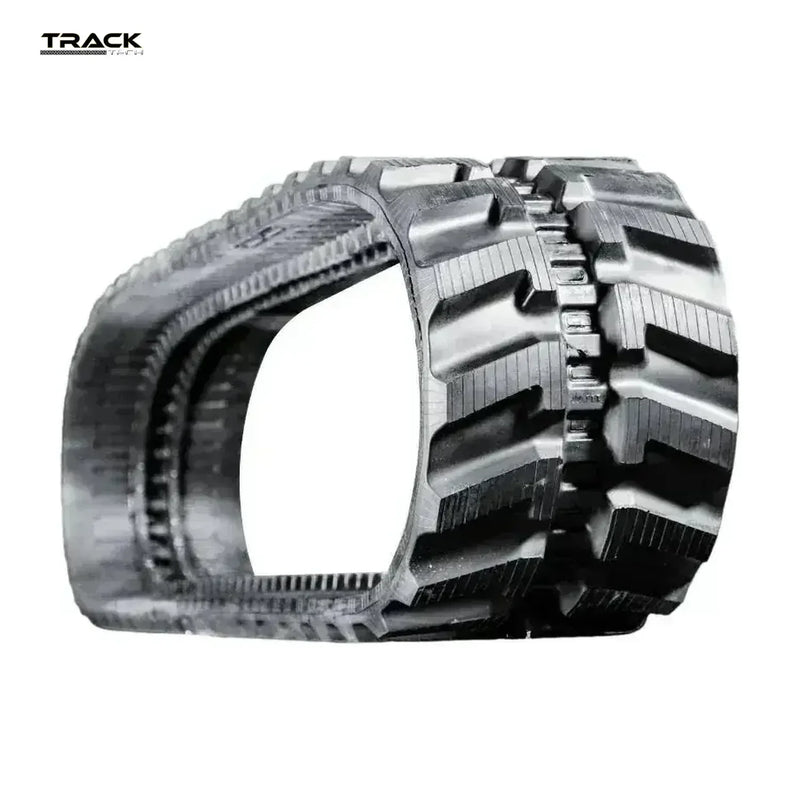

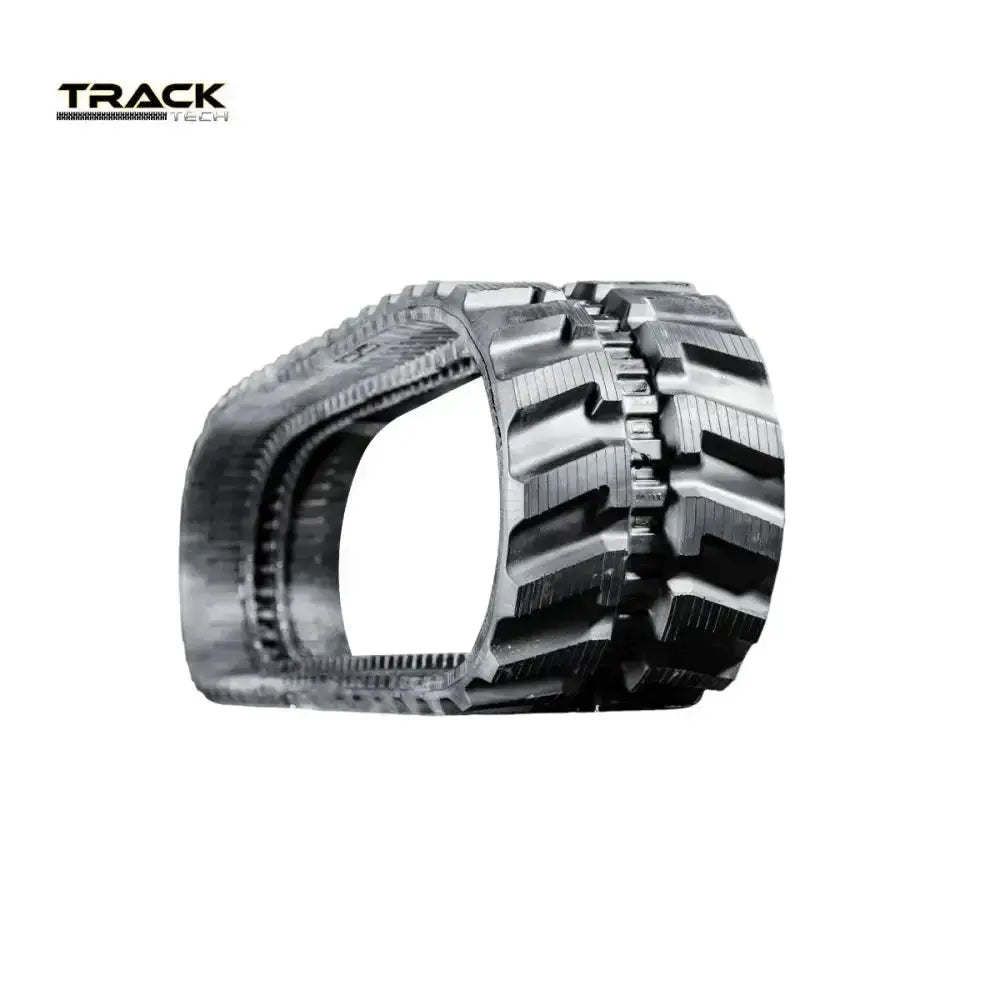

Takeuchi TB135 Rubber Tracks

Premium replacement Takeuchi TB135 rubber tracks and undercarriage parts, built to OEM specifications in size 300x52.5Wx86 and backed by a 24-month warranty. Free freight to the lower 48.

Takeuchi TB135 — Track Spec Sheet

  • Track size: 300x52.5Wx86
  • Width: 300 mm
  • Pitch: 52.5 mm
  • Links: 86
  • Guide: Wide guide

Tread Patterns

  • Directional — The excavation specialist — directional tread optimized for digging and slope work.

Complete the Takeuchi TB135 Rebuild

Every wear part for the Takeuchi TB135 undercarriage, fit-verified and ready to ship:

Same Track, Other Machines

The 300x52.5Wx86 track size is shared across these models — same track, verified cross-fit:

Built to Outlast OEM

  • Endless high-tensile cables — single-cure construction with no weak splice point.
  • Precision OEM alignment — a reinforced roller path keeps running smooth and vibration low.
  • Continuous steel cord — up to 40% stronger than typical aftermarket tracks, resisting stretch and de-tracking.
  • Drop-forged steel links for strength where the track meets the drive system.

Ready to roll? Buy your Takeuchi TB135 undercarriage online now — or reach a track specialist at (850) 816-7898. Use the Track Finder to confirm the right build.

Free US Shipping100% Fit GuaranteePremium OEM Quality

Find Your Track Call TrackTECH

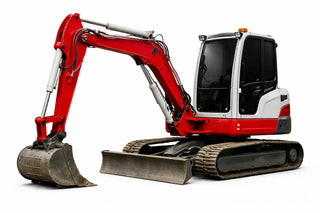

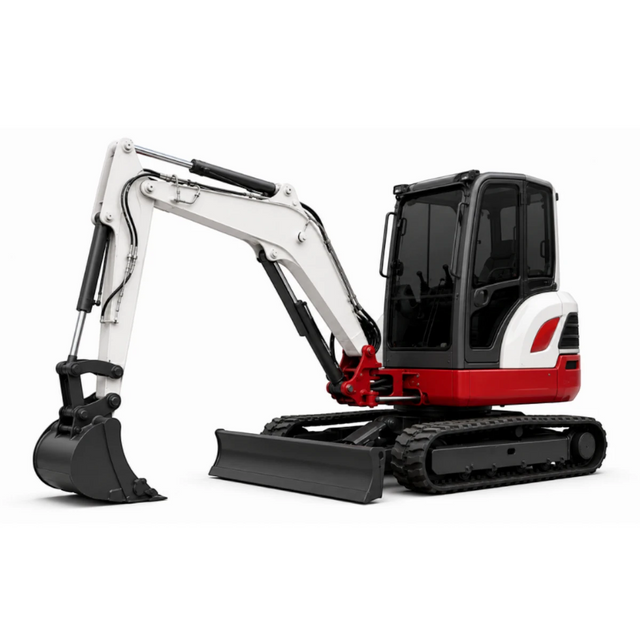

Takeuchi TB135 mini excavator

Track sizes

Heavy-Duty Rubber Tracks for TB135

|

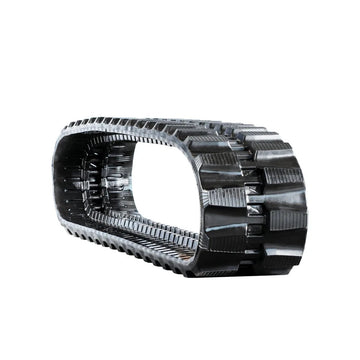

  • Heavy Duty 300x52.5Wx86 excavator rubber track
    Takeuchi TB135 300x52-5wx86
    • Heavy Duty | 300x52-5wx86
    $1,007.50$968.75

    In stock

    Add to quote
  • Bridgestone 350x52.5x86 Rubber Track — Bridgestone branded hero
    Takeuchi TB135 350x52.5x86
    • Bridgestone | 350x52.5x86

    Request quote

    Add to quote

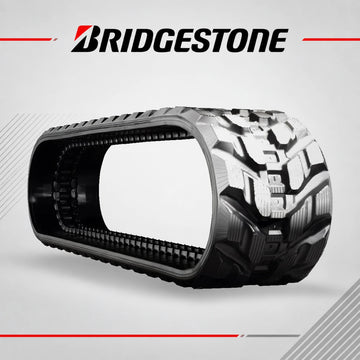

  • Bridgestone 300x52.5Wx86 Rubber Track — Bridgestone branded hero
    Takeuchi TB135 300x52.5Wx86
    • Bridgestone | 300x52.5Wx86
    $1,431.30$1,376.25

    In stock

    Add to quote

  • 100% Virgin Rubber

    Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.

  • Continuous Steel Cords

    Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.

  • Drop-Forged Links

    Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.

  • Corrosion Resistant

    The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.

  • Reinforced Sidewalls

    Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.

  • Low-Vibration Tread

    Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.

Takeuchi TB135 fitment data

Machine Performance

Operating Weight7831 lb
Horsepower27 HP

Hydraulics & Lift

Standard Flow19 GPM

Fitment & Part Numbers

Track Size350x52.5x86, 300x52.5Wx86
SprocketSP04710-00600
IdlerFI03714-00000
RollerTR03313-06100

Frequently Asked Questions

Common fitment, shipping, and rubber track replacement questions

Why order Takeuchi TB135 tracks from TrackTECH?
We're a dedicated heavy-duty parts supplier. Skip the OEM parts counter — dealer-level HD tracks without the dealer logo or the dealership markup. We confirm the fit. We get the order moving. Exact-match tracks and undercarriage for the Takeuchi TB135 when sizes are listed.
Are these tracks guaranteed to fit my Takeuchi TB135?
Call us or send make and model on the quote form. Don't guess a size off a similar machine.
How fast can I get replacement parts?
We ship free to the lower 48. In-stock means it's ready to go. Call or confirm at checkout if you need it on a deadline.
Which tread patterns are available for the Takeuchi TB135?
Tread options are on the track rows above. Call if you want help matching pattern to the job.
What track widths fit the Takeuchi TB135?
The listed sizes run 350 mm, 300 mm.
