How Rubber Tracks Are Made — From Raw Material to Finished Track
A rubber track looks simple from the outside — black rubber with lugs on the tread face and drive lugs on the inside. But the manufacturing process behind a high-quality track involves precision engineering, specialized materials, and process control that directly determines how long your track will last on machines like the CAT 289D3, Bobcat T770, or Kubota SVL75-2.
What are rubber tracks made of?
A finished rubber track is a composite structure with four primary components:
- Rubber compound: The outer body and tread lugs. Premium tracks use virgin natural rubber blended with synthetic additives for abrasion resistance, heat dissipation, UV stability, and flexibility. Cheap tracks use recycled rubber or low-grade compounds that chunk and crack prematurely.

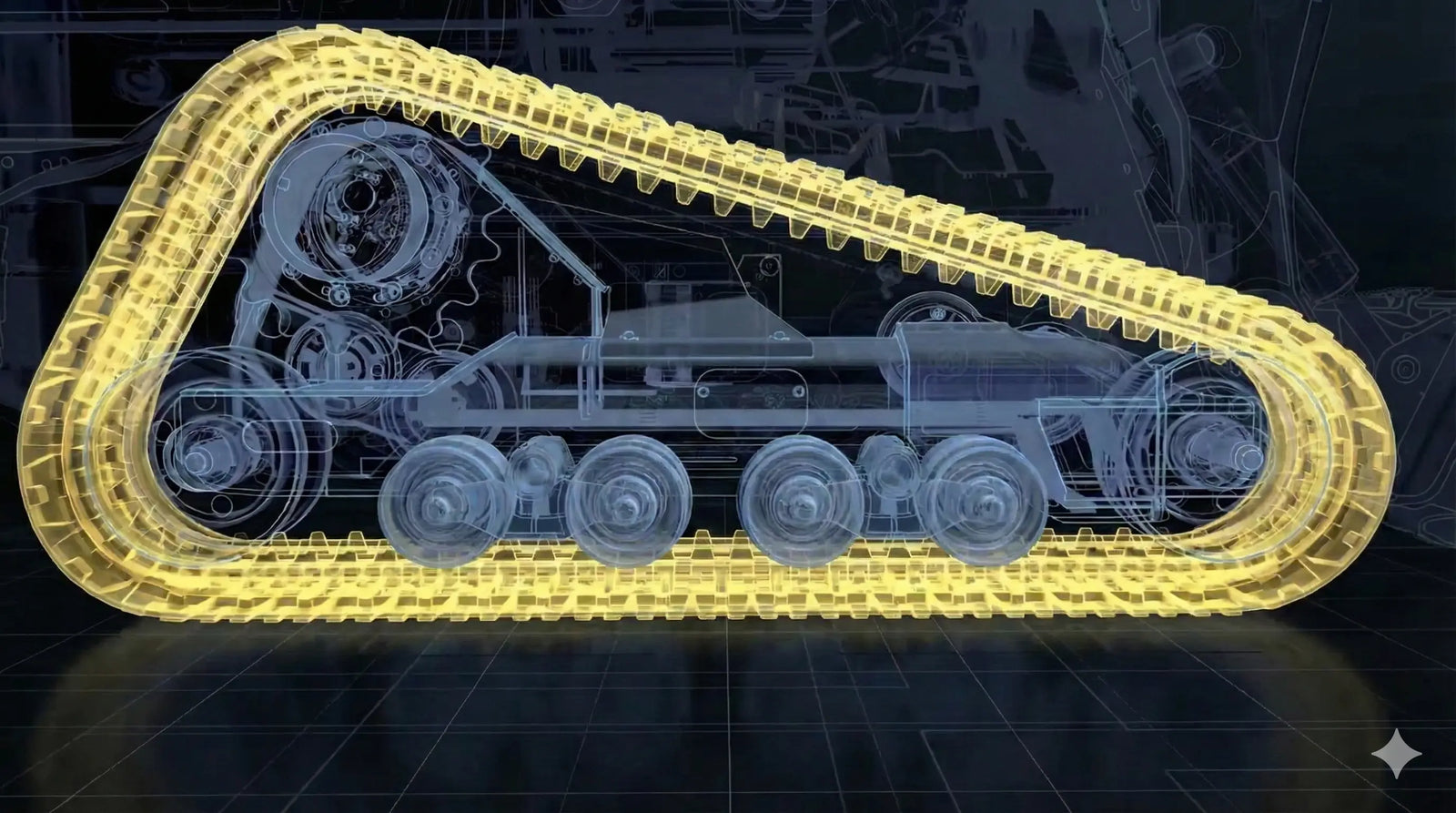

- Continuous steel cord: A single continuous high-tensile steel cable wound in a spiral pattern through the track body. This is the backbone — it provides tensile strength, prevents stretching, and maintains pitch accuracy over thousands of hours.
- Steel drive lugs (guides): Drop-forged or cast steel inserts embedded in the inside of the track that engage the sprockets and rollerss. These are the connection point between the track and your machine's undercarriage. See our guide type explainer for more on guide types.
- Carcass layers: Reinforcing fabric or nylon layers between the rubber and steel cord that improve adhesion and distribute stress across the track body.
How is a rubber track manufactured?
The manufacturing process follows these stages:
1. Steel cord winding
High-tensile steel cable is wound continuously around a mandrel in a precise spiral pattern. The key word is continuous — premium tracks use a single unbroken cable with no joints. This eliminates weak points where tracks typically fail. Cheap tracks use jointed or overlapping cord segments that create stress concentration points.
2. Guide lug placement
Drop-forged steel guide lugs are positioned at exact pitch intervals along the cord assembly. Each lug is dipped in a bonding adhesive before placement to ensure permanent adhesion to the rubber. The pitch spacing must be precise — even a 1mm deviation across 50+ lugs compounds into misalignment with the sprockets.
3. Rubber layup
Uncured rubber sheets are layered over and around the cord-and-guide assembly. The tread pattern is formed by the mold cavity. Multiple rubber layers build up the tread depth, sidewall thickness, and roller path surface. Premium manufacturers use different rubber compounds for the tread face (high abrasion resistance) and the track body (high flexibility).
4. Single-cure vulcanization
The entire assembly is placed in a heated mold and vulcanized under pressure and temperature. This is called single-cure technology — the rubber bonds chemically to the steel cord and guide lugs in one continuous process. Single-cure eliminates the delamination failures common in multi-stage manufacturing where components are bonded separately and joined later.
5. Quality inspection
Finished tracks undergo dimensional inspection (width, pitch accuracy, lug count), visual inspection for defects, and in some facilities, X-ray inspection of the internal steel cord pattern. ISO 9001 certified facilities maintain documented quality records for every production batch.
What makes the manufacturing process matter?
The difference between a track that lasts 2,000 hours and one that fails at 500 hours comes down to manufacturing quality. Continuous steel cord eliminates joint failures. Proper vulcanization prevents delamination. Precision pitch spacing prevents sprocket wear. Virgin rubber compounds resist the abrasion, UV, and heat exposure that tracks face daily.
TrackTECH tracks are built using continuous steel cord, single-cure vulcanization, drop-forged steel guides, and ISO 9001 certified processes. The result is a track that matches or exceeds OEM quality at a fraction of dealer pricing. See our OEM vs aftermarket comparison for a detailed breakdown.
Shop replacement tracks for your machine in the Track Finder. free shipping + 24-month warranty on every order.
Frequently Asked Questions
What are rubber tracks made of?
Rubber tracks are made of four components: a virgin rubber compound body and tread, continuous high-tensile steel cord reinforcement wound in a spiral pattern, drop-forged steel drive lugs (guides), and reinforcing carcass layers. Premium tracks use single-cure vulcanization to bond all components into one unit.
How are rubber tracks manufactured?
Manufacturing involves five stages: steel cord winding on a mandrel, placement of drop-forged guide lugs at precise pitch intervals, rubber layup around the cord assembly, single-cure vulcanization under heat and pressure, and quality inspection. ISO 9001 certified facilities maintain documented quality control throughout.
What is continuous steel cord in rubber tracks?
Continuous steel cord means a single unbroken high-tensile steel cable wound in a spiral through the entire track body. This eliminates the joint weak points found in cheap tracks that use overlapping or segmented cord. Continuous cord provides approximately 40% greater tensile strength and prevents catastrophic track failure.
What is single-cure vulcanization?
Single-cure vulcanization is a manufacturing process where the rubber, steel cord, and guide lugs are bonded together in one continuous heating cycle. This creates a chemical bond between all components, preventing the delamination failures that occur in multi-stage manufacturing where parts are bonded separately.
