Bobcat E10 Rubber Tracks & Parts

The Bobcat E10 is cataloged in more than one track width — 180 / 250 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.

Which width fits your Bobcat E10

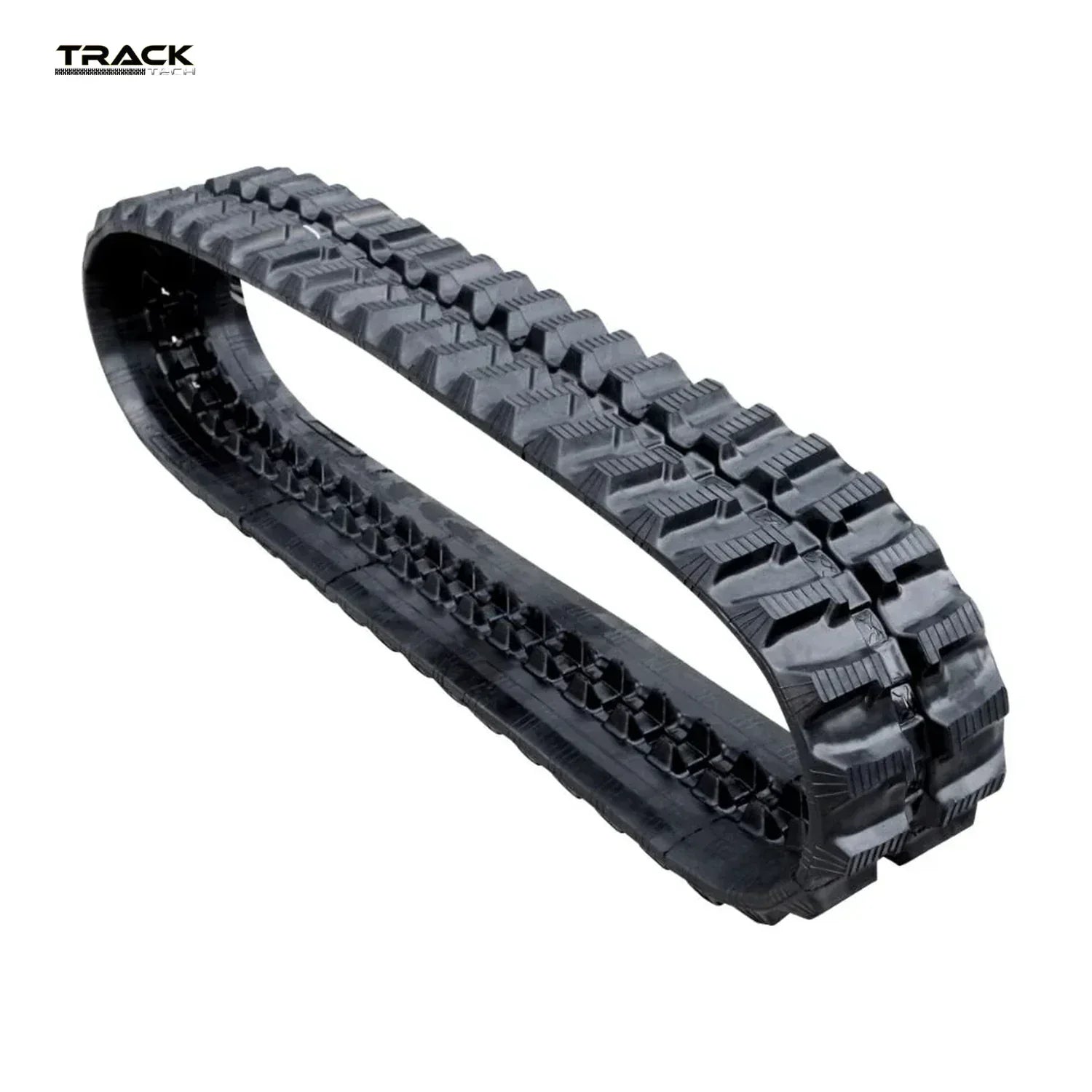

• 250x72x39 — 250 mm (10") wide, 72 mm pitch, 39 links
• 180x72x39 — 180 mm (7") wide, 72 mm pitch, 39 links

These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.

Tread choice for the Bobcat E10

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

• Directional — digging, trenching and slope work. The standard excavator tread
• C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

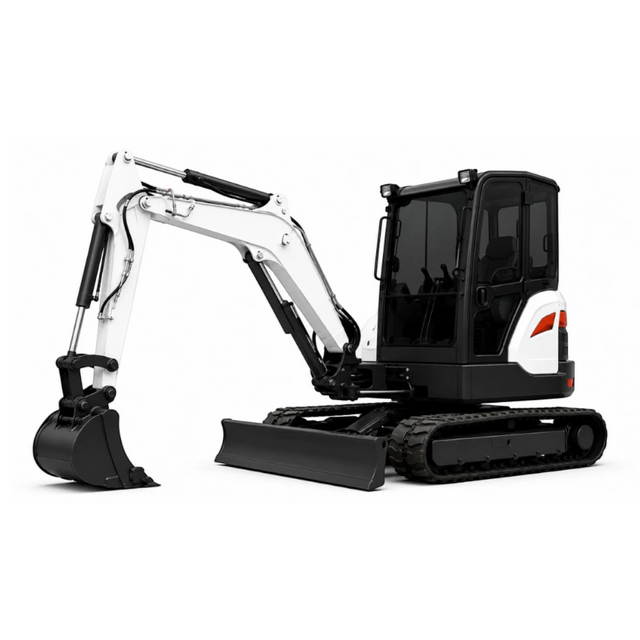

Bobcat E10 at a glance

• Operating weight — 2,524 lb
• Engine — 10 hp

Undercarriage parts for the Bobcat E10

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

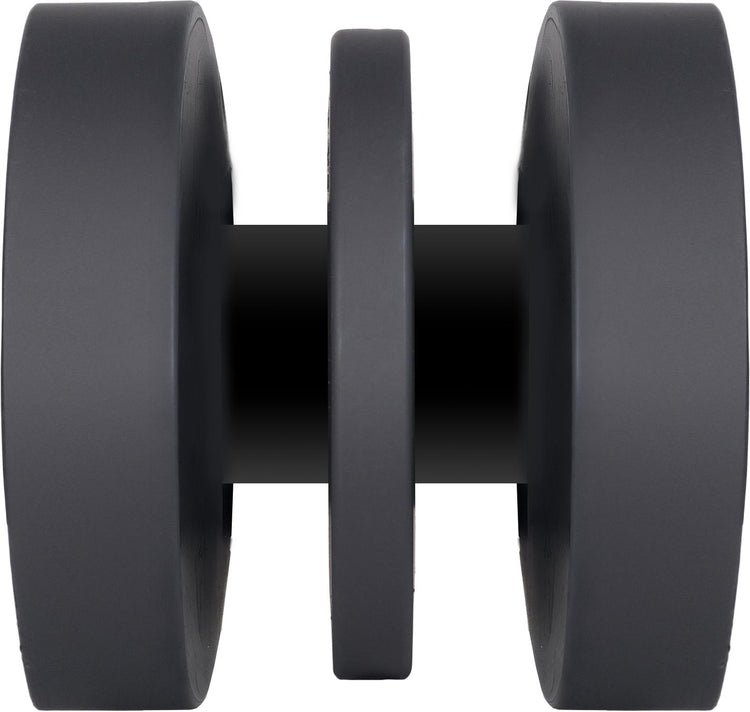

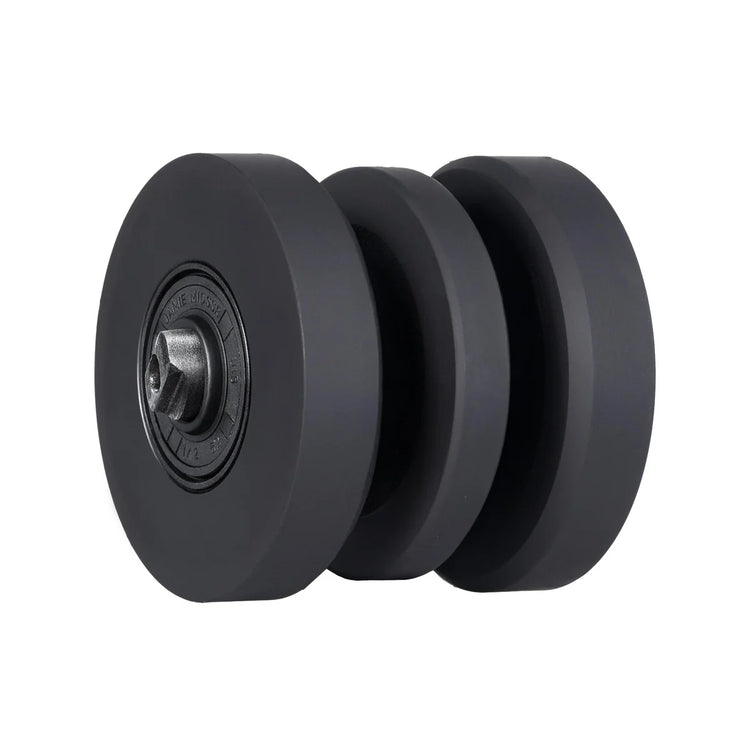

• Bottom roller — 7165324

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Bobcat E10, it is the same belt:

• Bobcat 418
• Bobcat E08
• Bobcat MT50
• Bobcat MT52
• Bobcat MT55
• Bobcat X418
• Boxer 530DX
• Canycom SC30
• Canycom SC45
• Case TF300

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
