Replacing a rubber track on a compact track loader involves a very heavy component, a tensioned undercarriage, and machine-specific service procedures. This guide explains the general workflow, but the operator/service manual for your exact machine controls the lifting points, tension-release procedure, tension specification, and safety steps.
Before You Start
- Park on firm, level ground.
- Lower the attachment and follow the manufacturer's shutdown and lockout procedure.
- Use lifting equipment, stands, and blocking rated for the machine and the load.
- Keep people clear of the suspended machine and track.
- Use the machine manual to identify the correct track-tension relief procedure.
A rubber track can weigh hundreds of pounds. Do not rely on a generic track weight or a fixed “two-person” rule to determine whether the job can be handled safely.

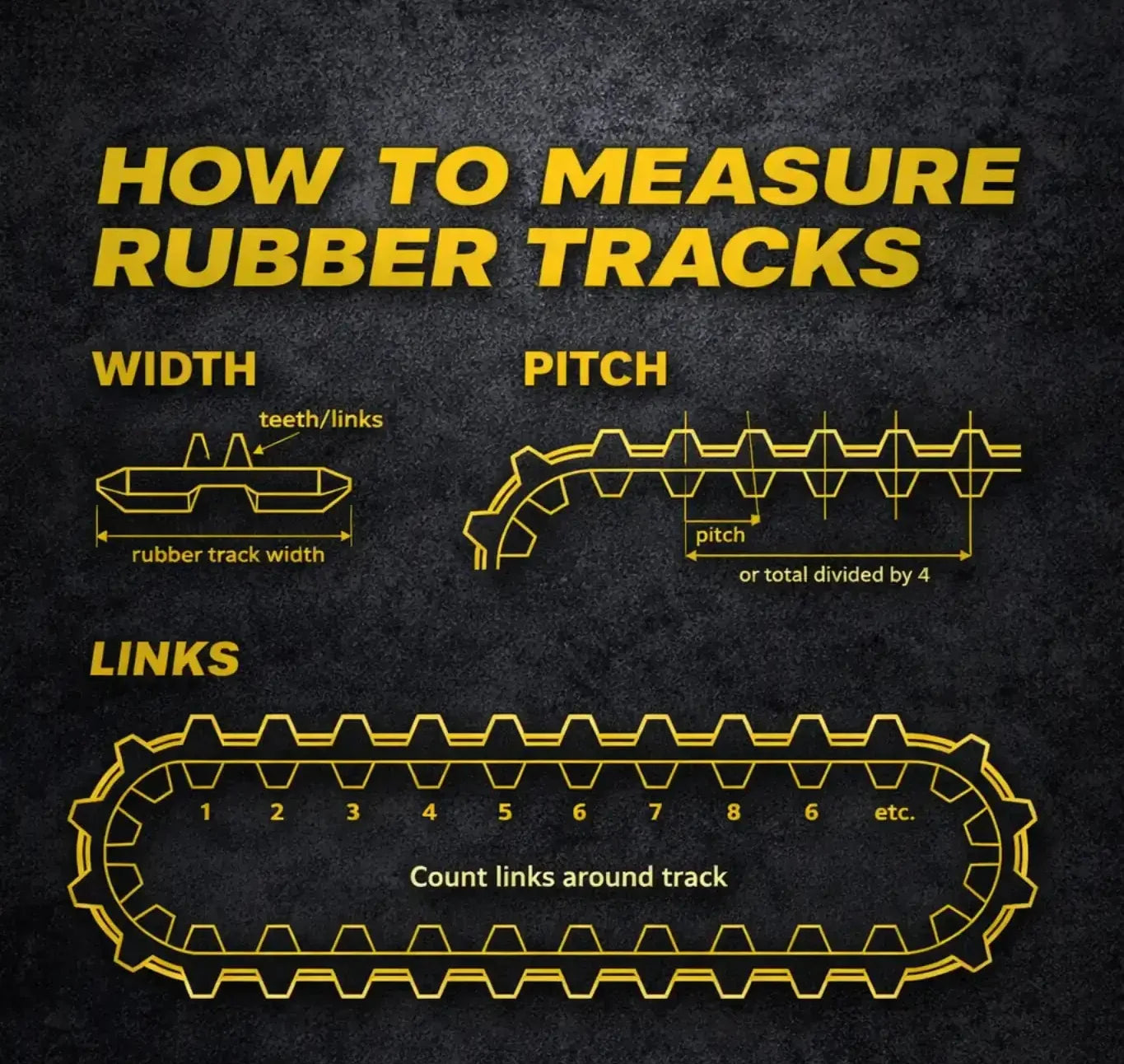

1. Confirm the Replacement Track Before Removing the Old One
he machine. If the old track marking is readable, compare it to the replacement.
2. Raise and Support the Machine Using the Approved Procedure
Use only manufacturer-approved lifting and support points. A hydraulic attachment or jack by itself is not a substitute for properly rated mechanical support. Never work under an unsupported machine.
3. Release Track Tension Using the Machine Service Procedure
CTLs use grease-charged or other tensioning systems, but the relief method varies. Do not assume a grease gun can be used “in reverse.” Locate the specified relief valve, fitting, or adjustment mechanism in the machine manual and follow the stated precautions. Grease under pressure can cause serious injection injury.
4. Remove the Old Track
Once tension is safely relieved and the machine is securely supported, work the track off the idler and drive components using the method specified for the machine. Keep hands, feet, and bystanders away from pinch points. Use suitable mechanical assistance rather than forcing a heavy track manually.
5. Inspect the Undercarriage
- Sprocket tooth wear
- Idler flange and bearing condition
- Roller leakage, play, or binding
- Debris packed into the undercarriage
- Visible alignment or structural issues
Replace parts based on measured wear and manufacturer limits. There is no universal rule that sprockets should be replaced every other track change or that idlers always last a fixed number of track sets.
6. Install and Seat the New Track
Position the replacement track so the internal guides and drive engagement are correctly seated on the sprocket, rollers, and idlers. Use lifting equipment as needed. If the tread is directional, follow the track manufacturer's orientation marking.
7. Set Track Tension to the Exact Machine Specification
Do not use a universal “1 to 1.5 inch sag” rule. Track-tension measurement location, machine position, acceptable sag, and grease-adjuster procedure vary by model. Set it to the service specification for the exact CTL.
8. Recheck After Installation
Once the machine is safely lowered, operate it slowly in a controlled area and verify that the track remains seated and tracks correctly. Reinspect tension according to the manufacturer or track supplier's break-in guidance.
When to Call a Technician
If the tensioner is damaged, the track repeatedly de-tracks, the undercarriage is badly worn, the machine cannot be securely supported, or the correct service procedure is unclear, use a qualified equipment technician rather than improvising.
