Rubber Track Guide for Field Service Technicians
This reference covers everything a field service technician needs to know about rubber tracks on compact track loaders, skid steers, and mini excavators. Whether you're doing routine fleet inspections, emergency field repairs, or preparing machines for resale, this guide gives you the specs and procedures to get it right the first time.
Pre-inspection: what to check before you start
- Machine make, model, and serial number — undercarriage specs change between serial number breaks
- Current track size stamped on the inside of the track (width × pitch × links)
- Guide type: Block (B), N-Guide, W-Guide, T-Guide, or AV (see our guide type explainer)
- Hours on the machine and hours since last track change (if known)
- Operating environment — hard surface, mixed, soft ground, demolition

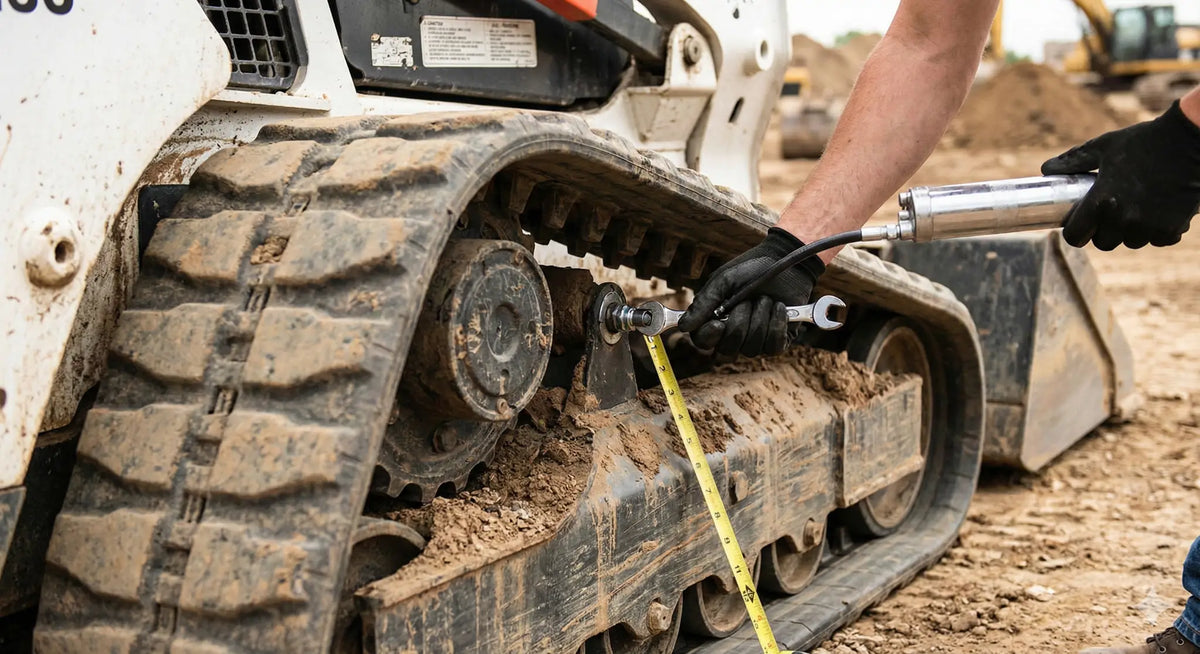

Track tension specification
The universal spec across CAT, Bobcat, Kubota, John Deere, and most other manufacturers: 1 to 1.5 inches (25–38mm) of vertical deflection at the midpoint between front idler and rear sprocket, measured with the machine on flat ground and a straight edge across the bottom run of the track.
- Over-tensioned: Accelerated sprocket wear, idler bearing failure, reduced track life, increased fuel consumption
- Under-tensioned: Derailment risk, uneven lug wear, edge damage, track stretching
- Mud/soft ground adjustment: Run slightly looser (up to 2 inches) to allow material to shed — retension when returning to hard surfaces
Tread depth measurement and remaining life
Measure tread depth at the center of a lug using a depth gauge or ruler:
- New track: ~25mm (1 inch) tread depth
- Half-life: ~16mm (5/8 inch) — approximately 50% remaining
- Replace threshold: 6mm (1/4 inch) or when steel cord becomes visible
- Critical: Any exposed steel cord = immediate replacement regardless of tread depth
Measure at three points around the track. Uneven wear indicates alignment issues, worn idlerss, or a bent undercarriage component — address the root cause before installing new tracks.
Undercarriage component inspection
At every track swap, inspect all four undercarriage components:
- sprockets: Check for hooked, pointed, or worn teeth. Replace every other track change (~3,000–4,000 hrs). Worn teeth cause track slippage and accelerated wear.
- idlers (front): Check for wobble, bearing noise, seal leaks, and grease contamination. A failing front idler causes track misalignment and derailment.
- Rear idler: Check bearing play and seal condition. The rear idler maintains tension in conjunction with the grease-charged adjuster.
- rollerss (bottom): Check for flat spots, grinding noise, and bearing play. Worn rollers allow the track to sag and contact the undercarriage frame.
Quick reference: common track sizes by machine
- CAT 259D3: 320x86x53 or 400x86x53 — Block guide
- CAT 289D3: 450x86x56 — Block guide
- CAT 299D3: 450x86x60 — Block guide
- Bobcat T590: 320x86x49 or 400x86x49 — Block guide
- Bobcat T770: 450x86x55 — Block guide
- Kubota SVL75-2: 450x86x58 — Block guide
- John Deere 333G: 450x86x58 — Block guide
- Takeuchi TL12R2: 450x86x60 — T-Guide (Takeuchi specific)
For a complete fitment database covering 1,300+ models, use the Track Finder.
Tread pattern selection for fleet techs
When a customer asks "which tread should I run?" — the answer depends on their primary work surface. Quick decision matrix:
- 70%+ hard surface (asphalt, concrete, gravel): C-Block
- Mixed terrain, all-season: Zig-Zag
- Turf, landscaping, snow: Straight Bar
- Deep mud, forestry, extreme off-road: X-Terrain
Full comparison in our tread pattern guide.
Troubleshooting common track issues
Track keeps derailing: Check tension first. If tension is correct, inspect idlers for wobble and check for bent frame rails. Stretched tracks that won't hold tension need replacing.
Uneven wear on one side: Alignment issue — usually a worn or damaged idler, bent frame, or debris packed in the undercarriage on one side.
Premature chunking/tearing: Wrong tread for the application (running Straight Bar on demolition), or track tension too tight causing excessive sprocket engagement force.
Excessive vibration: Uneven lug wear, flat-spotted rollers, or a damaged sprocket tooth. Inspect all undercarriage components.
Documentation for fleet managers
Record at every inspection: machine hours, track hours, tread depth at 3 points, tension measurement, undercarriage component condition, and any corrective action taken. This data drives replacement forecasting and cost-per-hour calculations. See our cost guide for fleet budgeting.
