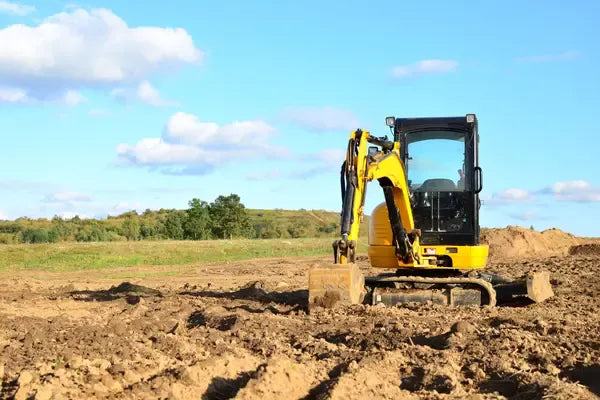

Mini Excavator Rubber Track Sizes Explained (by Machine Width)
Mini excavators cover an enormous range — from one-ton machines that fit through a garden gate to eight-ton machines doing real utility work — and their rubber tracks scale right along with them. That is exactly why ordering a replacement gets confusing: a "mini excavator track" can be anywhere from about 180mm wide to 450mm wide, and the only way to get it right is to know your specific machine's size. This guide explains how mini excavator track sizes work, what to expect by machine class, and how to confirm your exact fitment before you buy.
How Mini Excavator Track Sizes Are Written
Like all rubber tracks, mini excavator tracks are described by three numbers: width x pitch x links.
- Width — overall width in millimeters. This is what scales most with machine size.
- Pitch — distance between drive lug centers, in millimeters.
- Links — total drive lug count around the loop.
There is one extra wrinkle on excavators that skid steer owners do not deal with: guide type. The lugs that center the track on the rollers come in different shapes — sometimes described by counts like the number of lugs, or by guide style. Two tracks can share width, pitch, and links but use different guide configurations. So on excavators especially, verify off the molded size and the physical track. For the full method, see the track size chart.
Mini Excavator Track Sizes by Machine Class
Track width scales with operating weight. Here is a general guide by machine class. These are ranges, not exact sizes — every model is different, so confirm against your machine.
| Machine Class | Approx. Operating Weight | Common Track Width Range |
|---|---|---|
| Micro / 1-ton | ~1 ton | 180mm (7") |
| 1.5 - 2 ton | ~1.5 - 2 tons | 230mm (9") |
| 2.5 - 3.5 ton | ~2.5 - 3.5 tons | 300mm (12") |
| 4 - 5 ton | ~4 - 5 tons | 350-400mm (14-16") |
| 6 - 8 ton | ~6 - 8 tons | 400-450mm (16-18") |
As the machine gets heavier, the track gets wider to keep ground pressure down. A micro excavator on a 180mm track and an eight-ton machine on a 450mm track are doing the same job — spreading weight — just at different scales.
Micro and 1-Ton Excavators
These smallest machines run narrow tracks, commonly around 180mm (7"), so they can squeeze into tight spaces and through gates. Because they are light, the tracks are smaller and lighter to handle.
1.5 to 3.5 Ton Excavators
This is the heart of the rental and contractor market. These machines commonly run tracks in the 230mm to 300mm range. There is a lot of model variety in this class, so this is exactly where double-checking your exact size pays off.
4 to 8 Ton Excavators
The larger minis step up to 350mm, 400mm, and 450mm tracks to support their weight and reach. These tracks take more abuse and benefit most from correct tension and an undercarriage that is in good shape. Browse our mini excavator rubber tracks to see fitments across these classes.
Why You Can't Order by Brand Alone
A common mistake is ordering "a track for a Kubota mini" or "a Bobcat excavator track" without the size. Every manufacturer builds machines across the full weight range, so brand alone tells you almost nothing about the track. A Kubota one-ton and a Kubota eight-ton are not remotely the same track. Always work from the size, not the badge.
It is also worth knowing how mini excavators differ from compact track loaders — they use different undercarriage geometry and guide systems. If you run both, our overview of mini excavator vs CTL tracks is worth a read.
How to Confirm Your Exact Mini Excavator Track Size
-
Read the molded size on your worn track. Look between the lugs or along the edge for a stamp like
300x52.5x80or230x48x66. Clean the rubber first — excavator tracks pack with dirt. - Count the links. No legible stamp? Count the drive lugs around the inside of the loop for your link count.
- Note the guide configuration. Check how the centering lugs are shaped and arranged. This matters on excavators.
- Have your model and serial ready. Send your make, model, year, and a photo of the old track to (850) 816-7898 and we will confirm fitment, guide type and all.
Maintenance Notes for Excavator Tracks
A few things specific to mini excavators:
- Watch tension closely. Excavators de-track more easily than loaders when tracks run loose, especially when swinging on a slope or climbing onto a trailer.
- Don't spin against curbs and walls. Side-loading the track edge is a top cause of premature wear and de-tracking.
- Clean out packed mud. Material packed in the undercarriage stresses the track and rollers.
- Inspect rollers and idlers. Replacing tracks on a worn undercarriage is throwing money away.
FAQ
What is the smallest mini excavator track size? Micro and one-ton machines commonly run around 180mm (7") wide. Exact size depends on the model.
What is the widest mini excavator track? Larger 6 to 8 ton minis commonly run up to 450mm (18"). Beyond that you are into larger excavator territory.
Why does my excavator track have a different number format than a skid steer track? Excavator pitch is often a decimal (like 52.5mm) and guide configuration is part of the spec. That is normal — just match all the numbers and the guide type.
Can I figure out my size from the model number alone? Not reliably. Manufacturers build the same model line across weight classes. Always verify off the molded size on your track.
Order the Right Mini Excavator Track
Match the width, pitch, links — and the guide type — and you are set. Browse our full lineup of mini excavator rubber tracks, and use the track size chart to cross-reference. Not sure which size your machine takes? Call our techs at (850) 816-7898 — excavator fitment is our specialty and we will confirm it before you order. Heavy duty comes standard, fast free shipping, 24-month warranty.
