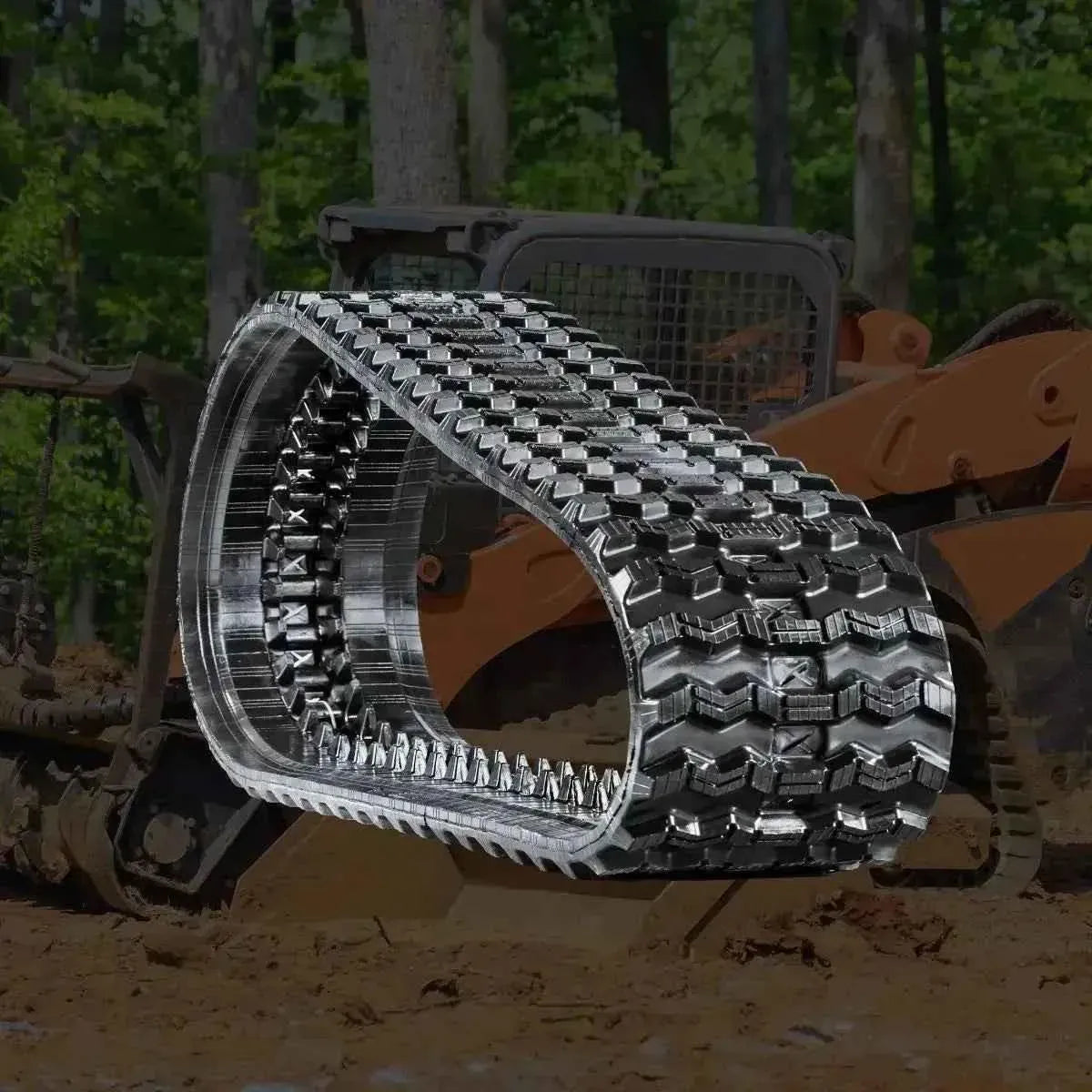

The Complete Rubber Track Buying Guide

Introduction

Replacing rubber tracks isn't cheap. A set of CTL tracks runs $2,000-$4,000, and the wrong choice means wasted money, reduced productivity, and early replacement.

This guide covers everything contractors need to know before buying replacement tracks—from measuring your machine to choosing tread patterns to spotting quality differences that actually matter.

Part 1: Understanding Track Sizes

How to Read a Rubber Track Size

Rubber track sizes follow a standard format: Width x Pitch x Links

Example: 450x86x55 - 450 = Track width in millimeters (17.7 inches) - 86 = Pitch (distance between links) in millimeters - 55 = Number of links in the track

Why This Matters: Getting any of these numbers wrong means the track won't fit. Close doesn't count—a 450x86x52 will not fit a machine that needs 450x86x55.

How to Find Your Track Size

Method 1: Check the Existing Track Look for stamped numbers on the inside of your current track. Most manufacturers stamp the size on the rubber.

Method 2: Measure It - Width: Measure across the track face - Pitch: Measure center-to-center between three links, divide by 2 - Links: Count total links in the track

Method 3: Look Up Your Model Use a track fitment guide (like our Track Finder) to match your machine make/model to the correct track size.

Understanding Guide Types

The "guide" refers to how the track interfaces with the undercarriage. Common types:

Guide	Description	Common Machines
N-Guide	Narrow center guide	Kubota mini excavators
W-Guide	Wide center guide	Takeuchi, some Bobcat
B-Guide	Block-style guide	Kubota CTLs
C-Guide	Caterpillar style	CAT, Bobcat, John Deere
K-Guide	Komatsu style	Komatsu excavators
T-Guide	Takeuchi/older style	Takeuchi, Mustang, Gehl

Critical: Tracks with different guide types are NOT interchangeable, even if width/pitch/links match.

Part 2: Choosing the Right Tread Pattern

Your tread pattern determines traction, ride quality, wear rate, and surface damage. Here's what actually works for each application:

Multi-Bar / Straight-Bar Pattern

Best For: General construction, excavation, grading, landscaping Pros: Smooth ride, good all-around traction, self-cleaning, moderate wear rate Cons: Less aggressive than specialty patterns Surface Damage: Low to moderate

The default choice for contractors who work varied terrain and want predictable performance.

C-Lug Pattern

Best For: Slopes, loose material, land clearing, forestry Pros: Excellent edge grip, strong forward/reverse traction, self-cleaning Cons: Slightly rougher ride than multi-bar Surface Damage: Moderate

Popular factory pattern on CAT and Bobcat. Great all-arounder with extra grip.

Block Pattern

Best For: Demolition, concrete, rocky terrain, recycling yards Pros: Maximum puncture resistance, longest wear life on abrasive surfaces Cons: Less traction in soft material, rougher ride Surface Damage: Low

When durability beats traction. The choice for high-abuse environments.

Staggered Block Pattern

Best For: Mixed conditions, road work, varied terrain Pros: Balance of block durability and multi-bar traction Cons: Jack of all trades, master of none Surface Damage: Low to moderate

Good compromise when you can't predict what you'll encounter.

Zig-Zag / Z-Pattern

Best For: Mud, snow, soft soil, wet conditions Pros: Highest traction in soft material, excellent self-cleaning Cons: Faster wear on hard surfaces, aggressive surface disturbance Surface Damage: High

Specialty pattern for soft-ground work. Not for finished surfaces.

Turf / Smooth Pattern

Best For: Finished lawns, golf courses, sports fields Pros: Minimal surface damage, won't tear turf Cons: Very limited traction, fast wear Surface Damage: Very low

Only for applications where surface protection is the priority.

Part 3: Quality Indicators That Actually Matter

Not all rubber tracks are created equal. Here's how to spot the difference:

Steel Cord Construction

Continuous Wound (Better) A single steel cord wraps through the entire track with no joints. Consistent strength, no weak points.

Spliced/Overlapped (Cheaper) Steel cords are joined at overlap points. These joints are failure points that can separate under load.

Ask the seller: "Are your tracks continuous wound or spliced?"

Rubber Compound Quality

Premium Indicators: - High natural rubber content (vs. synthetic) - Carbon black concentration for UV/heat resistance - Consistent durometer (hardness) rating

What to Watch For: - Unusually low prices often mean inferior rubber - "Heavy duty" without specifications is marketing, not quality - Tracks that crack in cold weather = low-quality compound

Link and Core Construction

Forged Steel Links (Better) Heat-treated steel links resist bending and deformation under load.

Cast Steel Links (Cheaper) More prone to breaking under stress, especially in cold conditions.

Rubber Thickness

More rubber between the cords and the surface means longer life. Quality tracks have: - Thicker lug bases - More material over the steel cords - Deeper tread depth when new

Compare tread depth specs if available. 25-30mm is standard; premium tracks may offer more.

Part 4: Price vs. Value Analysis

The Real Cost of Cheap Tracks

Scenario: Budget tracks at $800/pair vs. quality tracks at $1,400/pair

Factor	Budget Tracks	Quality Tracks
Purchase price	$800	$1,400
Expected life	800 hours	1,600 hours
Cost per hour	$1.00/hr	$0.875/hr
Downtime risk	Higher	Lower
Resale impact	Negative	Neutral

The Bottom Line: Quality tracks cost less per operating hour, reduce downtime, and don't hurt resale value.

What You're Paying For

$600-900 range: Entry level. Spliced cables, basic rubber compound, limited warranty. Fine for light-duty or short-term machines.
$1,000-1,500 range: Mid-tier. Continuous cables, decent compound, 12-24 month warranties. Good value for working contractors.
$1,500-2,000+ range: Premium/OEM. Best materials, longest warranties, sometimes brand-name recognition. Worth it for high-hour machines.

Part 5: When to Replace Your Tracks

Clear Replacement Signs

Exposed steel cords – Track has worn through the rubber
Cracking at lug bases – Rubber compound is failing
Missing or torn lugs – Structural damage, uneven wear ahead
Track won't hold tension – Stretched beyond adjustment range
Vibration or rough ride – Internal damage or uneven wear

Proactive Replacement Timing

Most contractors replace tracks at 1,200-2,000 hours depending on: - Application severity - Terrain type - Maintenance practices - Track quality

Pro Tip: Plan replacement before critical failure. A blown track mid-project costs more than scheduled replacement.

Part 6: Installation and Maintenance Tips

Proper Track Tension

Under-tensioned tracks: - Slip off the undercarriage - Wear unevenly - Reduce traction

Over-tensioned tracks: - Accelerate wear on all undercarriage components - Reduce track life by 20-30% - Increase fuel consumption

Check your operator's manual for manufacturer specs. Generally 1-1.5" of sag at midpoint.

Maintenance Best Practices

Clean undercarriage daily – Remove debris that packs between components
Check tension weekly – Adjust as tracks break in and stretch
Inspect for damage – Catch cuts and punctures before they spread
Avoid spin turns – Counter-rotation destroys tracks faster than any other behavior
Minimize hard surface operation – Every hour on concrete = multiple hours of normal wear

Conclusion: Making the Right Choice

The right rubber track for your machine depends on:

Correct sizing – Width, pitch, links, and guide type must match exactly
Appropriate tread pattern – Match the pattern to your primary application
Quality level – Balance upfront cost against operating cost and downtime risk
Proper installation and maintenance – Even the best tracks fail with poor care

Need help finding the right tracks for your machine? Use our [Track Finder Tool] or call us at [Phone Number].
