New Holland C180 Rubber Tracks & Parts

New Holland C180 tracks and undercarriage, sized 400x86x55 (400 mm wide × 86 mm pitch × 55 links). Made for grading, loading, pallet work and land clearing. Free freight, 24-month warranty.

What the numbers mean on a New Holland C180

  • 400x86x55 — 400 mm tread width (about 16"), 86 mm pitch, 55 links

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the New Holland C180

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces
  • Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
  • Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
  • Z-Max — soft and slippery ground. An aggressive zig-zag with more bite

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Undercarriage parts for the New Holland C180

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 400x86x55 shows up on machines from several makers. If you run any of these alongside the New Holland C180, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More New Holland undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

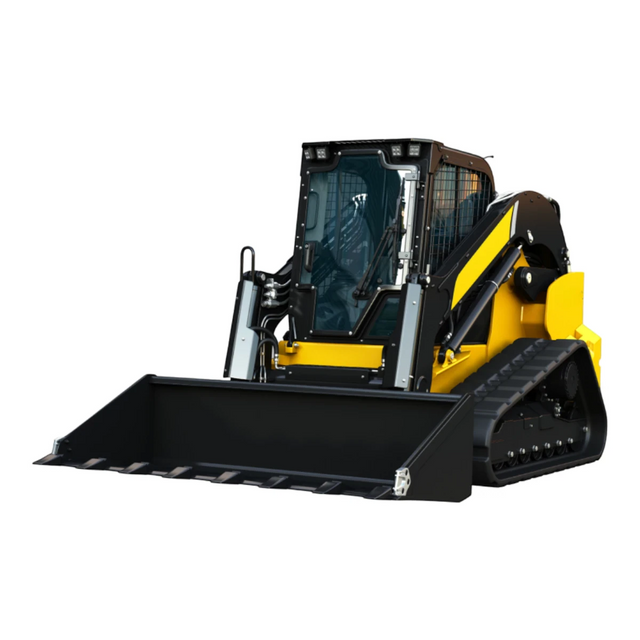

New Holland C180 compact track loader

Track sizes

Heavy-Duty Rubber Tracks for C180

  • 400x86x55 c block heavy-duty rubber track
    New Holland C180 400x86x55 C-Block
    • Heavy Duty | 400x86x55
    • Maximum Durability
    • Anti-Vibration
    • Cut & Tear Resistant
    $1,209.00$1,163.00

    In stock

    Add to quote
  • 400x86x55 multi bar heavy-duty rubber track
    New Holland C180 400x86x55 Multi-Bar
    • Heavy Duty | 400x86x55
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning
    $1,352.00$1,299.00

    In stock

    Add to quote
  • 400x86x55 block heavy-duty rubber track
    New Holland C180 400x86x55 Staggered-Block
    • Heavy Duty | 400x86x55
    • Smooth Ride
    • Easy Turning
    • Cut Resistant
    $1,176.50$1,132.00

    In stock

    Add to quote
  • 400x86x55 z max heavy-duty rubber track
    New Holland C180 400x86x55 Z-Max
    • Heavy Duty | 400x86x55
    • Extreme Grip
    • Side-Hill Stability
    • Tear Resistant
    $1,267.50$1,219.00

    In stock

    Add to quote

Which tread fits New Holland C180?

Pick a tread for your jobsite — then buy above.
+ Recommended surface- Not the primary use— Application dependent
PatternBest UseKey TraitsRoadClayGravelMulchMudTurfAction
C-Block C-BlockHeavy-duty durability Built for maximum durability on abrasive jobsites, hard-pack surfaces, demolition debris, and mixed gravel.
  • Maximum Durability
  • Anti-Vibration
  • Cut & Tear Resistant
+++---View
Multi-Bar Multi-BarPushing power and mud grip Designed for pushing power, deep mud grip, and clean-out performance when traction matters more than smooth finish.
  • Max Pushing Power
  • Deep Mud Grip
  • Self-Cleaning
-+-+++View
Staggered Block Staggered BlockSmooth turning A smoother-riding tread option with easier turning and dependable cut resistance on mixed surfaces.
  • Smooth Ride
  • Easy Turning
  • Cut Resistant
+-+--+View
Z-Max Z-MaxExtreme grip Aggressive tread geometry for extreme grip, side-hill stability, and tear resistance in rough conditions.
  • Extreme Grip
  • Side-Hill Stability
  • Tear Resistant
-++-+-View

  • 100% Virgin Rubber

    Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.

  • Continuous Steel Cords

    Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.

  • Drop-Forged Links

    Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.

  • Corrosion Resistant

    The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.

  • Reinforced Sidewalls

    Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.

  • Low-Vibration Tread

    Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.

New Holland C180 Rubber Tracks & Parts fitment data

Fitment & Part Numbers

Track Size400x86x55
Idler8

Verified-fit rubber tracks and undercarriage parts for the New Holland C180. Confirm size and tread before ordering.

Frequently Asked Questions

What size rubber tracks fit a New Holland C180?
The verified rubber track size for the New Holland C180 is 400x86bx55.
