If you are replacing rubber tracks on a Takeuchi TL8R2, inspect the steel and rotating undercarriage components at the same time. New rubber cannot correct a hooked sprocket, loose idler, seized roller or alignment problem.
Shop Takeuchi TL8R2 tracks & undercarriage

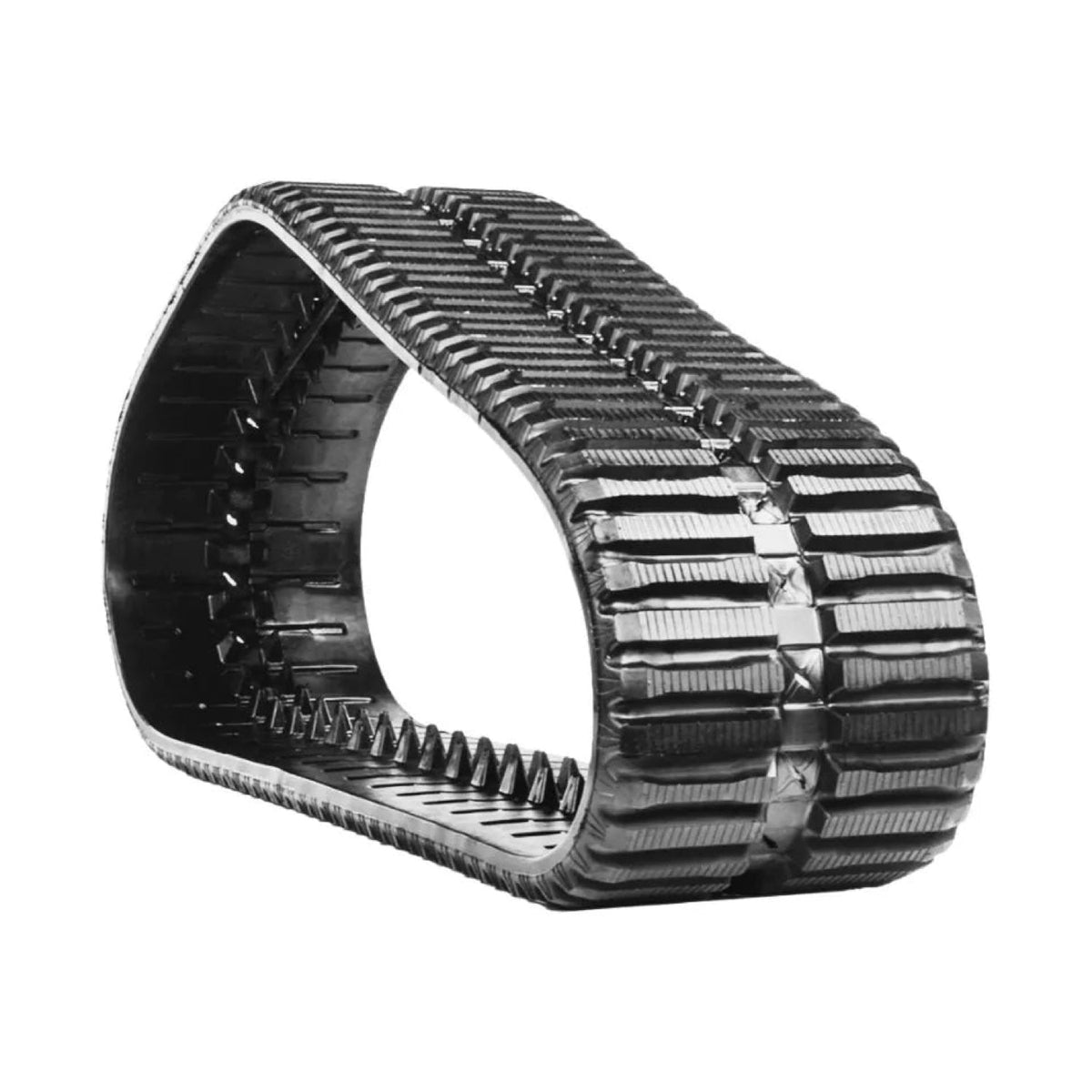

Cataloged track sizes: 320x86x52, 380x86x52, 400x86x52
Takeuchi TL8R2 undercarriage part numbers
| Component | Current TrackTECH reference | Fitment check |
|---|---|---|
| Drive sprocket | 06816-00009 | Verify the installed component or machine configuration before ordering. |
| Front idler | 06814-00019 | Verify the installed component or machine configuration before ordering. |
| Rear idler | 06813-00024 | Verify the installed component or machine configuration before ordering. |
| Bottom roller | 06813-00027 | Verify the installed component or machine configuration before ordering. |
Configuration note: The TL8R2 is represented with multiple track widths in the live catalog. Match the installed belt before changing width.
What to inspect before installing new tracks
- Idlers: side play, leakage, flange damage and alignment.
- Rollers: bearing play, leakage, flat spots, binding and damaged flanges.
- Sprockets: hooked, pointed or one-sided tooth wear where a sprocket is part of the current machine catalog.
- Tension system: usable adjustment travel and the ability to hold the manufacturer's specified tension.
- Frame and guards: bent steel, packed debris or contact marks that could force the belt off line.
Symptoms that can point to undercarriage wear
| Symptom | Inspect first |
|---|---|
| Track repeatedly comes off | Tension, idler play, roller alignment, guide damage and frame contact |
| Track skips or ratchets | Tension, sprocket engagement, drive lugs and track pitch |
| One side of the track wears faster | Roller/idler alignment and seized components |
| New track shows drive-lug damage | Sprocket wear, wrong guide family, pitch or tension |
Do you replace all undercarriage parts with new tracks?
No. Replacement should be condition-based. Reuse components that remain within the machine manufacturer's service limits, and replace the parts that are worn, seized, leaking, misaligned or actively damaging the belt.
For a complete pre-install process, see How to Inspect a CTL Undercarriage Before Installing New Tracks.
