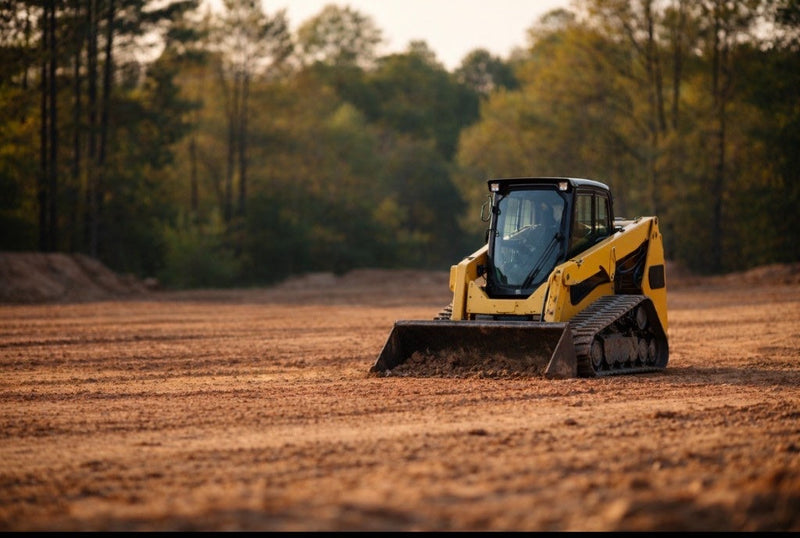

Cat 259 Rubber Tracks & Parts

The CAT 259 is cataloged in more than one track width — 320 / 400 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.

Which width fits your CAT 259

  • 400x86x53 — 400 mm (16") wide, 86 mm pitch, 53 links
  • 320x86x53 — 320 mm (13") wide, 86 mm pitch, 53 links

These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.

Tread choice for the CAT 259

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
  • C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces

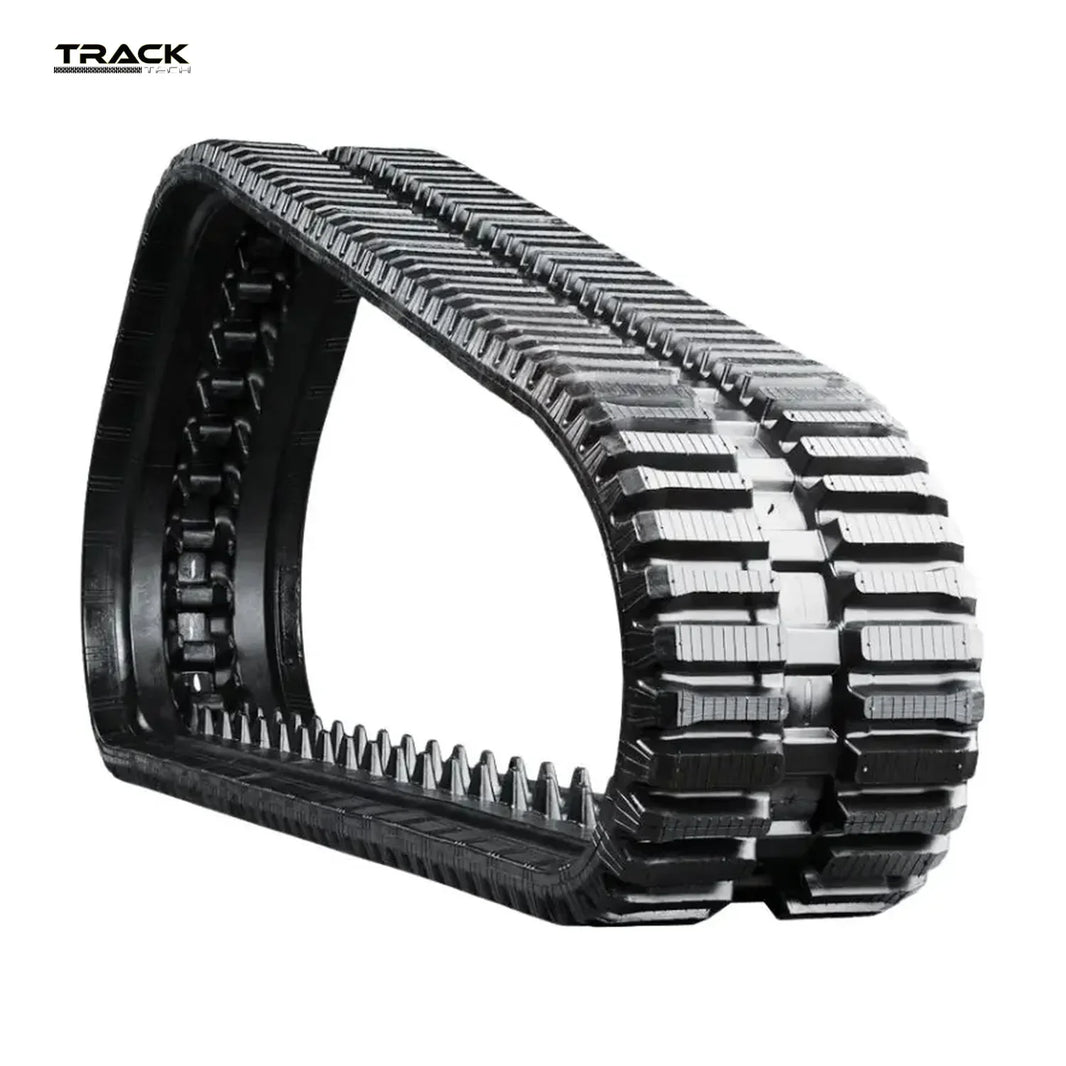

  • Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
  • Zig-Zag — general mixed ground. Balanced traction with a smoother ride than a bar tread
  • All-Terrain — everything in between. A compromise tread when the machine moves between surfaces
  • X-Terrain — the worst ground you have. Aggressive lugs for mud, slope and loose fill

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Undercarriage parts for the CAT 259

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the CAT 259, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More CAT undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

Track sizes

Heavy-Duty Rubber Tracks for 259

|
  • 400x86x53 Heavy Duty Rubber Track | All-Terrain
    CAT 259 400x86x53 All-Terrain
    • Heavy Duty | 400x86x53
    • All-Terrain Grip
    • Smooth Ride
    • Cut Resistant

    Request quote

    Add to quote
  • 400x86x53 Heavy Duty Rubber Track | Block
    CAT 259 400x86x53 Staggered-Block
    • Heavy Duty | 400x86x53
    • Smooth Ride
    • Easy Turning
    • Cut Resistant
    $1,170.00$1,125.00

    In stock

    Add to quote
  • 400x86x53 Heavy Duty Rubber Track | C-Block

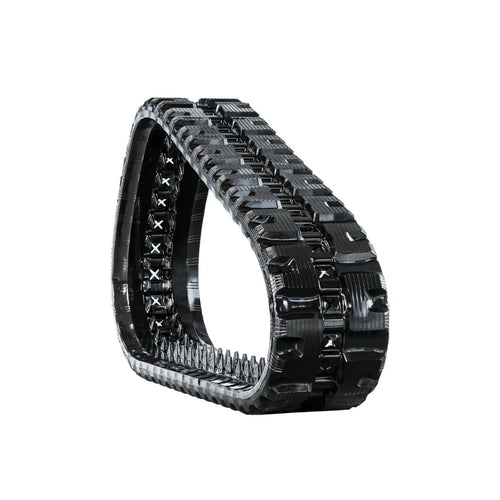

    CAT 259 400x86x53 C-Block
    • Heavy Duty | 400x86x53
    • Maximum Durability
    • Anti-Vibration
    • Cut & Tear Resistant
    $1,170.00$1,125.00

    In stock

    Add to quote
  • CAT 259D3 Rubber Track | 400x86x53

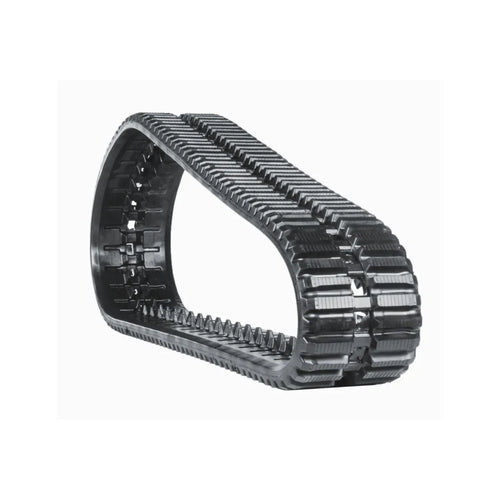

    CAT 259 400x86x53 Multi-Bar
    • Heavy Duty | 400x86x53
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning
    $1,306.50$1,256.25

    In stock

    Add to quote
  • 400x86x53 Heavy Duty Rubber Track | Z-Max
    CAT 259 400x86x53 Z-Max
    • Heavy Duty | 400x86x53
    • Extreme Grip
    • Side-Hill Stability
    • Tear Resistant
    $1,228.50$1,216.22

    In stock

    Add to quote

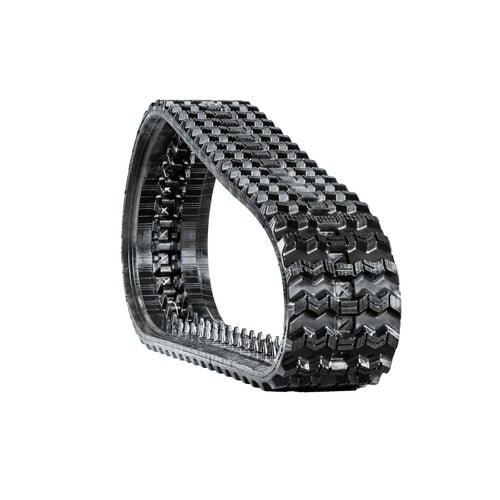

  • 400x86x53 Heavy Duty Rubber Track | Zig-Zag

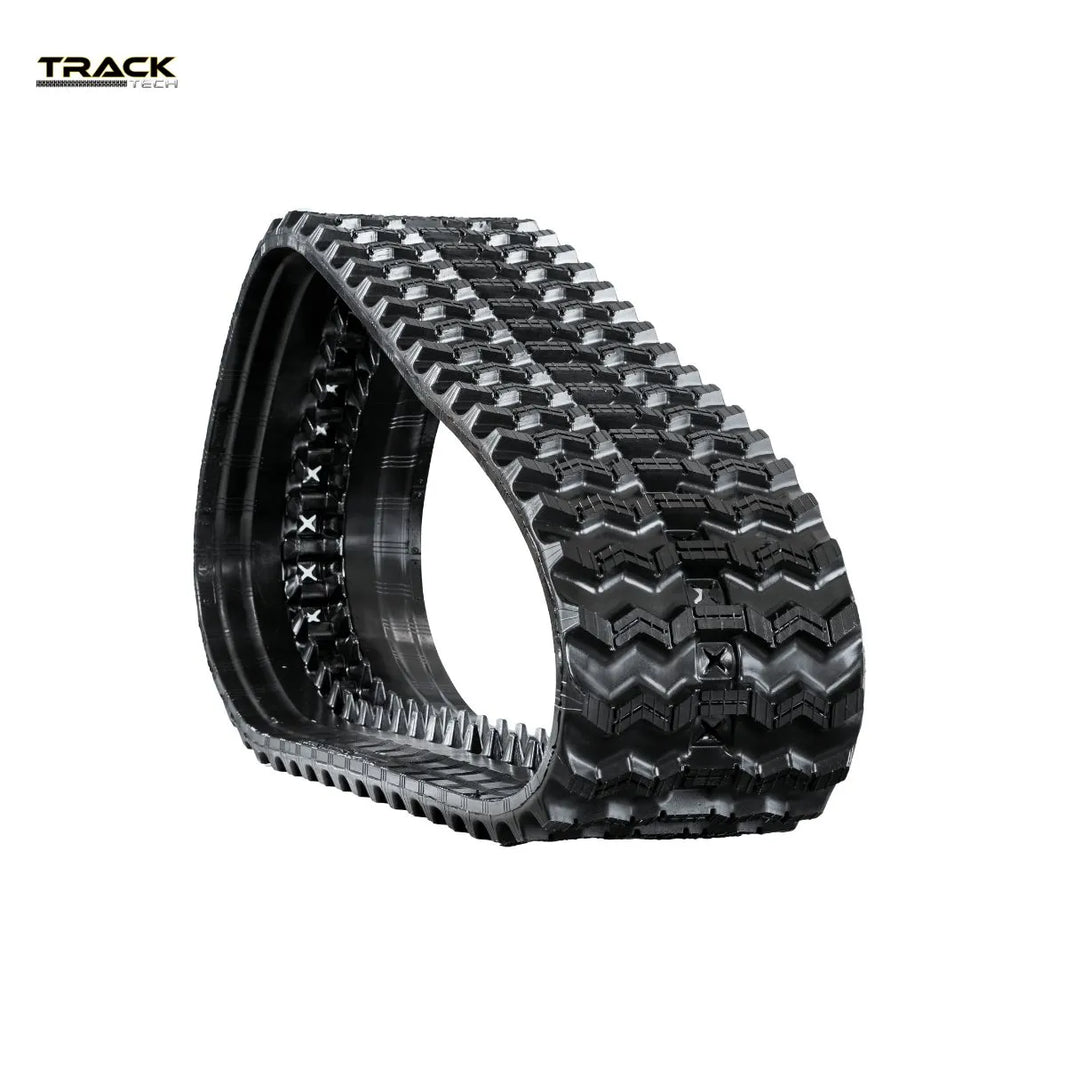

    CAT 259 400x86x53 Zig-Zag
    • Heavy Duty | 400x86x53
    • High Traction
    • Self-Cleaning
    • Versatile Performance
    $1,131.00$1,087.50

    In stock

    Add to quote
  • 320x86x53 c block heavy-duty rubber track

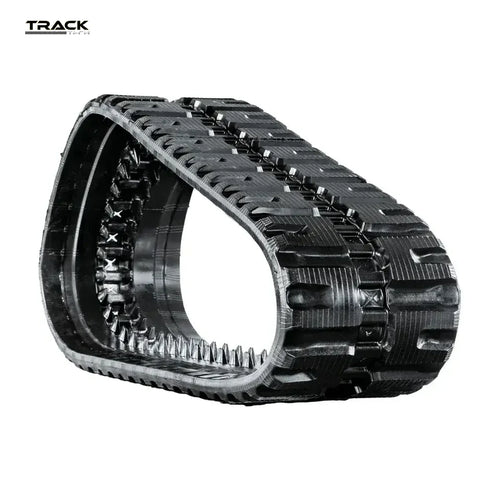

    CAT 259 320x86x53 C-Block
    • Heavy Duty | 320x86x53
    • Maximum Durability
    • Anti-Vibration
    • Cut & Tear Resistant
    $1,479.00

    In stock

    Add to quote
  • 320x86x53 Heavy Duty Rubber Track | Multi-Bar

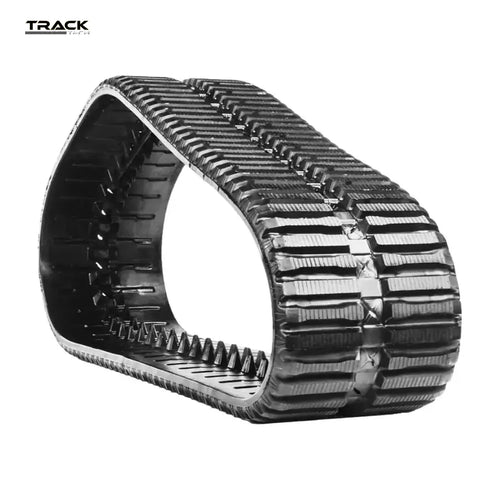

    CAT 259 320x86x53 Multi-Bar
    • Heavy Duty | 320x86x53
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning
    $1,040.00$1,000.00

    In stock

    Add to quote
  • 320x86x53 Heavy Duty Rubber Track | X-Terrain
    CAT 259 320x86x53 X-Terrain
    • Heavy Duty | 320x86x53
    • Forestry Bite
    • Core Defense
    • Max Traction
    $1,066.00$1,025.00

    In stock

    Add to quote
  • 320x86x53 Zig Zag Rubber Track

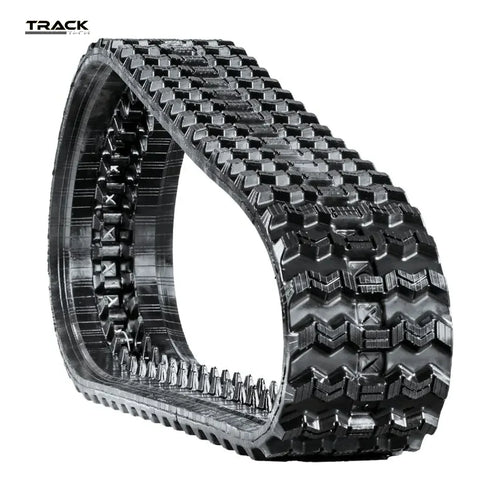

    CAT 259 320x86x53 Zig-Zag
    • Heavy Duty | 320x86x53
    • High Traction
    • Self-Cleaning
    • Versatile Performance
    $1,027.00$987.50

    In stock

    Add to quote
  • 400x86x53 Bridgestone Rubber Track | Block
    CAT 259 400x86x53 Staggered-Block
    • Bridgestone | 400x86x53
    • Smooth Ride
    • Easy Turning
    • Cut Resistant
    $1,899.00$1,649.00

    In stock

    Add to quote
  • 400x86x53 Bridgestone Rubber Track | Multi-Bar
    CAT 259 400x86x53 Multi-Bar
    • Bridgestone | 400x86x53
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning
    $1,899.00$1,649.00

    In stock

    Add to quote
  • 320x86x53 Bridgestone Rubber Track | Multi-Bar
    CAT 259 320x86x53 Multi-Bar
    • Bridgestone | 320x86x53
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning

    Request quote

    Add to quote
  • 320x86x53 Bridgestone Rubber Track | Block
    CAT 259 320x86x53 Staggered-Block
    • Bridgestone | 320x86x53
    • Smooth Ride
    • Easy Turning
    • Cut Resistant
    $1,629.00$1,409.00

    In stock

    Add to quote
  • 320x86x53 Bridgestone Rubber Track | C-Block
    CAT 259 320x86x53 C-Block
    • Bridgestone | 320x86x53
    • Maximum Durability
    • Anti-Vibration
    • Cut & Tear Resistant

    Request quote

    Add to quote

Which tread fits CAT 259?

Pick a tread for your jobsite — then buy above.
+ Recommended surface- Not the primary use— Application dependent
PatternBest UseKey TraitsRoadClayGravelMulchMudTurfAction
All-Terrain All-TerrainHard-surface control Precision machine control, easy turning, and extended life on hard surfaces. Preferred by asphalt and concrete contractors working on road and gravel.
  • Precision Machine Control
  • Easy Turning
  • Extended Life
+-+---View
Staggered Block Staggered BlockSmooth turning A smoother-riding tread option with easier turning and dependable cut resistance on mixed surfaces.
  • Smooth Ride
  • Easy Turning
  • Cut Resistant
+-+--+View
C-Block C-BlockHeavy-duty durability Built for maximum durability on abrasive jobsites, hard-pack surfaces, demolition debris, and mixed gravel.
  • Maximum Durability
  • Anti-Vibration
  • Cut & Tear Resistant
+++---View

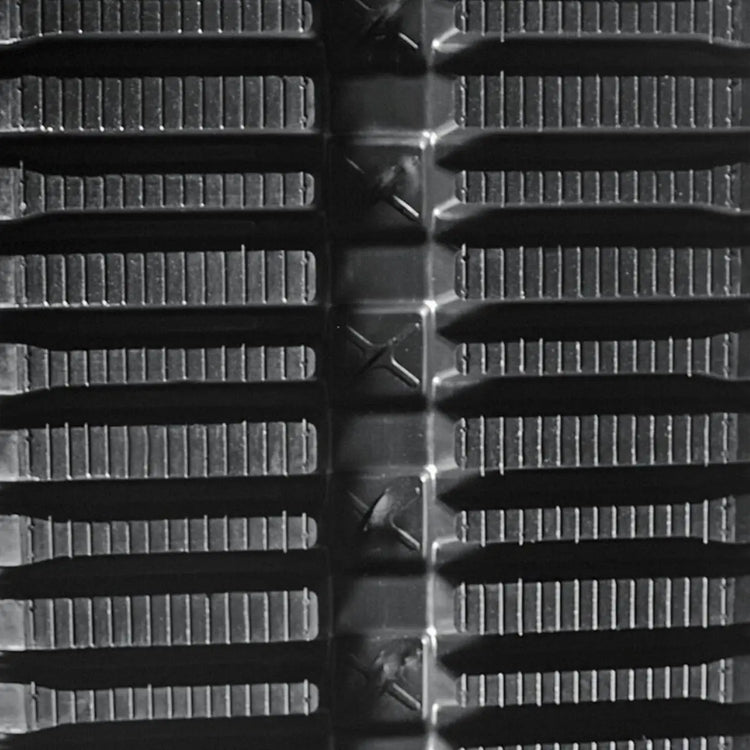

Multi-Bar Multi-BarPushing power and mud grip Designed for pushing power, deep mud grip, and clean-out performance when traction matters more than smooth finish.
  • Max Pushing Power
  • Deep Mud Grip
  • Self-Cleaning
-+-+++View
Z-Max Z-MaxExtreme grip Aggressive tread geometry for extreme grip, side-hill stability, and tear resistance in rough conditions.
  • Extreme Grip
  • Side-Hill Stability
  • Tear Resistant
-++-+-View
Zig-Zag Zig-ZagAll-season traction A versatile all-season pattern with high traction, self-cleaning channels, and balanced ride quality.
  • High Traction
  • Self-Cleaning
  • Versatile Performance
++++++View
X-Terrain X-TerrainMulching / Land Clearing Forestry, mulching, and extreme land clearing — fortified core defense and maximum bite for severe off-road environments.
  • Forestry Bite
  • Core Defense
  • Max Traction
-++++-View

  • 100% Virgin Rubber

    Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.

  • Continuous Steel Cords

    Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.

  • Drop-Forged Links

    Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.

  • Corrosion Resistant

    The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.

  • Reinforced Sidewalls

    Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.

  • Low-Vibration Tread

    Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.

Cat 259 Rubber Tracks & Parts fitment data

Verified-fit rubber tracks and undercarriage parts for the Cat 259. Confirm size and tread before ordering.

Frequently Asked Questions

What size rubber tracks fit a Cat 259?
The Cat 259 can use 320 x 86 x 53 or 400 x 86 x 53 rubber tracks. Match the full size on the track you are replacing before you order. If your machine has more than one track setup, choose the width and guide style that matches the track currently on the machine.
