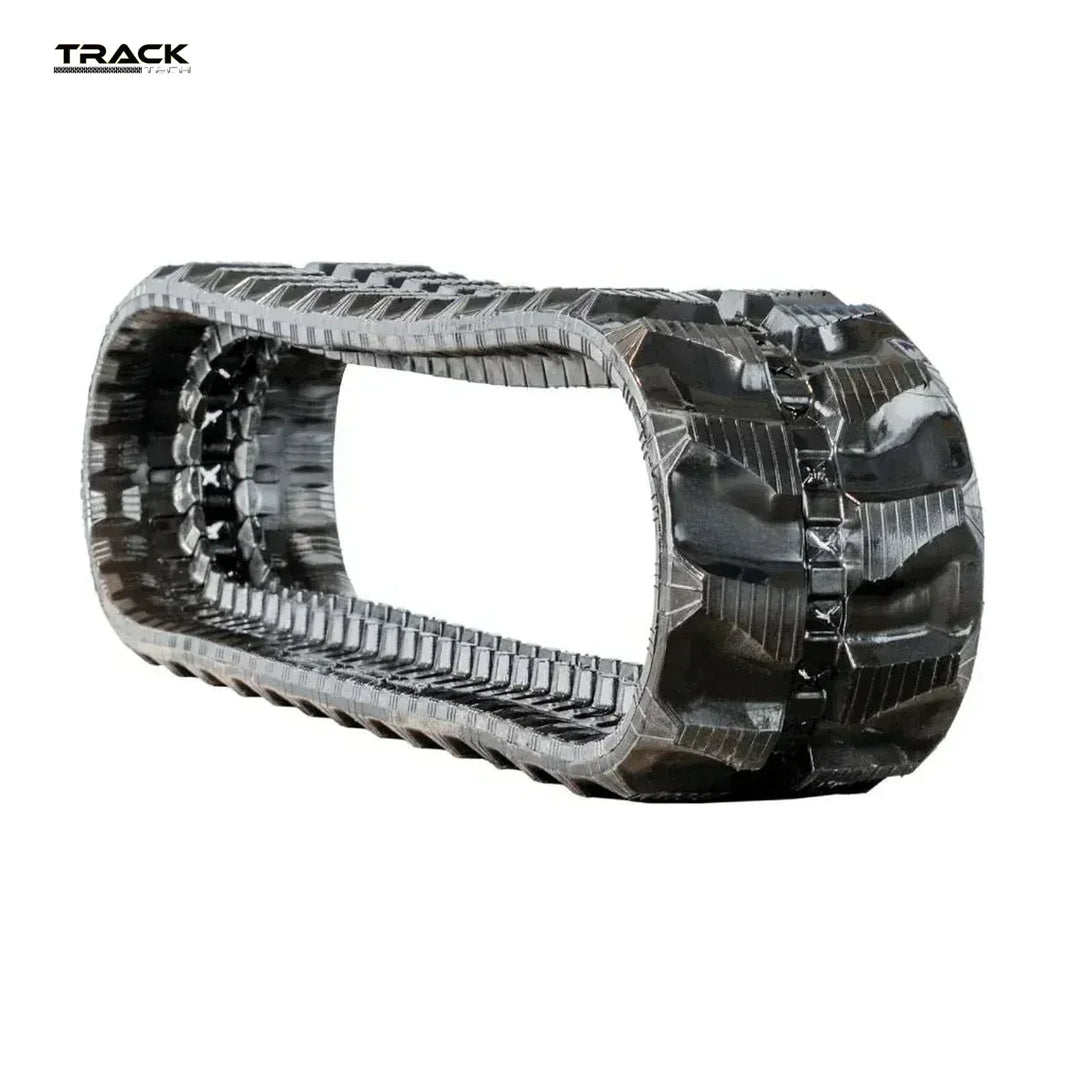

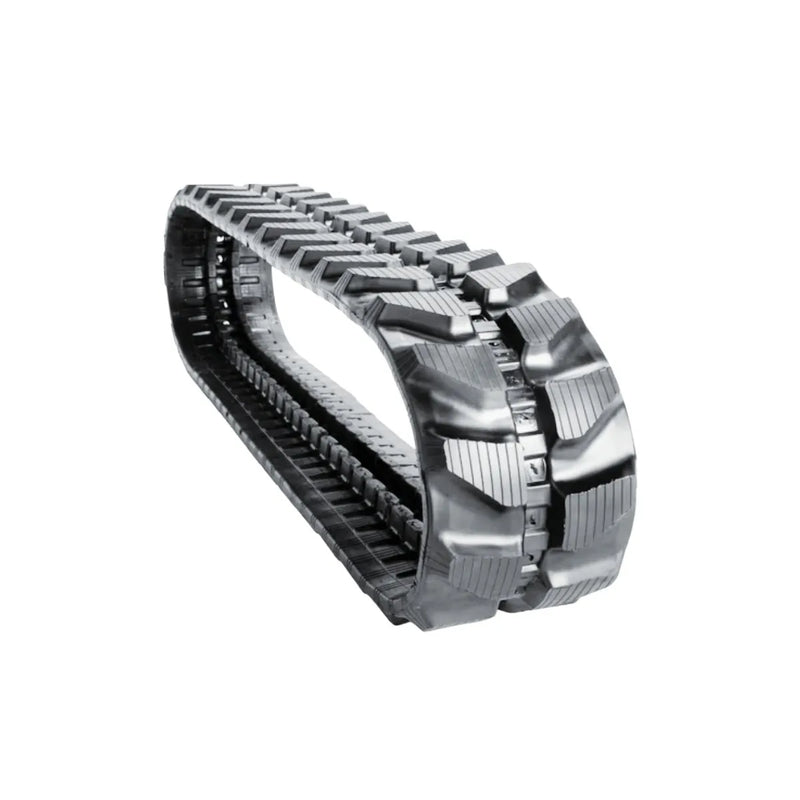

Replacement rubber tracks for the Kubota KX016-4 mini excavator in 230x48x64 — 230 mm wide, 48 mm pitch, 64 links. Built for digging, trenching, backfill and tight-quarters work, with free freight to the lower 48.
What the numbers mean on a Kubota KX016-4
- 230x48x64 — 230 mm tread width (about 9"), 48 mm pitch, 64 links
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the Kubota KX016-4
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- MX — mixed and hard surfaces. A durable general-duty excavator tread
Parts we carry for the Kubota KX016-4
Tracks. Call for anything not shown online — we can usually source it.
How these wear
Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 230x48x64 shows up on machines from several makers. If you run any of these alongside the Kubota KX016-4, it is the same belt:
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
