Manitou 2150RT Rubber Tracks & Parts

The Manitou 2150RT is cataloged in more than one track width — 400 / 450 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.

Which width fits your Manitou 2150RT

  • 450x86x56 — 450 mm (18") wide, 86 mm pitch, 56 links
  • 400x86x56 — 400 mm (16") wide, 86 mm pitch, 56 links

These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.

Tread choice for the Manitou 2150RT

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • All-Terrain — everything in between. A compromise tread when the machine moves between surfaces
  • Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
  • C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces
  • Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
  • X-Terrain — the worst ground you have. Aggressive lugs for mud, slope and loose fill
  • Z-Max — soft and slippery ground. An aggressive zig-zag with more bite

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Manitou 2150RT at a glance

  • Operating weight — 9,901 lb
  • Engine — 72 hp

Undercarriage parts for the Manitou 2150RT

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Manitou 2150RT, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More Manitou undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

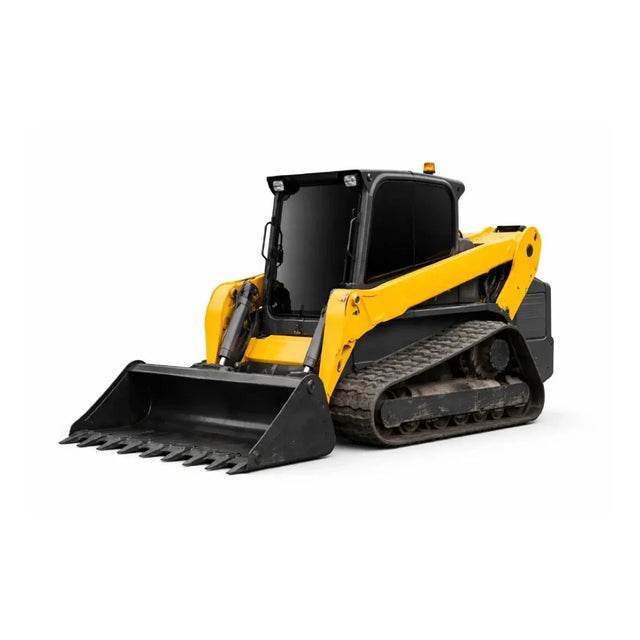

Manitou 2150RT compact track loader

Track sizes

Heavy-Duty Rubber Tracks for 2150RT

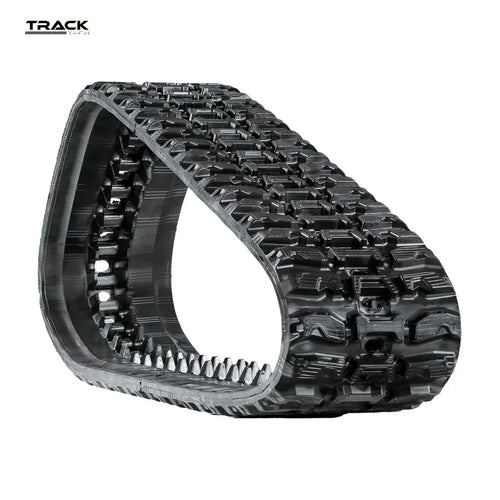

  • 450x86x56 Heavy Duty Rubber Track | All-Terrain
    Manitou 2150RT 450x86x56 All-Terrain
    • Heavy Duty | 450x86x56
    • All-Terrain Grip
    • Smooth Ride
    • Cut Resistant

    Request quote

    Add to quote
  • 450x86x56 Heavy Duty Rubber Track | Block
    Manitou 2150RT 450x86x56 Staggered-Block
    • Heavy Duty | 450x86x56
    • Smooth Ride
    • Easy Turning
    • Cut Resistant
    $1,482.00$1,425.00

    In stock

    Add to quote
  • 450x86x56 Heavy Duty Rubber Track | C-Block
    Manitou 2150RT 450x86x56 C-Block
    • Heavy Duty | 450x86x56
    • Maximum Durability
    • Anti-Vibration
    • Cut & Tear Resistant
    $1,529.00$1,329.00

    In stock

    Add to quote
  • 450x86x56 Heavy Duty Rubber Track | Multi-Bar
    Manitou 2150RT 450x86x56 Multi-Bar
    • Heavy Duty | 450x86x56
    • Max Pushing Power
    • Deep Mud Grip
    • Self-Cleaning
    $1,499.00$1,299.00

    In stock

    Add to quote
  • 450x86x56 Heavy Duty Rubber Track | X-Terrain
    Manitou 2150RT 450x86x56 X-Terrain
    • Heavy Duty | 450x86x56
    • Forestry Bite
    • Core Defense
    • Max Traction
    $1,514.50$1,456.25

    In stock

    Add to quote
  • 450x86x56 Heavy Duty Rubber Track | Z-Max
    Manitou 2150RT 450x86x56 Z-Max
    • Heavy Duty | 450x86x56
    • Extreme Grip
    • Side-Hill Stability
    • Tear Resistant
    $1,527.50$1,468.75

    In stock

    Add to quote
  • 450x86x56 Heavy Duty Rubber Track | Zig-Zag
    Manitou 2150RT 450x86x56 Zig-Zag
    • Heavy Duty | 450x86x56
    • High Traction
    • Self-Cleaning
    • Versatile Performance
    $1,469.00$1,412.50

    In stock

    Add to quote
  • 400x86x56 Heavy Duty Rubber Track | Block
    Manitou 2150RT 400x86x56 Staggered-Block
    • Heavy Duty | 400x86x56
    • Smooth Ride
    • Easy Turning
    • Cut Resistant
    $1,196.00$1,184.04

    In stock

    Add to quote

Which tread fits Manitou 2150RT?

Pick a tread for your jobsite — then buy above.
+ Recommended surface- Not the primary use— Application dependent
PatternBest UseKey TraitsRoadClayGravelMulchMudTurfAction
All-Terrain All-TerrainHard-surface control Precision machine control, easy turning, and extended life on hard surfaces. Preferred by asphalt and concrete contractors working on road and gravel.
  • Precision Machine Control
  • Easy Turning
  • Extended Life
+-+---View
Staggered Block Staggered BlockSmooth turning A smoother-riding tread option with easier turning and dependable cut resistance on mixed surfaces.
  • Smooth Ride
  • Easy Turning
  • Cut Resistant
+-+--+View
C-Block C-BlockHeavy-duty durability Built for maximum durability on abrasive jobsites, hard-pack surfaces, demolition debris, and mixed gravel.
  • Maximum Durability
  • Anti-Vibration
  • Cut & Tear Resistant
+++---View
Multi-Bar Multi-BarPushing power and mud grip Designed for pushing power, deep mud grip, and clean-out performance when traction matters more than smooth finish.
  • Max Pushing Power
  • Deep Mud Grip
  • Self-Cleaning
-+-+++View
X-Terrain X-TerrainMulching / Land Clearing Forestry, mulching, and extreme land clearing — fortified core defense and maximum bite for severe off-road environments.
  • Forestry Bite
  • Core Defense
  • Max Traction
-++++-View
Z-Max Z-MaxExtreme grip Aggressive tread geometry for extreme grip, side-hill stability, and tear resistance in rough conditions.
  • Extreme Grip
  • Side-Hill Stability
  • Tear Resistant
-++-+-View
Zig-Zag Zig-ZagAll-season traction A versatile all-season pattern with high traction, self-cleaning channels, and balanced ride quality.
  • High Traction
  • Self-Cleaning
  • Versatile Performance
++++++View

  • 100% Virgin Rubber

    Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.

  • Continuous Steel Cords

    Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.

  • Drop-Forged Links

    Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.

  • Corrosion Resistant

    The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.

  • Reinforced Sidewalls

    Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.

  • Low-Vibration Tread

    Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.

Manitou 2150RT Rubber Tracks & Parts fitment data

Machine Performance

Operating Weight9901 lb
Horsepower72 HP
ROC / Bucket Force2150 lb

Hydraulics & Lift

Standard Flow21 GPM
High Flow GPM35 GPM

Verified-fit rubber tracks and undercarriage parts for the Manitou 2150RT. Confirm size and tread before ordering.

Frequently Asked Questions

What size rubber tracks fit a Manitou 2150RT?
The Manitou 2150RT can use 400 x 86 x 56 or 450 x 86 x 56 rubber tracks. Match the full size on the track you are replacing before you order. If your machine has more than one track setup, choose the width and guide style that matches the track currently on the machine.
