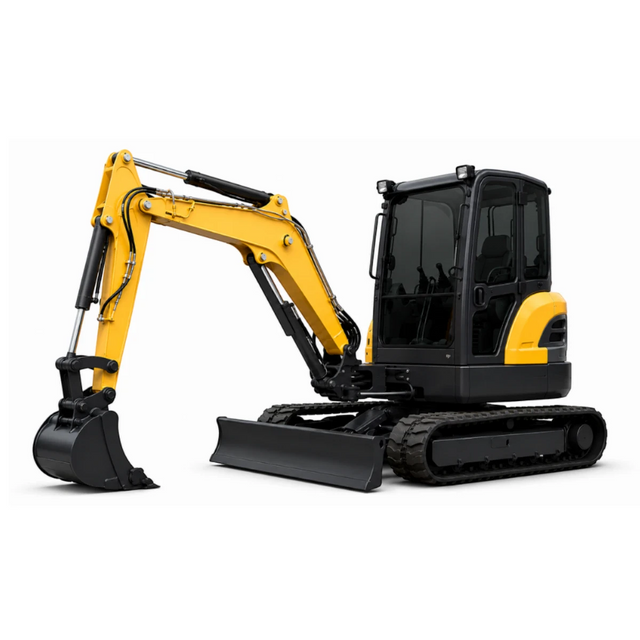

The New Holland E30SR runs a 300x52.5Wx82 track: 300 mm across the tread, 52.5 mm between links, 82 links around. Cut for digging, trenching, backfill and tight-quarters work and shipped free to the lower 48.
What the numbers mean on a New Holland E30SR
- 300x52.5Wx82 — 300 mm tread width (about 12"), 52.5 mm pitch, 82 links, wide guide lugs
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the New Holland E30SR
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
Undercarriage parts for the New Holland E30SR
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
- Front idler — PX52D00028F1

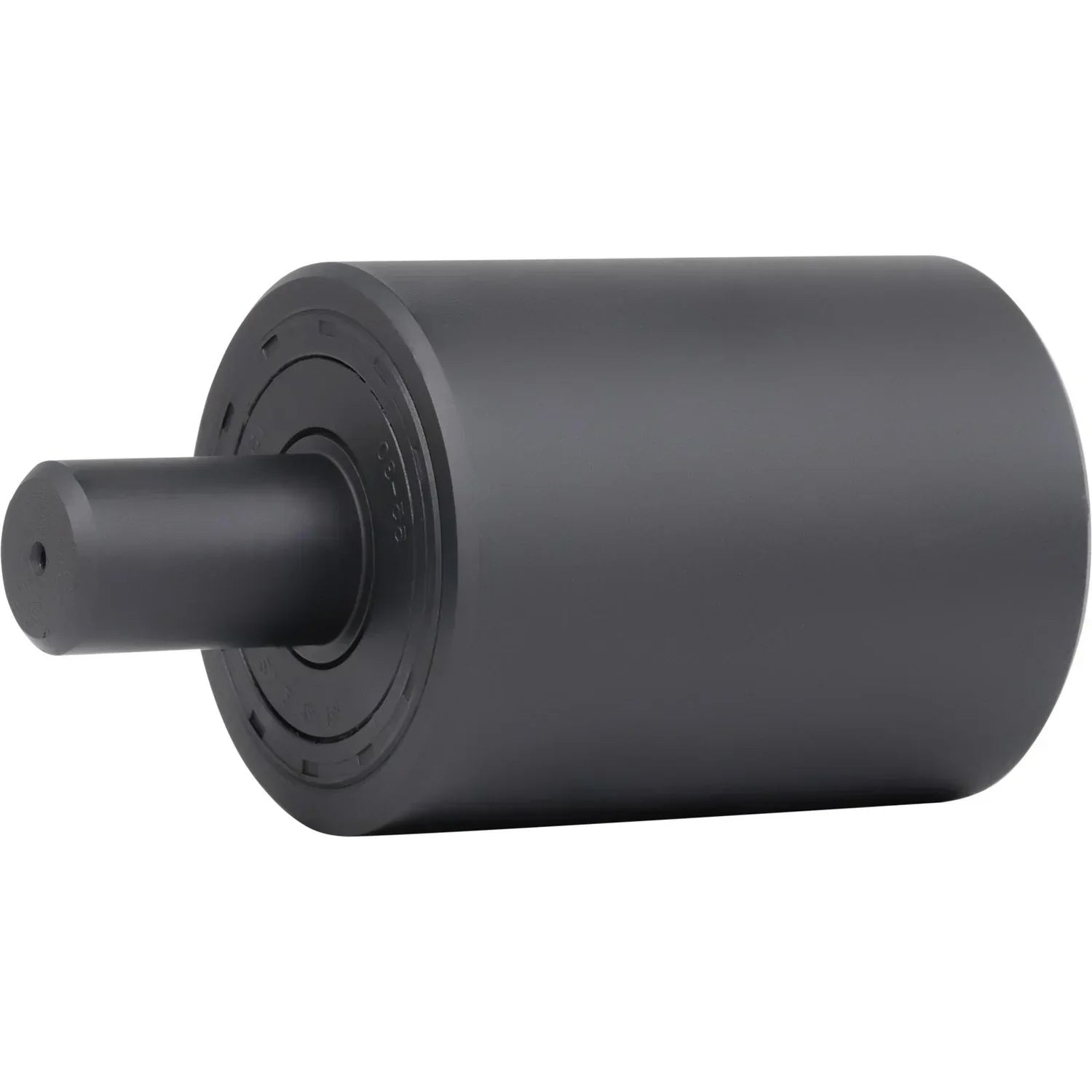

- Carrier roller — PV64D00001F1
How these wear
Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 300x52.5Wx82 shows up on machines from several makers. If you run any of these alongside the New Holland E30SR, it is the same belt:
- Airman HM30SGZ
- CAT 302.7DCR
- Case 31
- Case CK31
- Case CX31
- Case CX31B
- Kobelco SK024
- Kobelco SK027
- Kobelco SK027-1
- Kobelco SK030
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
