Takeuchi TL220 tracks and undercarriage, sized 320x86Tx46 (320 mm wide × 86 mm pitch × 46 links). Made for grading, loading, pallet work and land clearing. Free freight, 24-month warranty.
What the numbers mean on a Takeuchi TL220
- 320x86Tx46 — 320 mm tread width (about 13"), 86 mm pitch, 46 links, triangle guide lugs
Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.
Tread choice for the Takeuchi TL220
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block

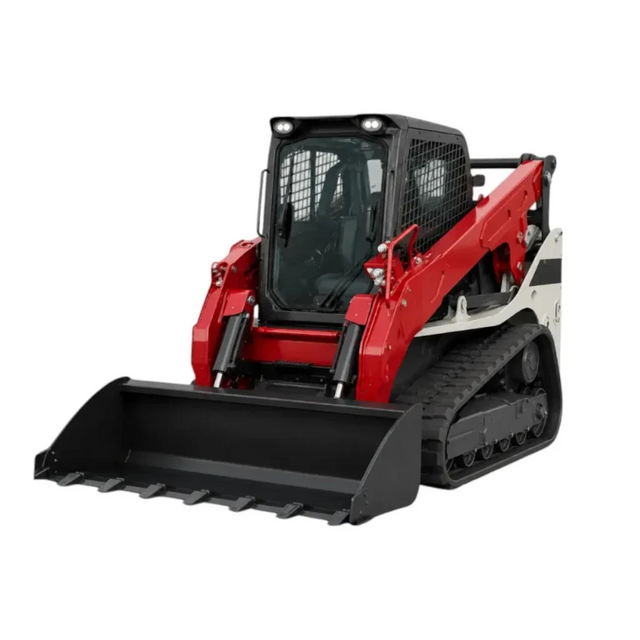

Takeuchi TL220 at a glance
- Operating weight — 6,315 lb
- Engine — 53 hp
Undercarriage parts for the Takeuchi TL220
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
How these wear
CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so 320x86Tx46 shows up on machines from several makers. If you run any of these alongside the Takeuchi TL220, it is the same belt:
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
