The Bobcat 321 takes a 230 mm track, but it was built with more than one pitch — 48 and 96 mm. Same width, different drive-lug spacing, and they do not swap. Check the old track or the sprocket before ordering. Free freight to the lower 48, 24-month warranty.
Bobcat 321 track options
- 230x96x33 — 230 mm (9") wide, 96 mm pitch, 33 links
- 230x48x66 — 230 mm (9") wide, 48 mm pitch, 66 links
Same tread width on all of them — what changes is pitch and link count, which is set by the sprocket and roller frame. Read the numbers off the inside of the old track rather than going by model year; these were built across more than one undercarriage spec.
Tread choice for the Bobcat 321
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
- MX — mixed and hard surfaces. A durable general-duty excavator tread
Undercarriage parts for the Bobcat 321
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
- Drive sprocket — 6816203

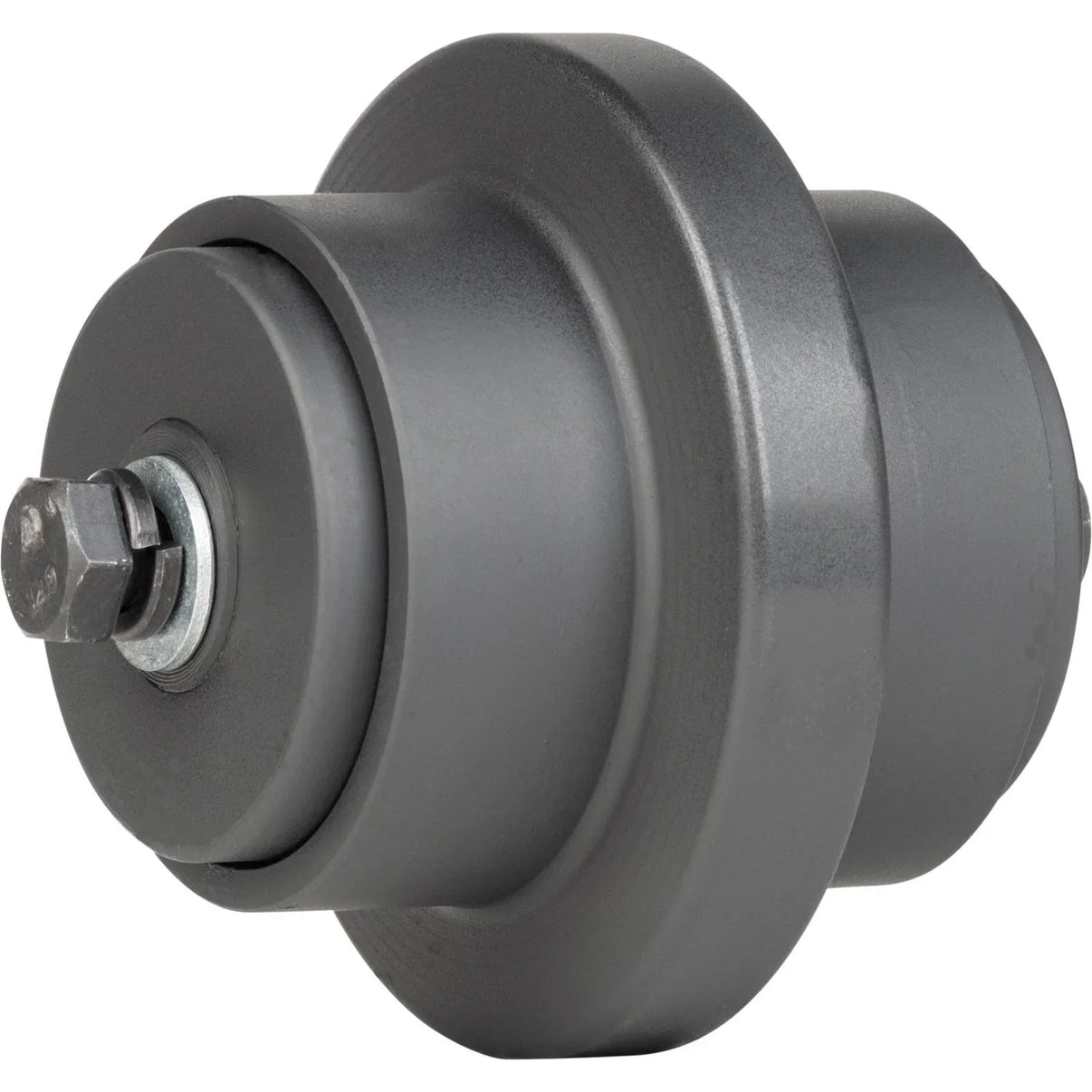

- Bottom roller — 7136983
How these wear
Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Bobcat 321, it is the same belt:
- Bobcat 320
- Bobcat 320L
- Bobcat 322D
- Bobcat 322G
- Bobcat 323
- Bobcat 324
- Bobcat E16
- Bobcat E17
- Bobcat E19
- Bobcat X320
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
