Bobcat T450 Rubber Tracks & Parts

The Bobcat T450 is cataloged in more than one track width — 300 / 320 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.

Which width fits your Bobcat T450

• 320x84x46 — 320 mm (13") wide, 84 mm pitch, 46 links
• 300x84x46 — 300 mm (12") wide, 84 mm pitch, 46 links

These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.

Tread choice for the Bobcat T450

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

• Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
• C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces

If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.

Bobcat T450 at a glance

• Operating weight — 6,424 lb
• Engine — 55 hp

Undercarriage parts for the Bobcat T450

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

• Drive sprocket — 7204050

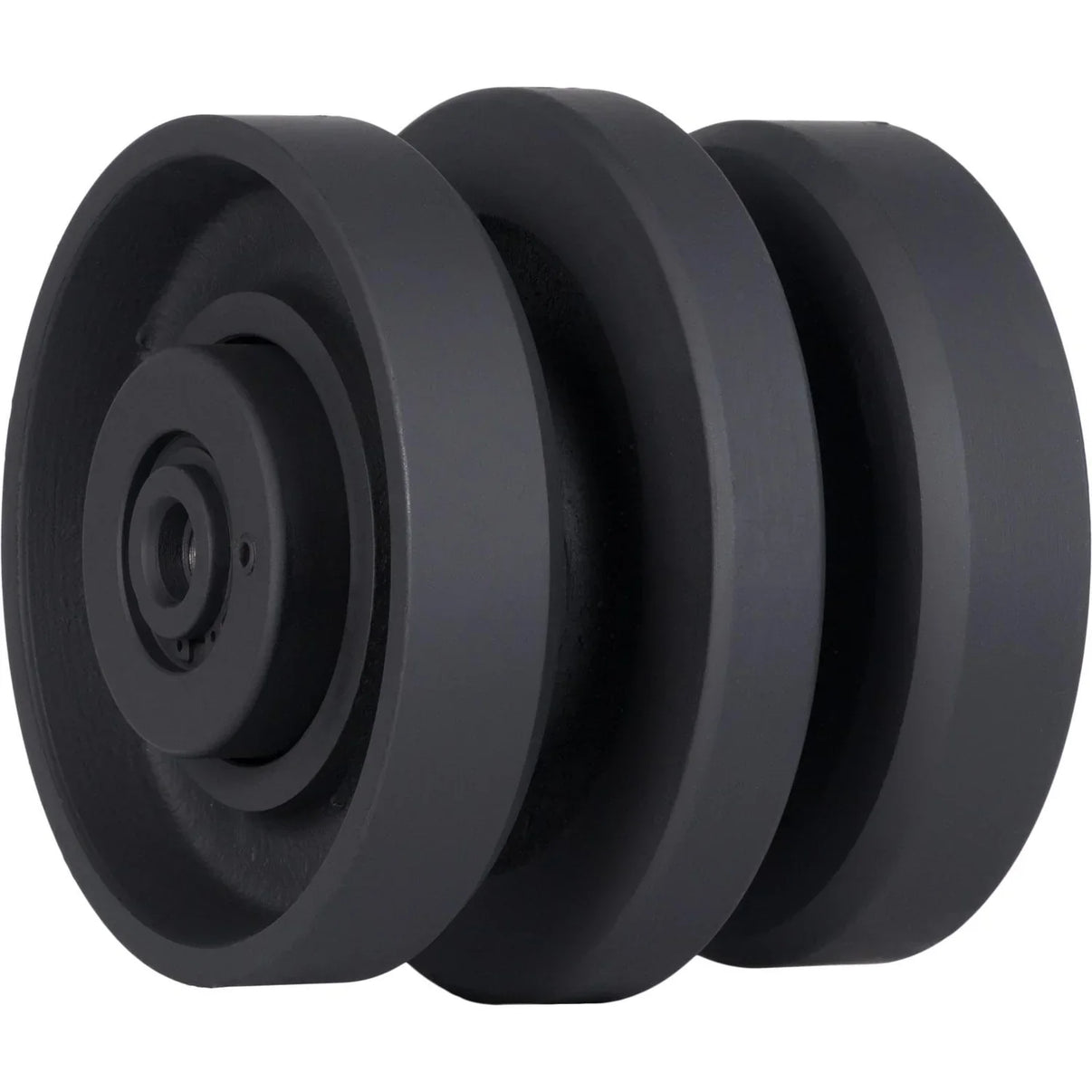

• Bottom roller — 7201400
• Undercarriage kit

How these wear

CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Bobcat T450, it is the same belt:

• Bobcat T140
• Gehl RT135

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
