The Kubota SVL65-2 is cataloged in more than one track width — 320 / 380 / 400 mm. Pick the width your undercarriage is actually set up for, then choose tread for the ground you work. Free freight to the lower 48 on every track, 24-month warranty.
Which width fits your Kubota SVL65-2
400x86x52 — 400 mm (16") wide, 86 mm pitch, 52 links
380x86x52 — 380 mm (15") wide, 86 mm pitch, 52 links
320x86x52 — 320 mm (13") wide, 86 mm pitch, 52 links
These are not interchangeable by preference — the width your machine takes is set by the roller frame and sprocket it left the factory with. Wider tread floats better on soft ground and spreads ground pressure; narrower runs cheaper, turns easier and clears tight spots. Measure the existing track across the tread face before you order.
Tread choice for the Kubota SVL65-2
Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:
C-Block — concrete, asphalt and hard-packed ground. Longest wear life and the least vibration on hard surfaces
Multi-Bar — mud, snow and soft ground. Deep bar lugs bite and shed material instead of packing up
Zig-Zag — general mixed ground. Balanced traction with a smoother ride than a bar tread
Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block
If the machine splits its time between surfaces, buy for the ground you are on most — a hard-surface tread on constant mud will spin, and a bar tread on concrete will wear out in half the hours.
Kubota SVL65-2 at a glance
Operating weight — 7,650 lb
Engine — 68 hp
Undercarriage parts for the Kubota SVL65-2
Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:
CTLs run high ground speed and counter-rotate all day, which is what eats edge lugs and drive lugs first. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.
Same track, other machines
Track size follows undercarriage geometry, not brand, so one of these sizes shows up on machines from several makers. If you run any of these alongside the Kubota SVL65-2, it is the same belt:
Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.
{"handle":"kubota-svl65-2","image":"\/\/newrubbertrack.com\/cdn\/shop\/collections\/kubota-svl65-2-hero.webp?v=1789732131\u0026width=112","chooser":false,"parts":[{"title":"320x86x52 · Block","url":"\/products\/bridgestone-320x86bx52-staggered-block","image":"","group":"tracks","variant_id":"52663271620920","available":true,"qty":2},{"title":"400x86x52 · Block","url":"\/products\/bridgestone-400x86bx52-staggered-block","image":"","group":"tracks","variant_id":"52663276634424","available":true,"qty":2},{"title":"13\" Heavy Duty Block CTL Rubber Tracks (320x86x52)","url":"\/products\/heavy-duty-320x86x52-block","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/320x86x52-staggered-block-ctl-rubber-track-01-hero.webp?v=1790640347\u0026width=112","group":"tracks","variant_id":"52307283444024","available":true,"qty":2},{"title":"15\" Heavy Duty Block CTL Rubber Tracks (380x86x52)","url":"\/products\/heavy-duty-380x86x52-block","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/380x86x52-staggered-block-rubber-track-01-hero.webp?v=1790640336\u0026width=112","group":"tracks","variant_id":"52307282886968","available":true,"qty":2},{"title":"16\" Heavy Duty Block CTL Rubber Tracks (400x86x52)","url":"\/products\/heavy-duty-400x86x52-block","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/400x86x52-staggered-block-ctl-rubber-track-01-hero.png?v=1791318147\u0026width=112","group":"tracks","variant_id":"53088873906488","available":true,"qty":2},{"title":"16\" Heavy Duty Z-Max CTL Rubber Tracks (400x86x52)","url":"\/products\/heavy-duty-400x86x52-z-max","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/400x86x52-z-max-ctl-rubber-track-01-hero.webp?v=1790630794\u0026width=112","group":"tracks","variant_id":"52301993902392","available":true,"qty":2},{"title":"13\" Heavy Duty Z-Max CTL Rubber Tracks (320x86x52)","url":"\/products\/heavy-duty-320x86x52-z-max","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/320x86x52-z-max-ctl-rubber-track-01-hero.webp?v=1790640489\u0026width=112","group":"tracks","variant_id":"52792814797112","available":false,"qty":2},{"title":"16\" Heavy Duty C-Block CTL Rubber Tracks (400x86x52)","url":"\/products\/heavy-duty-400x86x52-c-block","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/400x86x52-c-block-ctl-rubber-track-01-hero.webp?v=1790631260\u0026width=112","group":"tracks","variant_id":"52360701149496","available":true,"qty":2},{"title":"320x86x52 Bridgestone Rubber Track | C-Block","url":"\/products\/bridgestone-320x86bx52-c-block","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/bs3208652cxd-extra-1-v1.webp?v=1790617411\u0026width=112","group":"tracks","variant_id":"52663272636728","available":true,"qty":2},{"title":"13\" Heavy Duty C-Block CTL Rubber Tracks (320x86x52)","url":"\/products\/heavy-duty-320x86x52-c-block","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/320x86x52-c-block-ctl-rubber-track-01-hero.webp?v=1790631227\u0026width=112","group":"tracks","variant_id":"52360700723512","available":true,"qty":2},{"title":"320x86x52 Bridgestone Rubber Track | Vortech","url":"\/products\/bridgestone-320x86bx52-vortech","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/bs3208652vxd-extra-1-v1.webp?v=1790617438\u0026width=112","group":"tracks","variant_id":"52663273095480","available":true,"qty":2},{"title":"16\" Heavy Duty Zig-Zag CTL Rubber Tracks (400x86x52)","url":"\/products\/heavy-duty-400x86x52-zig-zag","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/400x86x52-zig-zag-ctl-rubber-track-01-hero.webp?v=1790631241\u0026width=112","group":"tracks","variant_id":"52360700690744","available":true,"qty":2},{"title":"13\" Heavy Duty Zig-Zag CTL Rubber Tracks (320x86x52)","url":"\/products\/heavy-duty-320x86x52-zig-zag","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/320x86x52-zig-zag-ctl-rubber-track-01-hero_11142353-0036-48ec-bb2c-4ef0ac931981.webp?v=1790631252\u0026width=112","group":"tracks","variant_id":"52360700756280","available":true,"qty":2},{"title":"16\" Heavy Duty Multi-Bar CTL Rubber Tracks (400x86x52)","url":"\/products\/heavy-duty-400x86x52-multi-bar","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/400x86x52-multi-bar-rubber-track-01-hero.webp?v=1790631274\u0026width=112","group":"tracks","variant_id":"52360701477176","available":true,"qty":2},{"title":"320x86x52 Bridgestone Rubber Track | Multi-Bar","url":"\/products\/bridgestone-320x86bx52-multi-bar","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/bs3208652mbxd-extra-1-v1.webp?v=1790617419\u0026width=112","group":"tracks","variant_id":"52663272767800","available":true,"qty":2},{"title":"400x86x52 Bridgestone Rubber Track | Multi-Bar","url":"\/products\/bridgestone-400x86bx52-multi-bar","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/bs4008652xdmb-extra-1-v1.webp?v=1790617638\u0026width=112","group":"tracks","variant_id":"52663276831032","available":false,"qty":2},{"title":"15\" Heavy Duty Multi-Bar CTL Rubber Tracks (380x86x52)","url":"\/products\/heavy-duty-380x86bx52-multi-bar","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/tnt3808652hdmb-extra-3-v1.webp?v=1790619859\u0026width=112","group":"tracks","variant_id":"52840374829368","available":true,"qty":2},{"title":"13\" Heavy Duty Multi-Bar CTL Rubber Tracks (320x86x52)","url":"\/products\/heavy-duty-320x86x52-multi-bar","image":"\/\/newrubbertrack.com\/cdn\/shop\/files\/320x86x52-multi-bar-ctl-rubber-track-01-hero.webp?v=1790631197\u0026width=112","group":"tracks","variant_id":"52360700166456","available":true,"qty":2}]}
Real Kubota SVL65-2 Track Installs
Upgrade your equipment with confidence. Proven and trusted by contractors nationwide—click any jobsite photo below to shop the exact tread pattern your machine demands.
Shop verified-fit rubber tracks and undercarriage parts for the Kubota SVL65-2 compact track loader. Merchant-confirmed sizes on this hub: 320 x 86B x 52, 380 x 86B x 52, 400 x 86B x 52. Available tread families include All Terrain, Block, C-Block, Multi-Bar, Vortech, Z-Max, Zig-Zag. When more than one size applies, match the undercarriage configuration rather than guessing from model alone.
Frequently Asked Questions
What size rubber tracks fit a Kubota SVL65-2?
The Kubota SVL65-2 can use 320 x 86 x 52, 380 x 86 x 52 or 400 x 86 x 52 rubber tracks. Match the full size on the track you are replacing before you order. If your machine has more than one track setup, choose the width and guide style that matches the track currently on the machine.
Which tread patterns are available for the Kubota SVL65-2?
Once the size is confirmed, choose the tread for the work the machine actually does.
This Kubota SVL65-2 page currently includes All-Terrain, Block, C-Block, Multi-Bar, Vortech, Z-Max and Zig-Zag. Use the tread pattern guide to compare traction, ride, cleanout, and wear before choosing a pattern.
Does TrackTECH carry undercarriage parts for the Kubota SVL65-2?

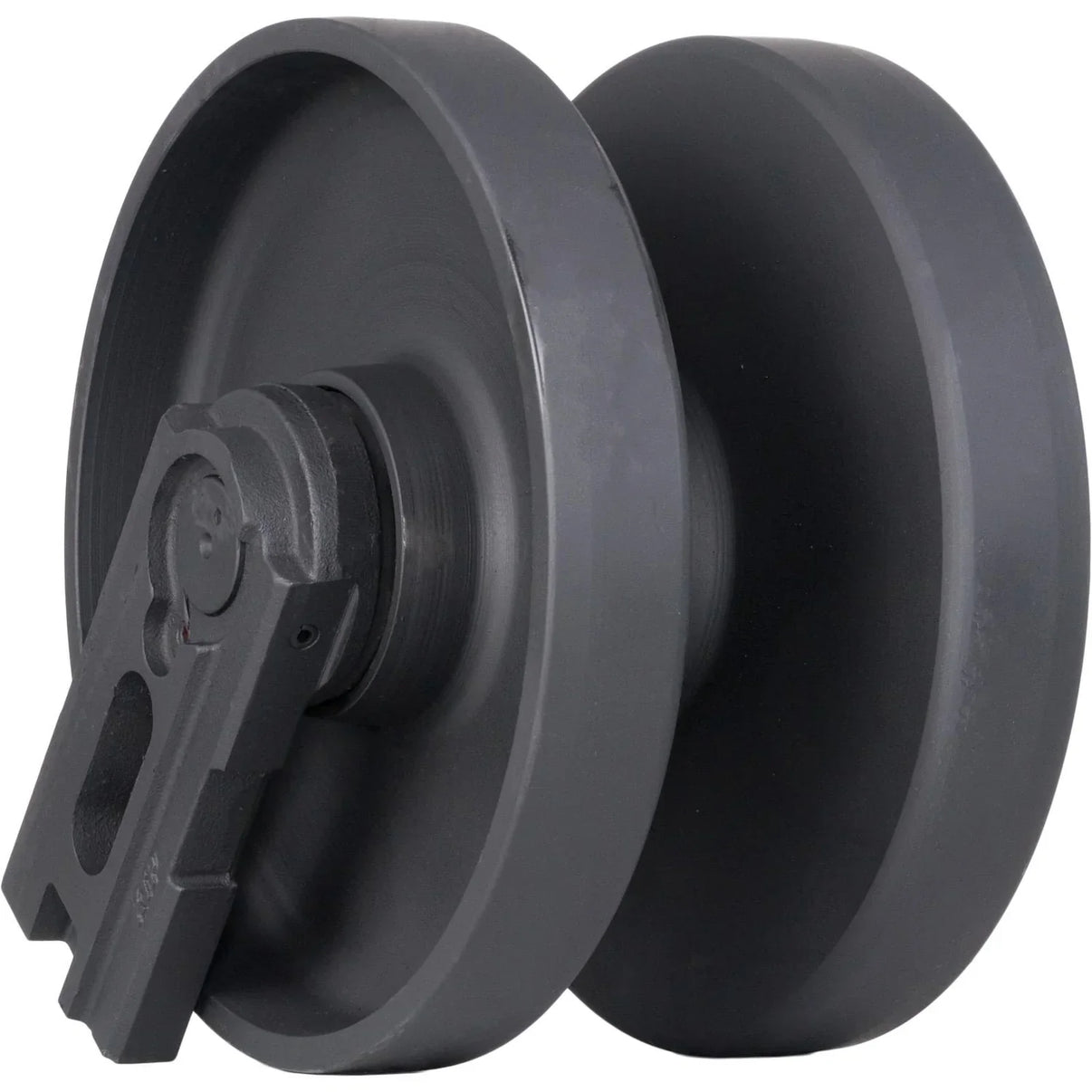

Yes. When a matched part is available, this Kubota SVL65-2 hub can show the drive sprocket, front or rear idlers, and rollers alongside the tracks. If you're replacing tracks, inspect the undercarriage at the same time—worn sprockets or rollers can shorten the life of a new set. You can also browse undercarriage parts.
Do Kubota SVL65-2 tracks ship free?
Qualifying in-stock rubber track orders ship free by LTL to the lower 48. Same-day dispatch is available on qualifying in-stock orders placed before 12 PM CT; the actual delivery window depends on the exact item and ZIP code. See the shipping policy for details.
What warranty applies to TrackTECH rubber tracks?
TrackTECH rubber tracks on this hub are covered by the published 24-month / 1,500-hour warranty. Keep your proof of purchase and make sure fitment is confirmed before installation. See the warranty terms for coverage and claim requirements.
