Technical Dimensions
| Part # | 06816-00009 |
|---|---|
| Tooth Count | 15 |
| Bolt Hole Count | 9 |
| Auxiliary Holes | |
| Outside Diameter | |
| Inside Diameter | |
| Dish Depth | |
| Flange Diameter | |
| Drive Configuration | |
| Mount Configuration | |
| Stamped Part # | |
| Pitch | |
| Weight | 39.0 lbs |

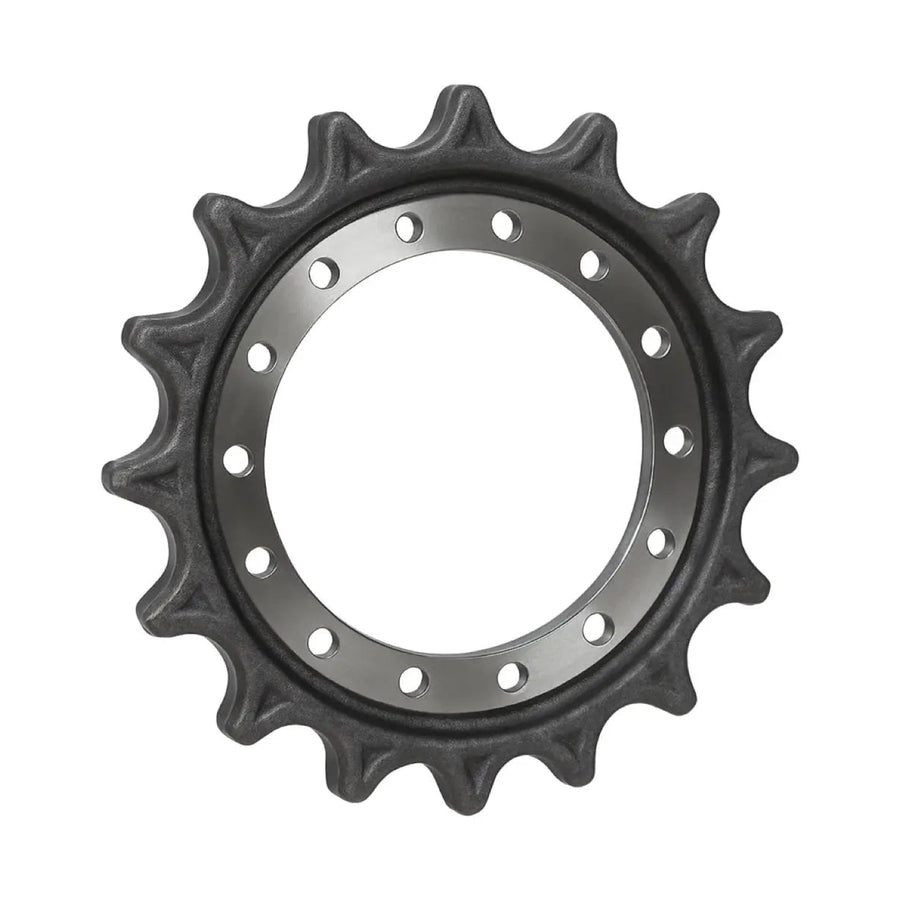

Takeuchi TL10V2 Sprocket | Part #06816-00009
Regular Price
$371.25
x 1
PRODUCT SPECIFICATIONS
Construction & Features
| Durability | Heavy duty only |
|---|---|
| Fitment | OEM-reference match |
| Construction | Drop forged steel |
| Finish | Heat-treated hardening |
Fitment Table
| Takeuchi | TL10V2 |
|---|
Frequently Asked Questions
Fitment, availability, fulfillment, and support for this product
What drive sprocket fits the Takeuchi TL10V2?
This drive sprocket is listed for the Takeuchi TL10V2 and matches OEM Part #06816-00009. Before ordering, compare your machine make, model, serial number, and existing part number to confirm the correct undercarriage position and fitment.
What bottom rollers fit the Takeuchi TL10V2?
Matching bottom roller or track roller options for the Takeuchi TL10V2 include Takeuchi TL10V2 Track Roller | Part #06813-00027. Replacing worn rollers before installing new rubber tracks helps keep the undercarriage aligned and reduces uneven wear across the track carcass.
What front idler fits the Takeuchi TL10V2?
Matching front idler options for the Takeuchi TL10V2 include Takeuchi TL10V2 Front Idler | Part #06814-00019. Front idlers guide the track and help maintain proper tension, so inspect the flange, bearing condition, and wear surface before installing new tracks.
What rear idler fits the Takeuchi TL10V2?
Matching rear idler options for the Takeuchi TL10V2 include Takeuchi TL10V2 Rear Idler | Part #06813-00024. A worn rear idler can contribute to poor track alignment, derailment, and premature edge wear, especially after new rubber tracks are installed.
What rubber tracks pair with this drive sprockets?
Matching rubber track options connected to this Takeuchi TL10V2 undercarriage setup include Takeuchi TL10V2 Rubber Tracks (Part #380X86BX52). If you are replacing this part, inspect the full undercarriage so the new component and rubber tracks wear evenly together.
Should I inspect the full undercarriage before replacing this Takeuchi TL10V2 part?
Yes. Sprockets, idlers, rollers, and rubber tracks wear together as a system. Before replacing this part for the Takeuchi TL10V2, inspect the full undercarriage for uneven wear, bearing play, hooked sprocket teeth, and track tension issues.
How do I confirm this product fits the Takeuchi TL10V2?
Confirm fitment by checking your machine make, model, serial number, and existing track size or OEM part number. For rubber tracks, verify width, pitch, and link count. For undercarriage parts, compare the part number, bolt pattern, tooth count, and machine position. You can also use the TrackTECH Track Finder or call (850) 816-7898 before ordering.
How fast does TrackTECH ship Takeuchi TL10V2 parts?
TrackTECH ships rubber tracks and undercarriage parts quickly across the Lower 48. Heavy items typically ship by freight, while smaller undercarriage parts may ship by parcel depending on warehouse availability. Review TrackTECH shipping information or contact us before ordering if you need priority freight options.
