The Takeuchi TB240 undercarriage should be treated as a system: rubber track, sprocket, idlers, rollers, tensioner and frame alignment all affect each other. This guide maps the currently cataloged TrackTECH components and the checks that matter before you install new rubber.
Shop Takeuchi TB240 tracks & undercarriage
Cataloged track size: 350x52.5Wx86
Takeuchi TB240 undercarriage part numbers
| Component | Current catalog reference |
|---|---|
| Drive sprocket | 03516-08210 |
| Front idler | 03714-00000 |
| Bottom roller | 04313-11100 |
| Carrier roller | 03712-00100 |
How to decide what actually needs replacement
Do not replace every wear part by calendar. Inspect by condition and use the machine manufacturer's wear/service limits. The most important warning signs are hooked sprocket teeth, leaking or seized rollers, idler play, damaged flanges, a tensioner that will not hold adjustment and repeated track alignment problems.
What the old track tells you
- Torn drive lugs: inspect sprocket engagement, pitch/guide fitment and tension.
- One-sided guide wear: inspect idler/roller alignment and frame contact.
- Flat or polished belt sections: check for seized rollers.
- Repeated de-tracking: inspect tension, idler play, guides and frame alignment.
- Accelerated cracking after replacement: check over-tension, debris and worn drive components.

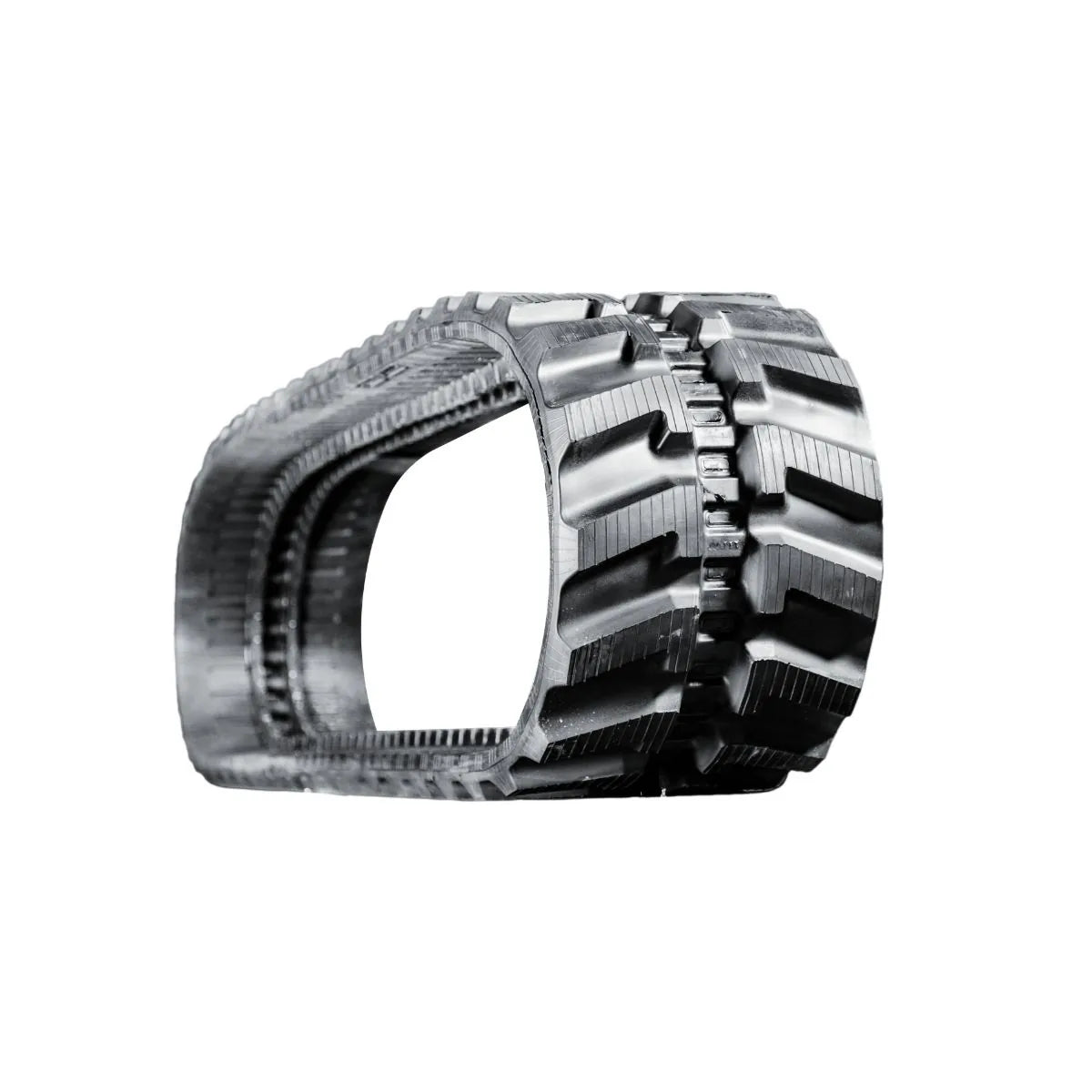

Track fitment for the TB240
The current TrackTECH machine collection lists 350x52.5Wx86. If more than one width or configuration is present, verify what is installed before changing it. A matching pitch and link count does not automatically make a different width or guide family interchangeable.
Shop the complete machine collection
Use the live Takeuchi TB240 Tracks & Parts page for current inventory, product images and pricing. For a wider diagnosis workflow, see How to Inspect a CTL Undercarriage Before Installing New Tracks.
