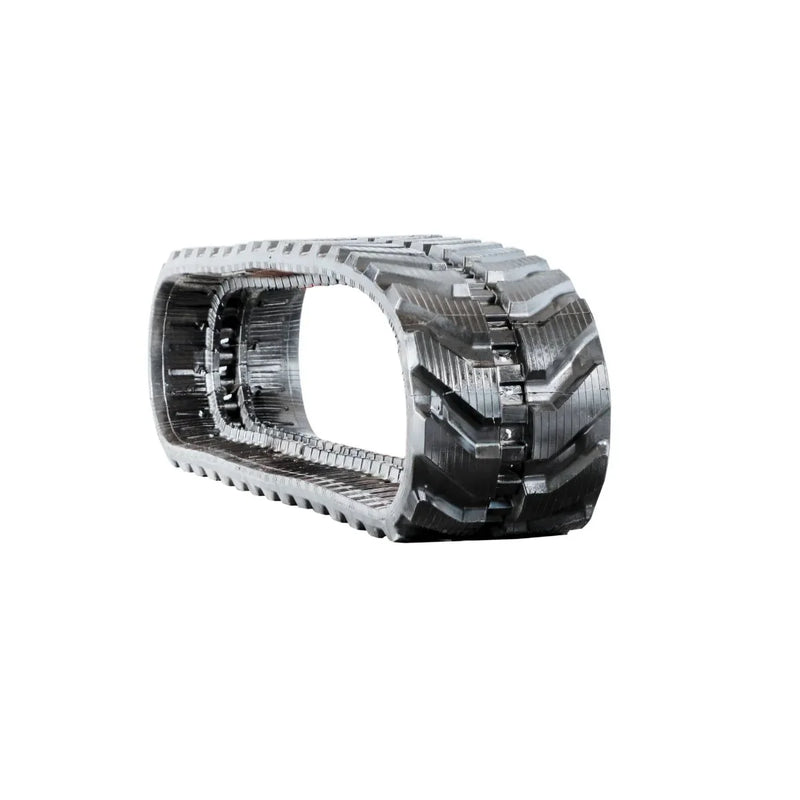

Kubota U30-3 Rubber Tracks

The Kubota U30-3 runs a 300x52.5Wx84 track: 300 mm across the tread, 52.5 mm between links, 84 links around. Cut for digging, trenching, backfill and tight-quarters work and shipped free to the lower 48.

What the numbers mean on a Kubota U30-3

  • 300x52.5Wx84 — 300 mm tread width (about 12"), 52.5 mm pitch, 84 links, wide guide lugs

Width is the tread face, pitch is the distance between drive lugs, and links is the count around the loop. All three have to match — a track one link off will not tension correctly no matter how close the width is.

Tread choice for the Kubota U30-3

Size gets the track on the machine; tread decides how it works and how long it lasts. What we stock for this one:

  • Staggered Block — mixed dirt and gravel. Block stability with better cleanout than a straight block

Undercarriage parts for the Kubota U30-3

Rollers, idlers and sprockets wear on the same clock as the track. Fitting new rubber over a hooked sprocket or a seized roller is the fastest way to lose the new track — check these while the tracks are off:

Where more than one part number is listed, Kubota changed that component across serial ranges. Match the number stamped on the part you are replacing, or send us the machine serial and we will pick it.

How these wear

Excavator undercarriages load one side hard on slew and travel, so link cracking usually shows up before the tread wears out. Replace in pairs where you can: a new track running against a stretched one loads the drive unevenly and you will feel it in the steering.

Same track, other machines

Track size follows undercarriage geometry, not brand, so 300x52.5Wx84 shows up on machines from several makers. If you run any of these alongside the Kubota U30-3, it is the same belt:

Not sure which you are running? Read the size off the inside of the old track, or call (850) 816-7898 and we will pull it off the machine record. The Track Finder works by make and model too.

More Kubota undercarriage

Free US Shipping100% Fit GuaranteePremium OEM Quality

Shop Parts

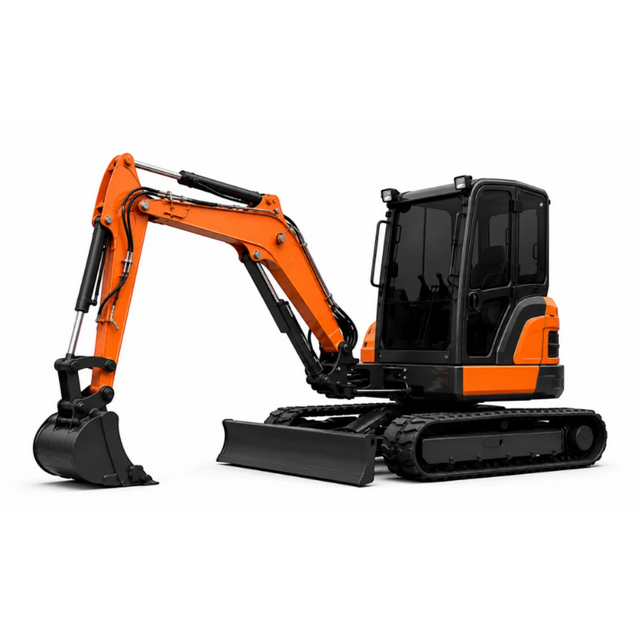

Kubota U30-3 mini excavator

Track sizes

Heavy-Duty Rubber Tracks for U30-3

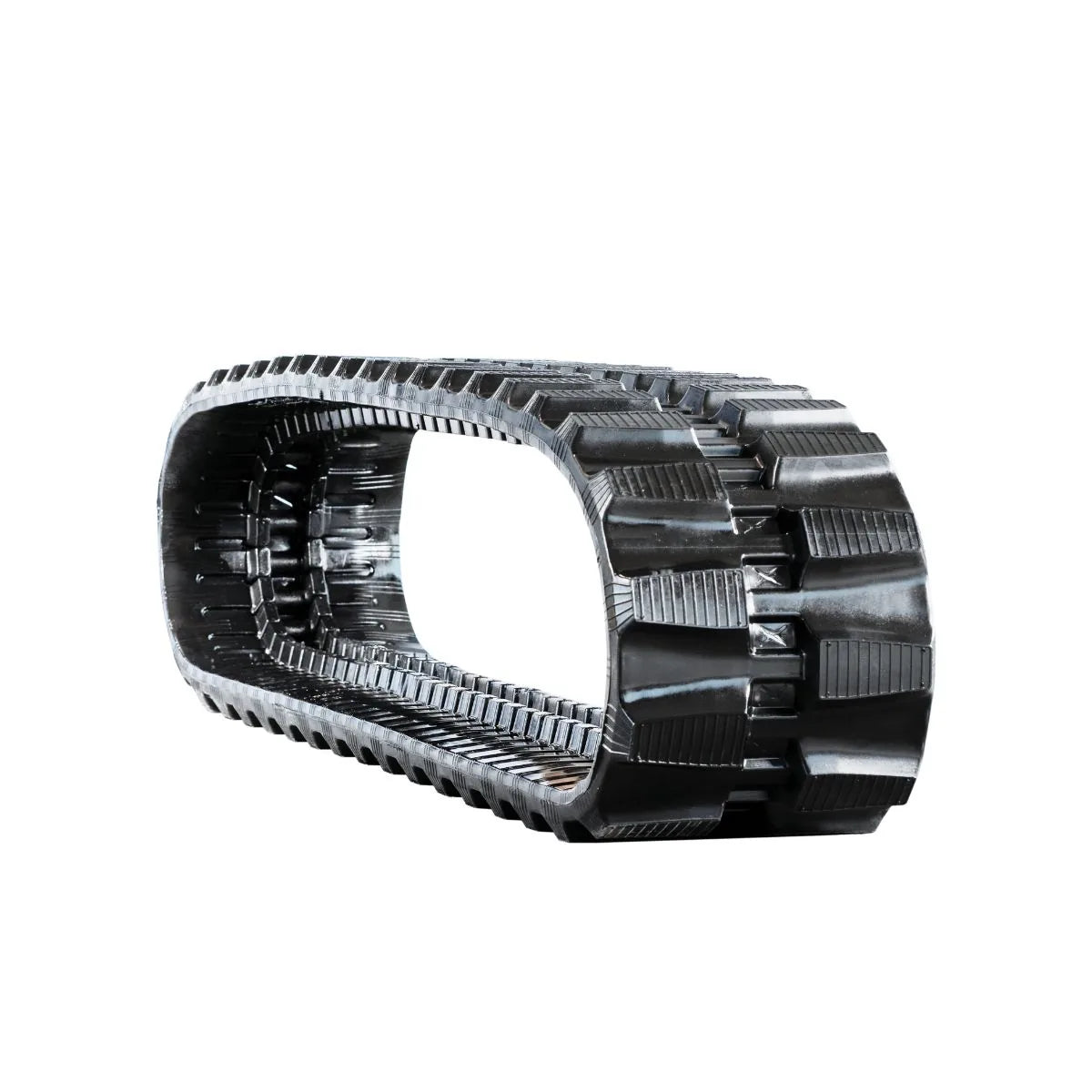

  • 300x52.5Wx84 Block Rubber Track
    Kubota U30-3 300x52.5Wx84 300x52.5Wx84
    • Heavy Duty | 300x52.5Wx84
    $1,149.00$999.00

    In stock

    Add to quote

  • 100% Virgin Rubber

    Engineered to resist chunking, tearing, and cutting in harsh, abrasive environments.

  • Continuous Steel Cords

    Jointless internal cable architecture eliminates structural weak points and maximizes overall tensile strength.

  • Drop-Forged Links

    Precision heat-treated guide lugs ensure exact sprocket engagement and prevent de-tracking under heavy side-loads.

  • Corrosion Resistant

    The internal steel framework is fully encapsulated to prevent oxidation, rust, and moisture penetration.

  • Reinforced Sidewalls

    Extra-thick vulcanized rubber and tapered edge profiles protect against curb slashing and lateral impacts from jobsite debris.

  • Low-Vibration Tread

    Optimized lug spacing and pitch geometry absorb shock, reducing undercarriage wear and minimizing cabin vibration.

Kubota U30-3 fitment data

Frequently Asked Questions

Common fitment, shipping, and rubber track replacement questions

What rubber tracks are compatible with the Kubota U30-3?
The Kubota U30-3 is cataloged with 300x52.5Wx84 rubber tracks in the current TrackTECH storefront data. The size format is width × pitch × links.
What are the best rubber tracks for the Kubota U30-3?
The best Kubota U30-3 track depends on terrain and application. Current tread choices include Block — general construction, dirt, hard surfaces, mud, rip rap and mixed jobsites. Compare traction, ride quality, cleanout, ground disturbance and wear for the work you do most.
Where can I buy new tracks for a Kubota U30-3?
TrackTECH offers new heavy-duty replacement tracks for the Kubota U30-3 with low direct pricing, free shipping, fast nationwide delivery and 24-month rubber-track warranty protection. Current prices and available tread options are shown on the page.
How much do Kubota U30-3 rubber tracks cost?
Price depends on track size, tread pattern and whether you are replacing one track or a pair. Compare the current Kubota U30-3 options and live pricing on TrackTECH rather than relying on a generic model estimate.
Should I replace worn tracks on a used Kubota U30-3?
If a used Kubota U30-3 has worn, cracked or damaged tracks, replacement can improve traction, ride quality, job readiness and how the machine presents at resale. Inspect the undercarriage condition at the same time so new tracks are not being installed over obviously worn components.
Can I buy undercarriage parts for the Kubota U30-3?
Yes. The current TrackTECH machine record lists these available part families for the Kubota U30-3: Tracks, Idlers, Rollers. Availability and pricing are shown with the corresponding products.
