Technical Dimensions
| Part # | 02616-03100 |
|---|---|
| Tooth Count | 19 |
| Bolt Hole Count | 9 |
| Auxiliary Holes | |
| Outside Diameter | |
| Inside Diameter | |
| Dish Depth | |
| Flange Diameter | |
| Drive Configuration | |
| Mount Configuration | |
| Stamped Part # | |
| Pitch | |
| Weight | 32.0 lbs |

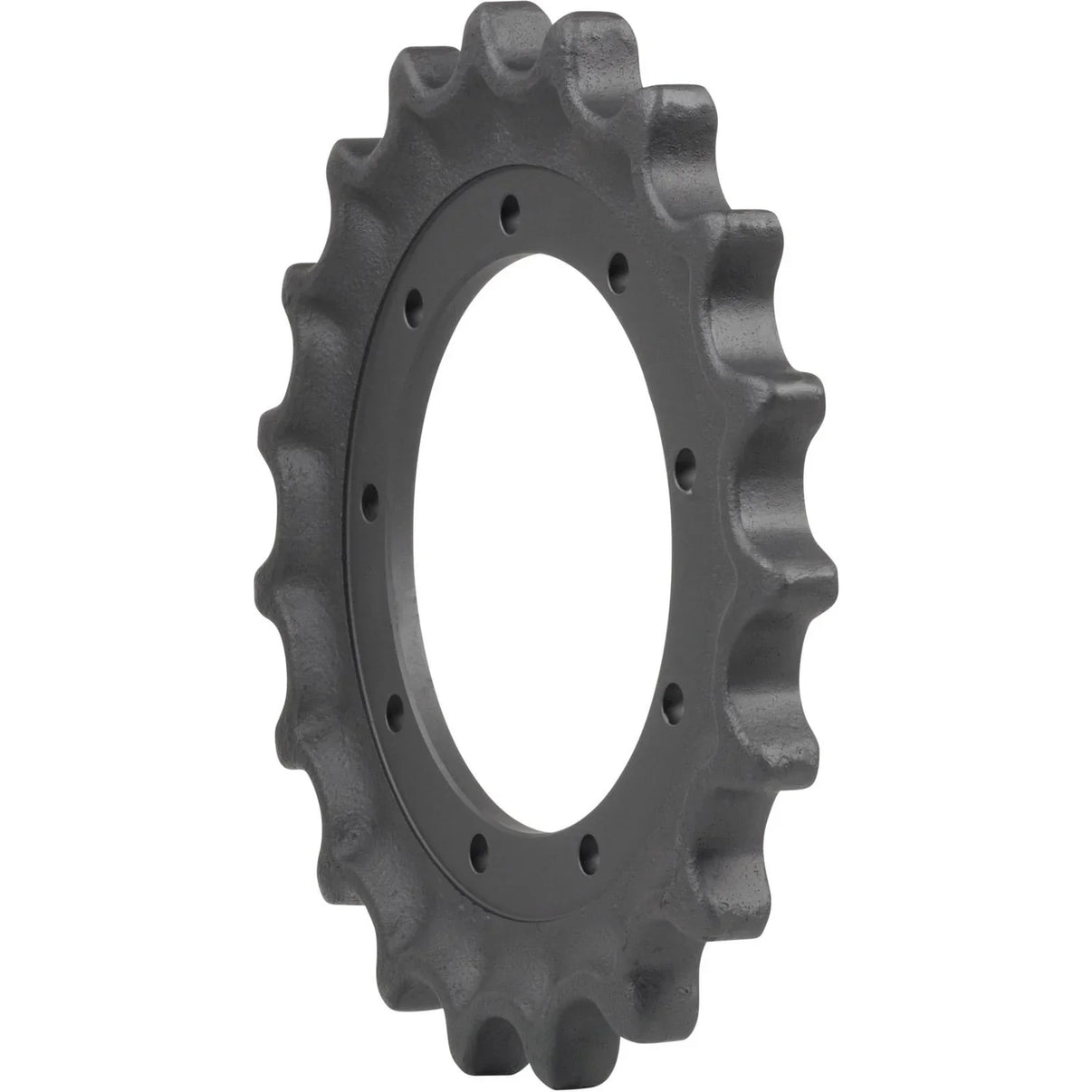

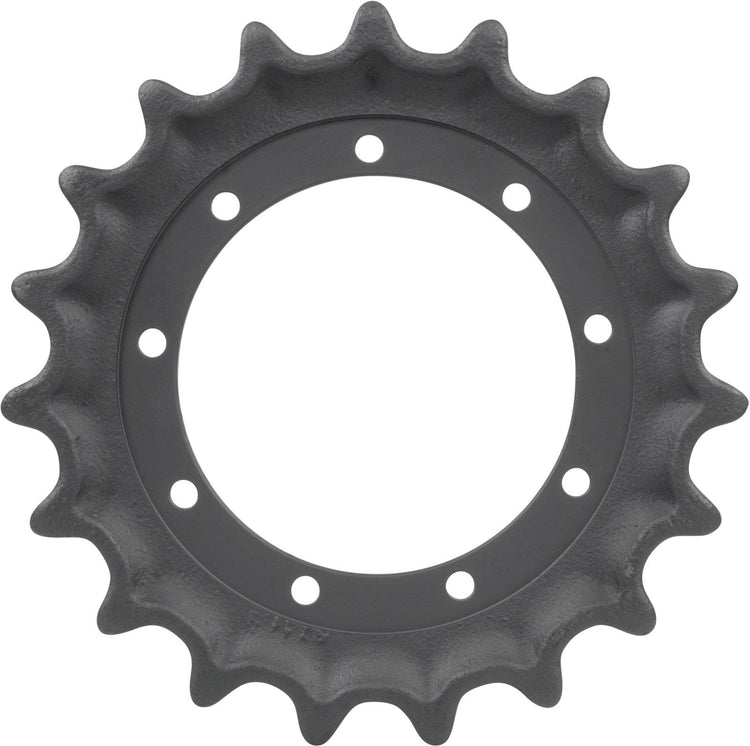

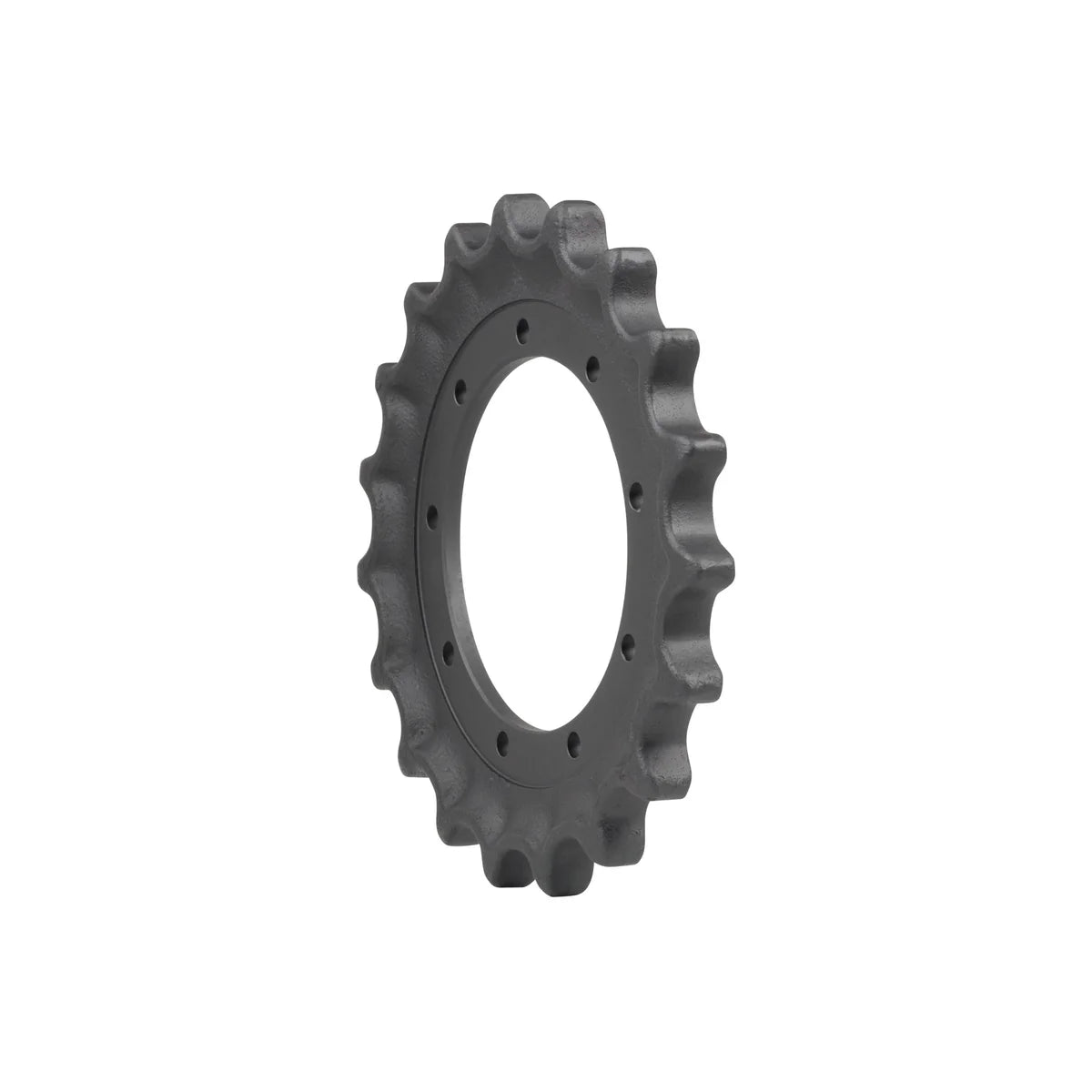

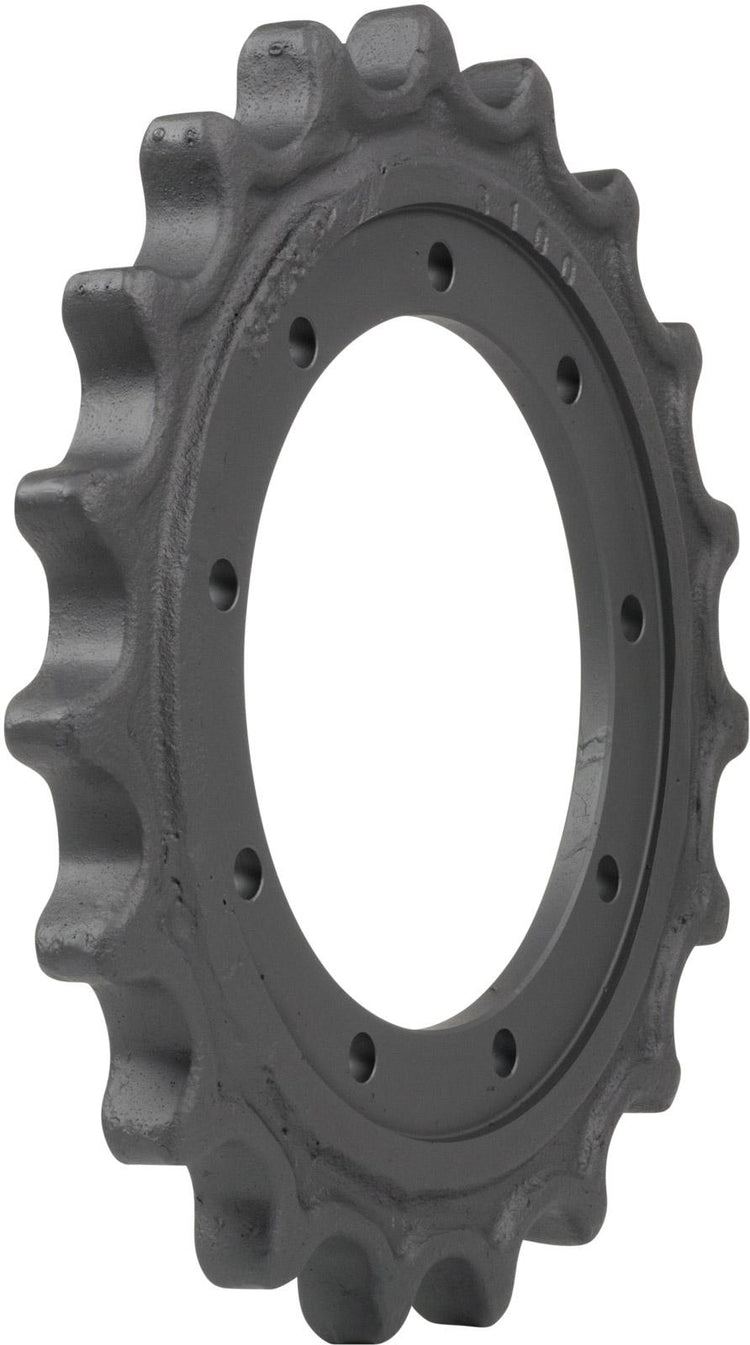

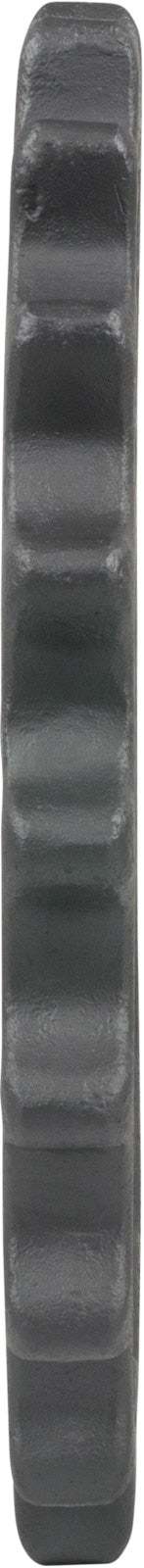

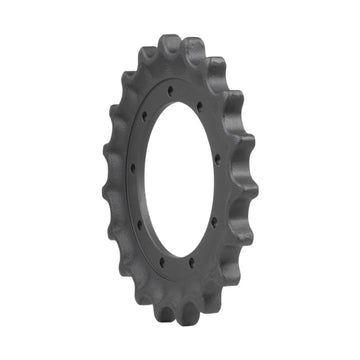

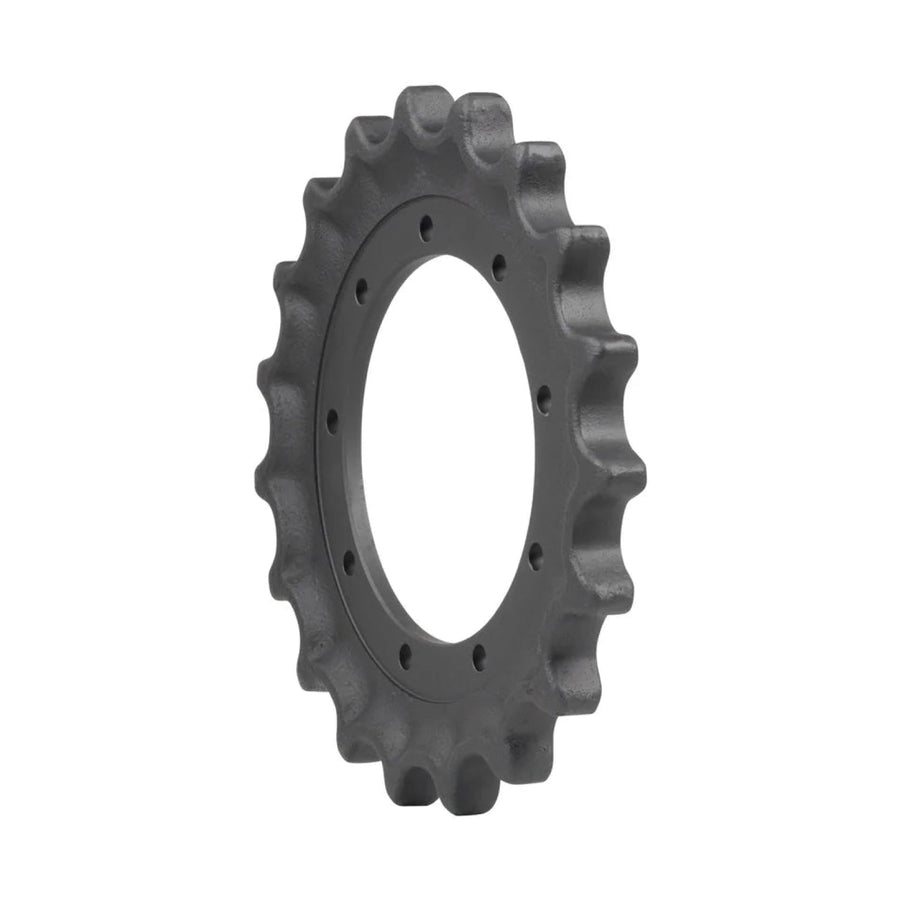

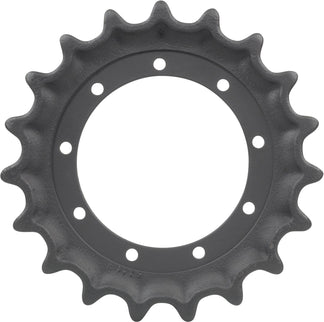

Takeuchi TB53FR Sprocket | Part #02616-03100
Regular Price
$288.75
x 1
PRODUCT SPECIFICATIONS
Construction & Features
| Durability | Heavy duty only |
|---|---|
| Fitment | OEM-reference match |
| Construction | Drop forged steel |
| Finish | Heat-treated hardening |
Fitment Table
| Takeuchi | TB53FR |
|---|
Frequently Asked Questions
Fitment, availability, fulfillment, and support for this product
What drive sprocket fits the Takeuchi TB53FR?
This drive sprocket is listed for the Takeuchi TB53FR and matches OEM Part #02616-03100. Before ordering, compare your machine make, model, serial number, and existing part number to confirm the correct undercarriage position and fitment.
What bottom rollers fit the Takeuchi TB53FR?
Matching bottom roller or track roller options for the Takeuchi TB53FR include Takeuchi TB53FR Track Roller | Part #03913-02100. Replacing worn rollers before installing new rubber tracks helps keep the undercarriage aligned and reduces uneven wear across the track carcass.
What front idler fits the Takeuchi TB53FR?
Matching front idler options for the Takeuchi TB53FR include Takeuchi TB53FR Front Idler | Part #FI04614-90010 (Part #04614-90010). Front idlers guide the track and help maintain proper tension, so inspect the flange, bearing condition, and wear surface before installing new tracks.
What top roller fits the Takeuchi TB53FR?
Matching top roller options for the Takeuchi TB53FR include Takeuchi TB53FR Carrier Roller | Part #03912-00100. Top rollers support the upper track path and should be checked for bearing play, flat spots, and uneven wear during undercarriage service.
Should I inspect the full undercarriage before replacing this Takeuchi TB53FR part?
Yes. Sprockets, idlers, rollers, and rubber tracks wear together as a system. Before replacing this part for the Takeuchi TB53FR, inspect the full undercarriage for uneven wear, bearing play, hooked sprocket teeth, and track tension issues.
How do I confirm this product fits the Takeuchi TB53FR?
Confirm fitment by checking your machine make, model, serial number, and existing track size or OEM part number. For rubber tracks, verify width, pitch, and link count. For undercarriage parts, compare the part number, bolt pattern, tooth count, and machine position. You can also use the TrackTECH Track Finder or call (850) 816-7898 before ordering.
How fast does TrackTECH ship Takeuchi TB53FR parts?
TrackTECH ships rubber tracks and undercarriage parts quickly across the Lower 48. Heavy items typically ship by freight, while smaller undercarriage parts may ship by parcel depending on warehouse availability. Review TrackTECH shipping information or contact us before ordering if you need priority freight options.
What machines is this sprocket listed for?
Current compatible equipment listed in the TrackTECH catalog includes Takeuchi TB53FR.
