Correct rubber-track tension is machine-specific. The goal is to keep the track engaged and tracking correctly without overloading the rubber belt, idlers, rollers, bearings, or tensioning system. Use this guide to understand the process, then use the operator or service manual for the exact measurement point, target deflection, and adjustment method on your machine.
Before You Adjust Anything
- Park on stable, level ground.
- Lower attachments and follow the machine manufacturer's shutdown and support procedure.
- Keep hands and tools away from pinch points and unsupported raised equipment.
- Identify the tensioner, grease fitting, relief mechanism, and the specified measurement location from the manual.
1. Clean the Undercarriage First
Packed mud, stone, ice, and debris can change effective tension and make a correct measurement impossible. Clean the track path, sprocket, idlers, and rollers before checking deflection.
2. Position the Track as the Manufacturer Specifies
Some procedures require the machine to be driven a short distance, lifted, or positioned in a specific way before measurement. Do not assume the measurement point is the midpoint between two components; follow the exact diagram for your machine.
3. Measure Tension or Sag
Measure at the specified location and compare the result to the model-specific specification. Do not use a universal 1-inch, 1.5-inch, or 2-inch target across CAT, Bobcat, Kubota, Deere, Takeuchi, or mini excavators.
4. Tighten Only in Small Increments

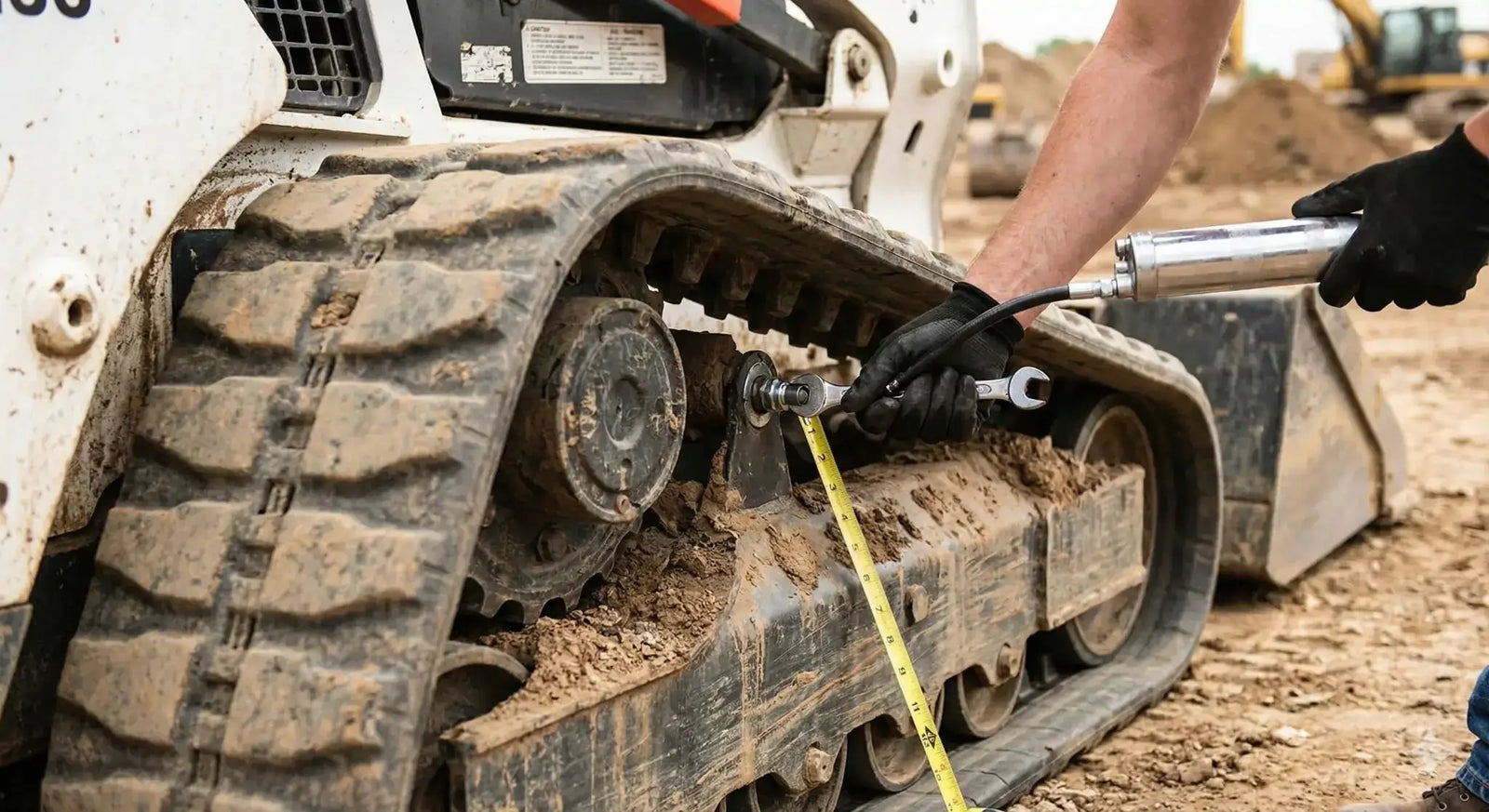

Many tracked machines use grease pressure to move the idler and increase tension. If your machine uses this design, add the specified grease slowly and re-measure frequently. Stop as soon as the track is within specification.
5. Releasing Tension Requires the Exact Machine Procedure
Grease-type tensioners can store substantial pressure. The relief mechanism and safe release procedure vary by machine. Do not improvise with the grease fitting or assume every relief valve works the same way. Follow the service procedure and keep your body clear of the possible grease-discharge path.
6. Recheck After Operation
After installing a new track or making an adjustment, operate the machine according to the service procedure and recheck tension. New tracks and freshly cleaned undercarriages can settle differently after a short run.
Signs Tension May Be Wrong
- Repeated de-tracking or poor sprocket engagement
- Abnormal guide or edge wear
- Unusual resistance, noise, or heat
- Track sag or tension changing quickly after adjustment
- One side behaving differently from the other
If tension will not stay within specification, inspect the tensioner, idler, sprocket, rollers, and track itself rather than repeatedly adding grease. See our rubber-track maintenance guide for the broader inspection checklist.
