Rubber track sizing can get confusing fast. Two track sizes can look completely different on paper and still calculate to the same nominal loop length. That can be useful when comparing supplier catalogs, checking a size conversion, or identifying a possible long-pitch/short-pitch family.
But there is an important rule: same calculated length does not automatically mean same fitment.
How a rubber track size is written

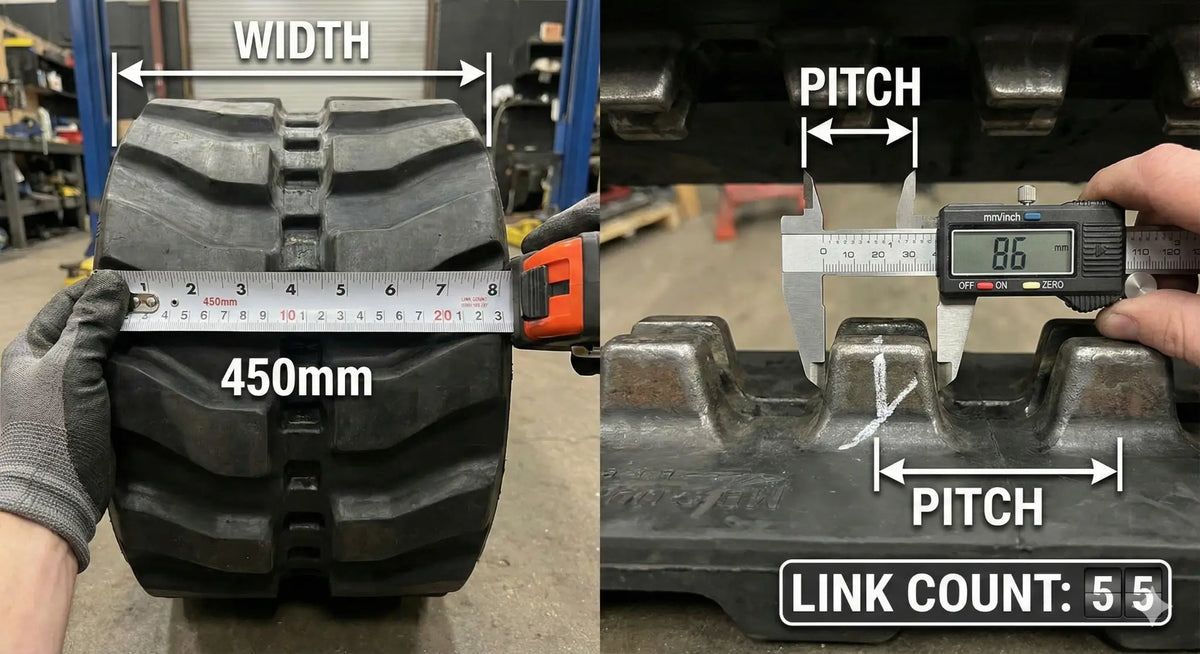

A common rubber track size looks like this:
230 × 96 × 42
- 230 mm = track width
- 96 mm = pitch
- 42 = number of drive links
Pitch is measured from the center of one internal drive link to the center of the next. Link count is the number of drive links around the track.
The useful track-size formula
A quick technical check is:
Pitch × Links = nominal pitch-line length
This is not the exact outside circumference of the rubber track. It is a useful comparison measurement based on the spacing and number of drive links.
For example:
- 230 × 96 × 42: 96 × 42 = 4,032 mm
- 230 × 48 × 84: 48 × 84 = 4,032 mm
Both examples are 230 mm wide and have the same calculated pitch-line length. That tells us they belong in the same conversation when checking possible size relationships. It does not, by itself, prove that both tracks fit the same machine.
Why equal-length tracks may not interchange
The drive sprocket and internal guide system matter just as much as the overall track length. A correct replacement track has to engage the machine’s undercarriage properly.
Fitment can depend on:
- Drive sprocket tooth spacing and geometry
- Track pitch
- Internal drive-link design
- Guide width, height and spacing
- Undercarriage configuration
- Machine serial-number breaks
- Manufacturer-specific track construction
Some machines have verified long-pitch and short-pitch track options that are interchangeable. Other machines use a specific pitch or guide system and cannot safely use the mathematical counterpart. The machine application has to be verified before treating two sizes as interchangeable.
What do N, W, K and other guide letters mean?
You may see track sizes written with guide designations such as N, W, K or other letters. These designations help distinguish internal guide or drive configurations used by different manufacturers and suppliers.
That means two listings that both say something like 300 × 52.5 × 84 can still require additional verification if one is listed as an N guide and another as a W guide.
The guide designation should not be ignored just because the width, pitch and link count look similar.
When pitch × links is useful
The calculation is extremely useful as a secondary check. We use it to help:
- Compare differently formatted supplier track sizes
- Identify likely long-pitch and short-pitch size families
- Normalize pricing and catalog data
- Spot possible size-entry errors
- Understand why two track sizes may have similar overall dimensions
For catalog and pricing work, two sizes with the same width and the same pitch × link result may be reasonable candidates for the same pricing family. For actual machine fitment, that relationship still needs to be verified against the machine and undercarriage.
A simple rule to remember
Use pitch × links as a clue, not a fitment guarantee.
If two tracks have the same width and the same calculated pitch-line length, look closer. Then verify the pitch type, guide system, sprocket compatibility and exact machine application before ordering.
Need help confirming your rubber track size?
Send us your equipment make and model along with the size stamped on your current track when available. We’ll help verify the correct replacement track before you order.
